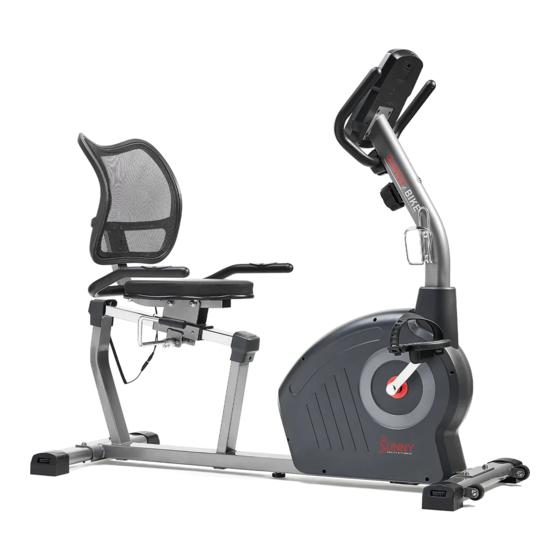

ELITE INTERACTIVE SERIES
EXERCISE RECUMBENT BIKE
SF-RB420046
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Related Manuals for Sunny SF-RB420046
Summary of Contents for Sunny SF-RB420046
- Page 1 ELITE INTERACTIVE SERIES EXERCISE RECUMBENT BIKE SF-RB420046 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
- Page 2 IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
- Page 3 EXPLODED DIAGRAM 1...
- Page 4 EXPLODED DIAGRAM 2...
- Page 5 PARTS LIST Description Spec. Description Spec. Main Frame Handle Pulse Wire L=750mm Ф12.1 Front Stabilizer Plug Rear Stabilizer Screw ST4.2*20 Φ25 Front Post End Cap Front Handlebar Bolt M8*45 Rear Handlebar Cap Nut Sliding Rail Bolt M8*40 Ф8 Seat Adjusting Tube Spring Washer Seat Support Bracket Square End Cap...
- Page 6 PARTS LIST Description Spec. Description Spec. Ф24*Ф30*360 Foam Grip Magnetic Bracket Tension Control L=420mm Magnet Seat Knob Tension Control Wire Magnet 40*25*10 Ф5*Ф18*1.0 Big Arc Washer Screw ST2.9*9 Ф15*50*Ф1.5 Bolt M5*55 Spring Screw ST4.2*16 Bolt M6*45 Shipping Tube Cover Limit Column Bolt M6*10 Φ17*1...
- Page 7 HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓...
- Page 8 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Unscrew 4 Screws (No. 11) from Main Frame (No. 1) with Allen Wrench (No.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Align Left Pedal (No. 48) with Left Crank (No. 80) at 90° and gently insert pedal into the crank arm.
- Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Remove 6 Bolts (No. 11), 4 Washers (No. 10) and 2 Big Arc Washers (No. 113) from the Main Frame (No.
- Page 11 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 6: Remove 2 Bolts (No. 60) and 2 Spring Washers (No. 39) from the Front Post (No.
- Page 12 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 8: Attach the Rear Handlebar (No. 6) to the Seat Support Bracket (No. 9) with 2 Bolts (No.
- Page 13 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 10: Attach Bottle Holder (No. 57) to the Front Post (No. 4) with 2 Screws (No. 58).
- Page 14 BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION 1. Take out 2 AA batteries from computer box. 2. Press the buckle of battery cover on the Computer (No. 59), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Computer (No. 59). Pay attention to the battery + and –...
- Page 15 ADJUSTMENTS GUIDE MOVING THE RECUMBENT BIKE Lift the Rear Stabilizer (No. 3) and tilt the recumbent bike until the Transportation Wheels (No. 50) touch the ground. Now you can transport the recumbent bike to the desired location with ease. ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the recumbent bike is stabled and secured.
- Page 16 EXERCISE COMPUTER FUNCTION BUTTONS: MODE: 1. Press the button to select hour, minute, year, month and date for setting. 2. Press the button to select TIME, DISTANCE, CALORIES and PULSE to preset. 3. Press the button to select function displaying on main LCD or enter after setting.
- Page 17 RPM: Displays the Rotation per Minute (RPM). The RPM and SPEED will switch to one another on display, every 6 seconds after exercise starts. SPEED: Displays current training speed. Maximum speed is 99.9 MPH (miles/hour). DISTANCE: Accumulates total distance from 0.00 up to 99.99 m (miles). The user may preset target distance data by pressing the SET &...
- Page 18 3. If the computer display is abnormal, please re-install the batteries and try again. 4. Battery Spec: 1.5V UM-3 or AA (2PCS). APP CONNECTION 1. Scan below QR code to enter the app store and download the Sunny Health & Fitness app to your mobile phone. 2. Press the Bluetooth switch to connect.
- Page 19 TROUBLESHOOTING PROBLEM SOLUTION Remove the computer and verify that the wire from computer properly connected to the wire that comes from the front post. Check batteries correctly There is no display on the computer. positioned and battery springs are in proper contact with batteries.
