Sunny SF-RB4601 User Manual

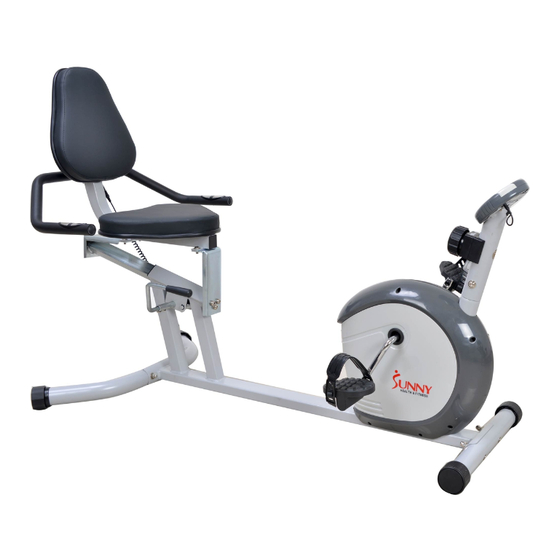

300lbs capacity recumbent bike
Hide thumbs

Advertisement

Table of Contents

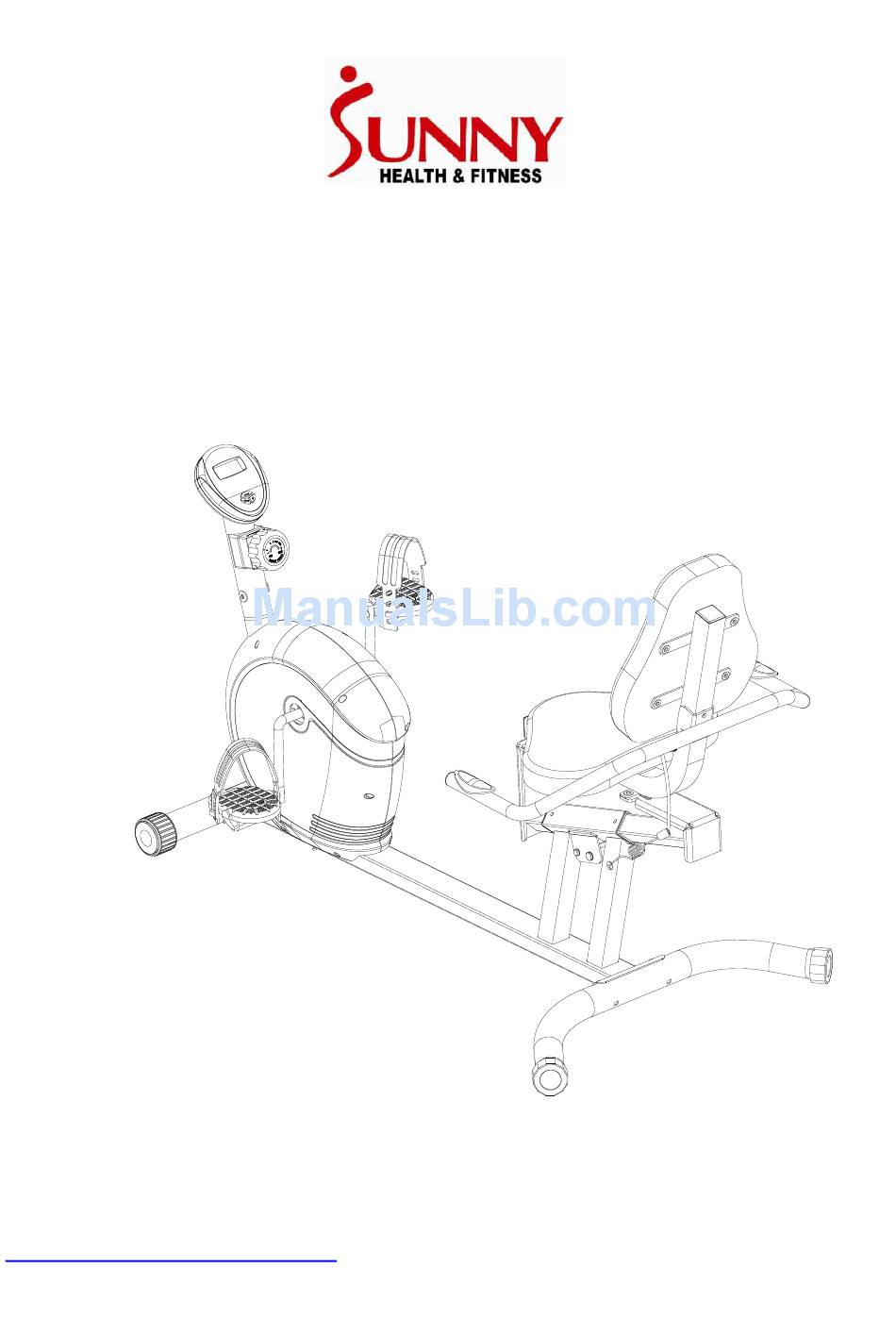

300LBS CAPACITY RECUMBENT BIKE
SF-RB4601
USER MANUAL
IMPORTANT: Please read this manual carefully before using the product. Retain owner's
manual
for
future
reference.
For
Customer
Service,
please
contact:
support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-RB4601 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny SF-RB4601

Summary of Contents for Sunny SF-RB4601

  • Page 1 300LBS CAPACITY RECUMBENT BIKE SF-RB4601 USER MANUAL IMPORTANT: Please read this manual carefully before using the product. Retain owner’s manual future reference. Customer Service, please contact: support@sunnyhealthfitness.com...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly.

  • Page 3: Exploded Drawing

    EXPLODED DRAWING 1...
  • Page 4 EXPLODED DRAWING 2...

  • Page 5: Parts List

    PARTS LIST DESCRIPTION DESCRIPTION Computer Circlip d15 Screw M5*10 Screw M8*16 Screw M5*12*Φ8 Eccentric gear Washer d5*Ф20*R30*1.5 Clamping axle Tension control Screw M6*20*S5 Arc washer d6*Ф16*1.5*R16 Tension wire Screw M8*16*S6 Backrest cushion Arc washer d8*φ20*2*R30 Seat cushion Foam grip Φ23*3*550 Handlebar post Upper sensor wire 1 Spring washer d6...
  • Page 6 Circlip d12 Screw ST4.2*16 Weak magnetic square magnet Bolt M6*30*S10 25*10*6 Spring Φ1.2*Φ15*48*N9 Strong magnetic square magnet Weak magnetic square magnet Washer d5*Φ10*1 19.5*19.5*10 Magnet location grip Spanner S13-14-15 Magnetic board Allen wrench S6 Screw ST3.5*13 Allen wrench S5 Nut M6*H5*S10...

  • Page 7: Hardware Package

    HARDWARE PACKAGE #18 M8*H16*S13 1PC #32 d8 2PCS...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1: Attach the Front Stabilizer (No. 16) and Rear Stabilizer (No. 21) to the Main Frame (No. 14) using 4 Carriage Bolts (No. 17), 4 Arc Washers (No. 8) and 4 Nuts (No. 18), which are preassembled parts that should be removed then reattached. Tighten with Spanner (No. 99). Connect the Left &...
  • Page 9 #100 S6 #8 d8*Φ20*2*R30 2PCS STEP 2: NOTE: The hardware parts used in this step are preassembled on the equipment. Please remove the parts then reattach as instructed. IMPORTANT: Before attempting to connect the tension control cable, ensure that the Tension Control (No.
  • Page 10 #49 d6*Ф16*1.5*R16 2PCS S5 #101 #32 d8 4PCS #53 d6 2PCS STEP 3: NOTE: The hardware parts used in this step are preassembled on the equipment. Please remove the parts then reattach as instructed. Attach the Seat Adjustment Handle (No. 39) to the Clamping Axle (No. 47), making sure the correct side is facing up, using 2 Screws (No.
  • Page 11 #18 M8*H16*S13 1PC S6 #100 #32 d8 2PCS STEP 4: Attach the Handlebar (No. 25) to the Backrest Frame (No. 36) using 1 Bolt (No. 37), 1 Screw (No. 7), 2 Washers (No. 33), 2 Spring Washer (No. 32) and 1 Nut (No. 18). Tighten with Spanner (No.
  • Page 12 STEP 5: Connect Computer Wire (No. 1a) with Trunk Wire 1 (No. 11) then connect Computer Wire (No. 1b) with Upper Sensor Wire 1 (No. 10). Attach the Computer (No. 1) to the computer bracket located on top of the Handlebar Post (No.

  • Page 13: Adjustment Guide

    ADJUSTING THE SADDLE  The seat of this bike is fully adjustable as it moves Fore (forward), Aft (backward).  Your SF-RB4601 Recumbent Bike is designed with a convenient Seat Adjustment Handle (No. 39) to help you adjust your seat while seated ...
  • Page 14  ADJUSTING THE RESISTANCE Adjust the resistance of the bike using the Tension Control (No. 5). Increase the level of resistance by turning the tension knob to the RIGHT (clockwise), decrease the level of resistance by turning the tension knob to the LEFT (counter-clockwise). ...
  • Page 15 EXERCISE METER FUNCTION KEYS 1. MODE: Press this button to select functions. Press and hold the MODE button for 3 seconds to reset time, distance and calories. 2. SET: Press to set values of time, pulse, distance and calories when not in scan mode. A.
  • Page 16 SPECIFICATIONS Auto Scan Every 6 seconds Running Time 00:00～99:59 (Minute: Second) Current Speed The max pick-up signal is 999.9 MILE/HR (or 9999RPM) FUNCTION Trip Distance 0.0～999.9 MILE Calories 0～9999 Kcal Total Distance 0～9999 MILE Pulse Rate 40-240 BPM Battery Type 2 pcs of SIZE AAA Operating Temperature 0°C～+40°C (32°F～104°F)
