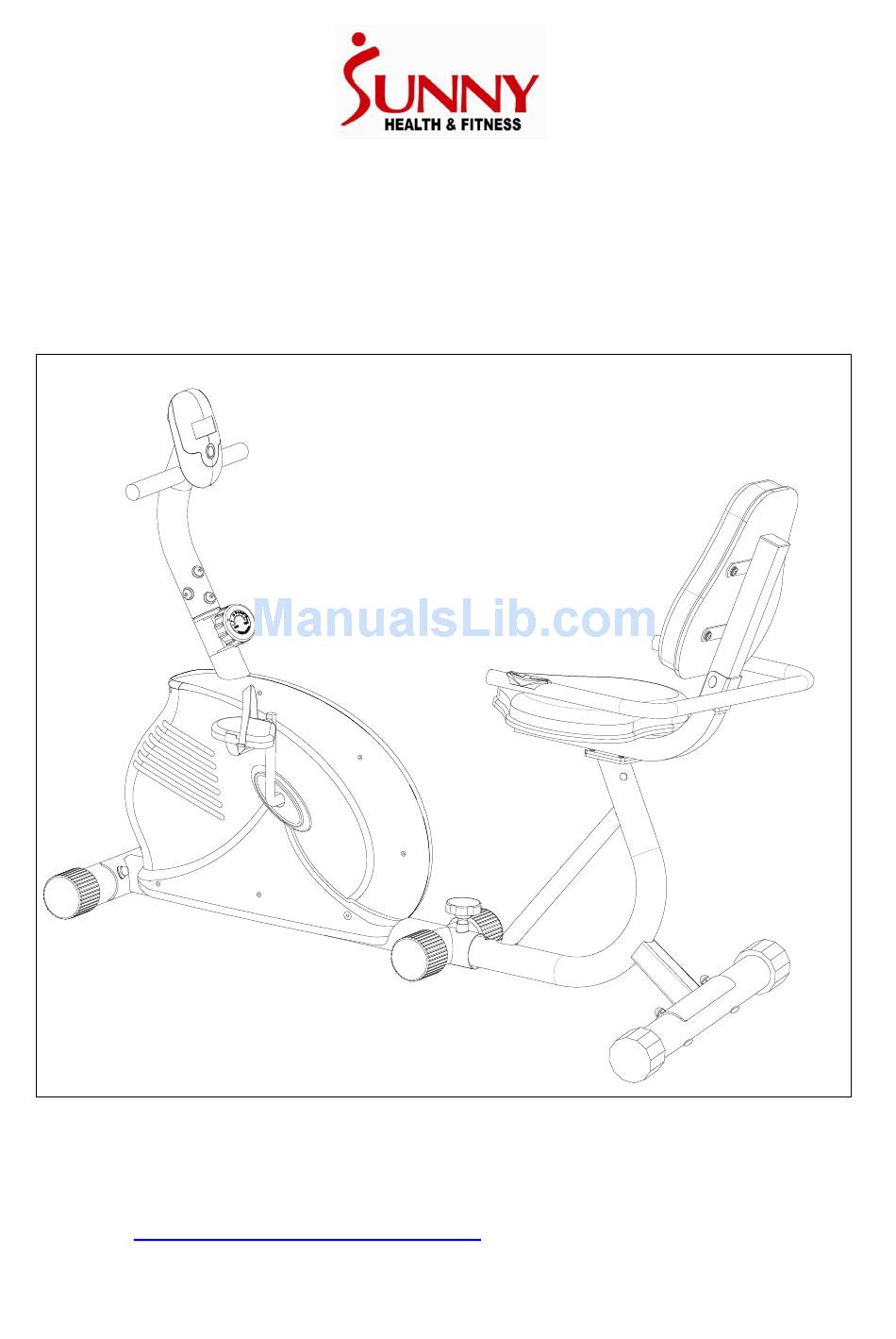

- Page 1 MAGNETIC RECUMBENT BIKE SF-RB921 USER MANUAL IMPORTANT! Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Drawing
EXPLODED DRAWING... -
Page 4: Parts List
PARTS LIST DESCRIPTION DESCRIPTION Main frame Back cushion Computer Cushion Bracket Computer wire Foam grip 2 Hand pulse wire 1 Hand pulse sensor Bushing Φ60 Trunk wire End cap for tube Φ25*1.5 Screw ST4.2*19 Foam grip 1 Handlebar Handlebar post Hand pulse wire Hand pulse wire 2 Allen wrench S6... -
Page 5: Hardware Package
HARDWARE PACKAGE... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: Attach the Front Stabilizer (No. 17) to the Main Frame (No. 1) using 2 Bolts (No. 36), 2 Arc Washers (No. 37) and 2 Dome Nuts (No. 38). Secure using Spanner (No. 43). - Page 7 STEP 2: Connect Hand Pulse Wire 1 (No. 4) with Hand Pulse Wire 2 (No. 9) then connect Trunk Wire (No. 5) to Sensor Wire (No. 10). Attach the Handlebar Post (No. 8) to the Main Frame (No. 1) and tighten with 4 Bolts (No.
- Page 8 STEP 3: Secure the Left & Right Pedals (No. 14 L/R) to its corresponding Crank (No. 15 L/R) located on the Main Frame (No. 1). *IMPORTANT NOTE: The Left Pedal (No 14L) should be screwed on counter-clockwise as it has reversed threading. The Right Pedal (No. 14R) should be screwed on clockwise.
- Page 9 STEP 4: Secure the Rear Stabilizer (No. 20) to the Seat Rack Combine (No. 18) with 2 Bolts (No. 36), 2 Arc Washers (No. 37), and 2 Nuts (No. 38). Next, connect Hand Pulse Wire 3 (No. 32) with Hand Pulse Wire 2 (No. 9) and insert the wire completely into the Seat Rack Combine (No.
- Page 10 STEP 5: Secure Cushion Bracket (No. 24) to the Seat Rack Combine (No. 18) with Bolts (No. 35), Spring Washers (No. 42), and Washers (No. 40). *NOTE: Part No. 35, 40, 42 are preassembled on Seat Rack Combine (No. 18). Simply unscrew and reattach with the Cushion Bracket (No.
- Page 11 STEP 6: Attach the Handlebar (No. 29) to the Cushion Bracket (No. 24) using 2 Bolts (No. 41), 2 Washers (No. 40), 2 Spring Washers (No. 42), and 2 Dome Nuts (No. 38). Next, connect the Handle Pulse Wire (No. 30) to Hand Pulse Wire 3 (No. 32).
- Page 12 STEP 7: Connect the Trunk Wire (No. 5) with Computer Wire (No. 3) then attach the Computer (No. 2) to the Handlebar Post (No. 8) with 2 Screws (No. 33). Insert the Hand Pulse Wire 1 (No. 4) into the back of Computer (No. 2). The assembly is now complete!
-
Page 13: Exercise Computer
EXERCISE COMPUTER SPECIFICATIONS: TIME………………………………………….00:00-99:59 MIN:SEC SPEED………………………………………0.0-99.9 KM/H or ML/H DISTANCE…………………………………..0.00-999.9 KM or ML ODOMETER………………………………...0-9999 KM or ML PULSE………………………………………40-240 BPM CALORIES………………………………….0-9999 KCAL KEY FUNCTIONS: MODE: Press to select function. (Time, Speed, Distance, Odometer, Pulse, Calories). Press and hold the mode button for three seconds to reset time, distance and calories. OPERATION PROCEDURES: 1.AUTO ON/OFF: If the wheel is put into motion, or the mode button is pressed the computer will become active, and...
