PERFORMANCE INTERACTIVE SERIES

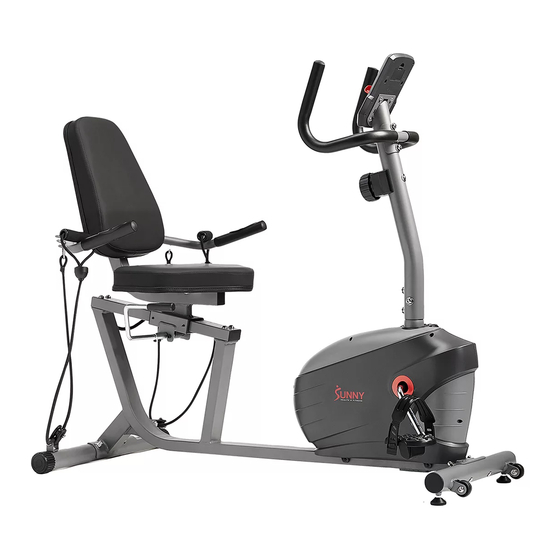

RECUMBENT BIKE
SF-RB420031
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-RB420031 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny SF-RB420031

Summary of Contents for Sunny SF-RB420031

  • Page 1 PERFORMANCE INTERACTIVE SERIES RECUMBENT BIKE SF-RB420031 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 4: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Adjustment Pad Plastic Spacer Front Stabilizer Upper Block Rear Stabilizer Handlebar Post Eccentric Wheel Seat Bracket Screw Arc Washer Handlebar Tension Controller Armrest Rail Tension Cable Rear Fixing Plate Tension Hook U Bracket Sensor Wire Sensor Extension...
  • Page 5 Screw Screw D10×Φ14×1 Flat Washer Wrench Φ17×Φ25×0.3 Wave Washer Spanner S10,13,14,15,17 Screw M6×10 Wrench...

  • Page 6: Hardware Package

    HARDWARE PACKAGE #26 D8 4PCS #17 M8X20 4PCS #15 M8X40 4PCS #19…D8XΦ20X2XR25 4PCS #14 M8X50 2PCS #25…D8XΦ16×1.5 6PCS #110 S6 1PC #108 S5 1PC #109 .S10,13,14,15,17 1PC Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ...
  • Page 7 ASEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1 Remove 2 Paper Tubes (No. A & B) from the Main Frame (No. 1) Remove 4 Carriage Bolts (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 3 Connect the Pulse Extension Wire 2 (No. 65) to the Pulse Extension Wire 1 (No.
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5 Lock the Rail (No. 8) to the Main Frame (No. 1) with 4 Screws (No. 15) and 4 Flat Washers (No.
  • Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 7 Remove the preassembled 4 Screws (No. 31) from the Meter (No. 66) with Spanner (No.

  • Page 11: Adjustment Guide

    ADJUSTMENT GUIDE ADJUSTING THE SEAT POSITION ADJUSTING THE LEVEL To move the Seat (No. 40) forward or If at any point the bike does not feel leveled, you can adjust the Adjustment backward, while seated on the bike, put your Pads (No.
  • Page 12 ROPE USAGE Rope Usage Before using the Ropes (No. 52), flip the Handlebar (No. 6) up. Attach the Ropes (No. 52) on the A or B or C position on Handlebar (No. 6). Now you can use the Ropes (No. 52) in sitting or standing position.

  • Page 13: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION AAA 1.5V The meter uses 2 batteries. Open the battery cover from the back of meter, then put 2 batteries into the battery compartment. Make sure the (+) and (-) ends of the batteries are in the correct position.

  • Page 14: Function Buttons

    EXERCISE METER FUNCTION BUTTONS: MODE: Press the button to select TIME, DISTANCE, and CALORIES to preset. Press the button for selection function display value on LCD or enter after setting. Press the button and hold for 3 seconds to reset all values except odometer to zero.

  • Page 15: App Connection

    3. Dispose the batteries safely, according to your state and regional guidelines. APP CONNECTION 1. Scan below QR code to enter the app store and download the Sunny Health & Fitness app to your mobile phone. 2. Press the Bluetooth switch to connect.
