RECUMBENT BIKE WITH EXTRA CAPACITY
SF-RB4602
USER MANUAL
IMPORTANT: Please read this manual carefully before using the product. Retain owner's
manual
for
future
reference.
For
Customer
Service,
please
contact:
support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-RB4602 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunny SF-RB4602

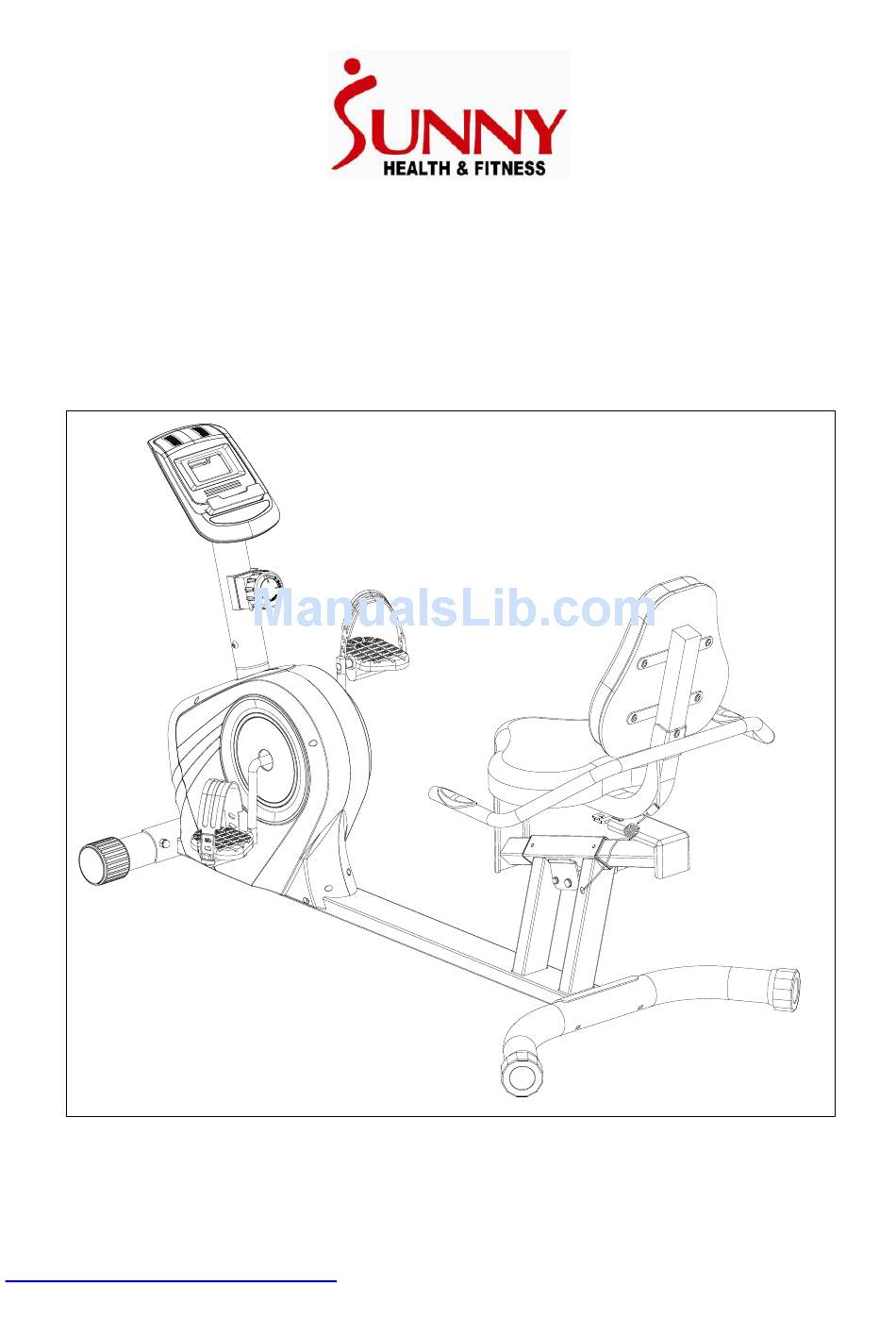

  • Page 1 RECUMBENT BIKE WITH EXTRA CAPACITY SF-RB4602 USER MANUAL IMPORTANT: Please read this manual carefully before using the product. Retain owner’s manual future reference. Customer Service, please contact: support@sunnyhealthfitness.com...
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
  • Page 3: Exploded Drawing

    EXPLODED DRAWING 1...
  • Page 4 EXPLODED DRAWING 2...
  • Page 5: Parts List

    PARTS LIST DESCRIPTION DESCRIPTION Computer Circlip d15 Screw M5*10 Screw M8*16 Screw M5*16*Φ8 Eccentric gear Arc washer d5*Ф20*R30*1.5 Clamping axle Tension control knob Screw M6*16*S5 Arc washer d6*Ф16*1.5*R16 Tension wire Screw M8*16*S6 Backrest cushion Arc washer d8*Φ20*2*R30 Seat cushion Foam grip Φ23*3*550 Handlebar post Upper sensor wire 1 Spring washer d6...
  • Page 6 Bolt M6*12*S10 Bolt M6*45*S10 Screw M6*8*Φ12 Nut M6*H5*S10 Screw M6*10*Φ12 98L/R Chain cover Screw ST4.2*19*Φ8 Fixed tray t1.5*56*76 Bearing 6001-2RS Snap joint Bearing seat Φ72*11 Spanner S13-14-15 Inertial axle Allen wrench S6 Inertial wheel Allen wrench S5 Crank cap Φ44*10...
  • Page 7: Hardware Package

    HARDWARE PACKAGE #18 M8*H16*S13 1PC #32 d8 2PCS #102 S5 #103...
  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS #8 d8*Φ20*2*R30 4PCS #18 M8*H16*S13 4PCS #101 STEP 1: NOTE: The hardware parts used in this step are preassembled on the equipment. Please remove the parts then reattach as instructed. Attach the Front Stabilizer (No. 16) and Rear Stabilizer (No. 21) to the Main Frame (No. 14) using 4 Carriage Bolts (No.
  • Page 9 #102 #8 d8*Φ20*2*R30 4PCS STEP 2: NOTE: The hardware parts used in this step are preassembled on the equipment. Please remove the parts then reattach as instructed. IMPORTANT: Before attempting to connect the tension control cable, ensure that the Tension Control (No.
  • Page 10 #49 d6*Ф16*1.5*R16 2PCS S5 #103 #32 d8 4PCS #53 d6 2PCS STEP 3: NOTE: The hardware parts used in this step are preassembled on the equipment. Please remove the parts then reattach as instructed. Attach the Seat Adjustment Handle (No. 39) to the Clamping Axle (No. 47) using 2 Screws (No.
  • Page 11 #18 M8*H16*S13 1PC #102 #101 #32 d8 2PCS STEP 4: Attach the Handlebar (No. 25) to the Backrest Frame (No. 36) using 1 Bolt (No. 37), 1 Screw (No. 7), Washer (No. 33), Spring Washer (No. 32) and 1 Nut (No. 18). Tighten with Spanner (No.
  • Page 12 #101 STEP 5: Connect Computer Wire (No. 1a) with Trunk Wire 1 (No. 11) then connect Computer Wire (No. 1b) with Upper Sensor Wire 1 (No. 10). Attach the Computer (No. 1) to the computer bracket located on top of the Handlebar Post (No.
  • Page 13 ADJUSTING THE SADDLE  The seat of this bike is fully adjustable as it moves Fore (forward), Aft (backward).  Your SF-RB4602 Recumbent Bike is designed with a convenient Seat Adjustment Handle (No. 39) to help you adjust your seat while seated ...
  • Page 14  ADJUSTING THE RESISTANCE Adjust the resistance of the bike using the Tension Control (No. 5). Increase the level of resistance by turning the tension knob to the RIGHT (clockwise), decrease the level of resistance by turning the tension knob to the LEFT (counter-clockwise). ...
  • Page 15: Function Keys

    EXERCISE METER FUNCTION KEYS 1. MODE: Press this button to change the function displayed 2. UP: In setting mode, press this key to increase the setting value of TIME, DIST, CAL, or TEMP 3. DOWN: In setting mode, press this key to decrease the setting value of TIME, DIST, CAL, or TEMP 4.
