Chapter 1 — Introduction

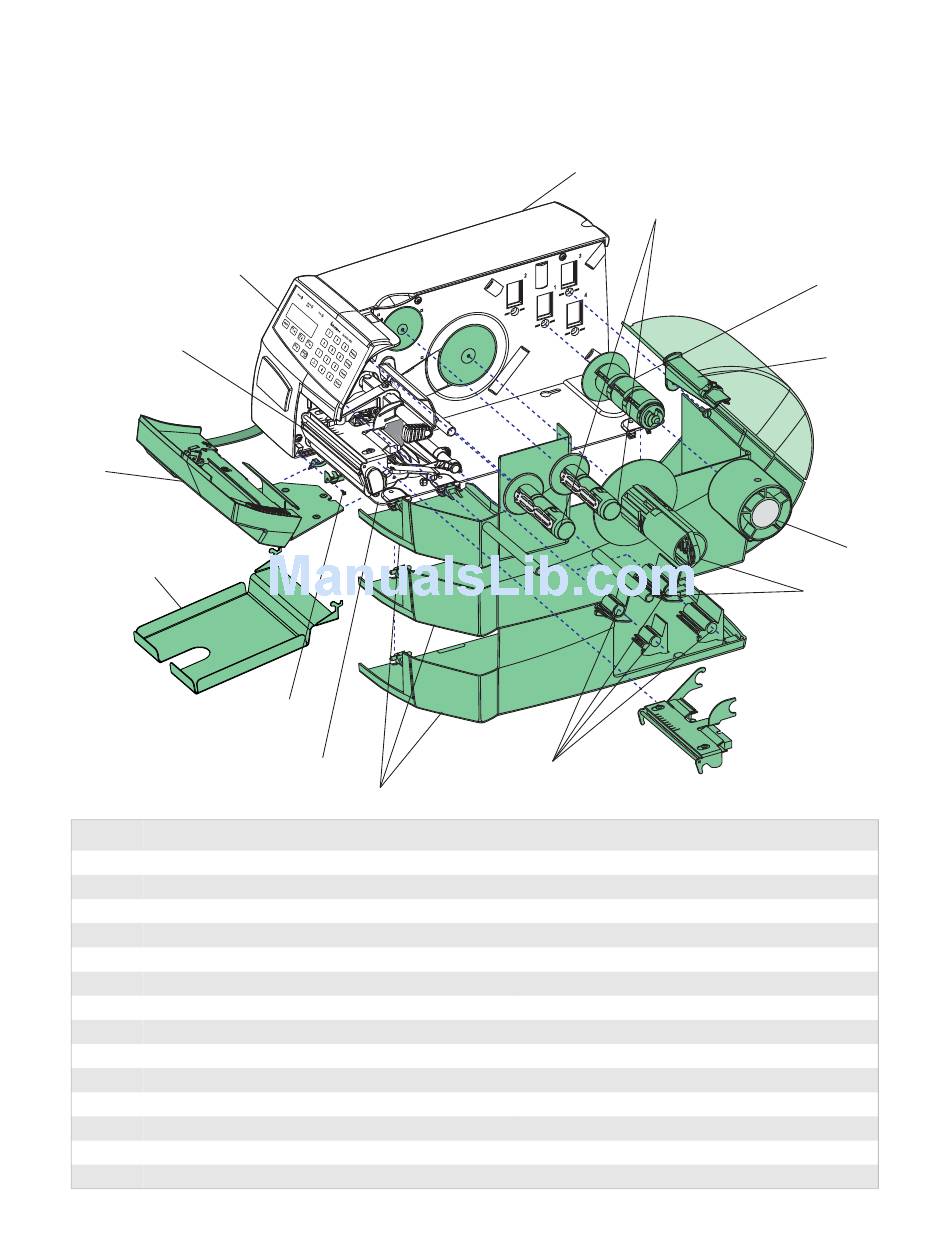

EasyCoder PF4i, General View

14
13
12
11
Callout Description
1 Cover
2 Transfer ribbon mechanism
3 Media supply hub (option)
4 Media supply roll post
5 3-inch adapter (option)
6 Liner takeup unit (option)
7 Quick-load guides
8 Doors (3 different types)
9 Chassis
10 Label taken sensor (option)
11 Paper cutter tray (option)
12 Paper cutter (option)
13 Print mechanism
14 Keyboard
4
10
9
8
EasyCoder PF2i, PF4i, and PF4i Compact Industrial Printers Spare Parts Catalog
1
2
7
Remarks
See page 9
See pages 18, 20, and 21
See page 31
See page 29
See page 32
See page 34
See page 27
See pages 23 and 24
See page 10
See page 45
See page 35
See page 35
See pages 12 and 14
See page 9
