Installing the Battery Unit

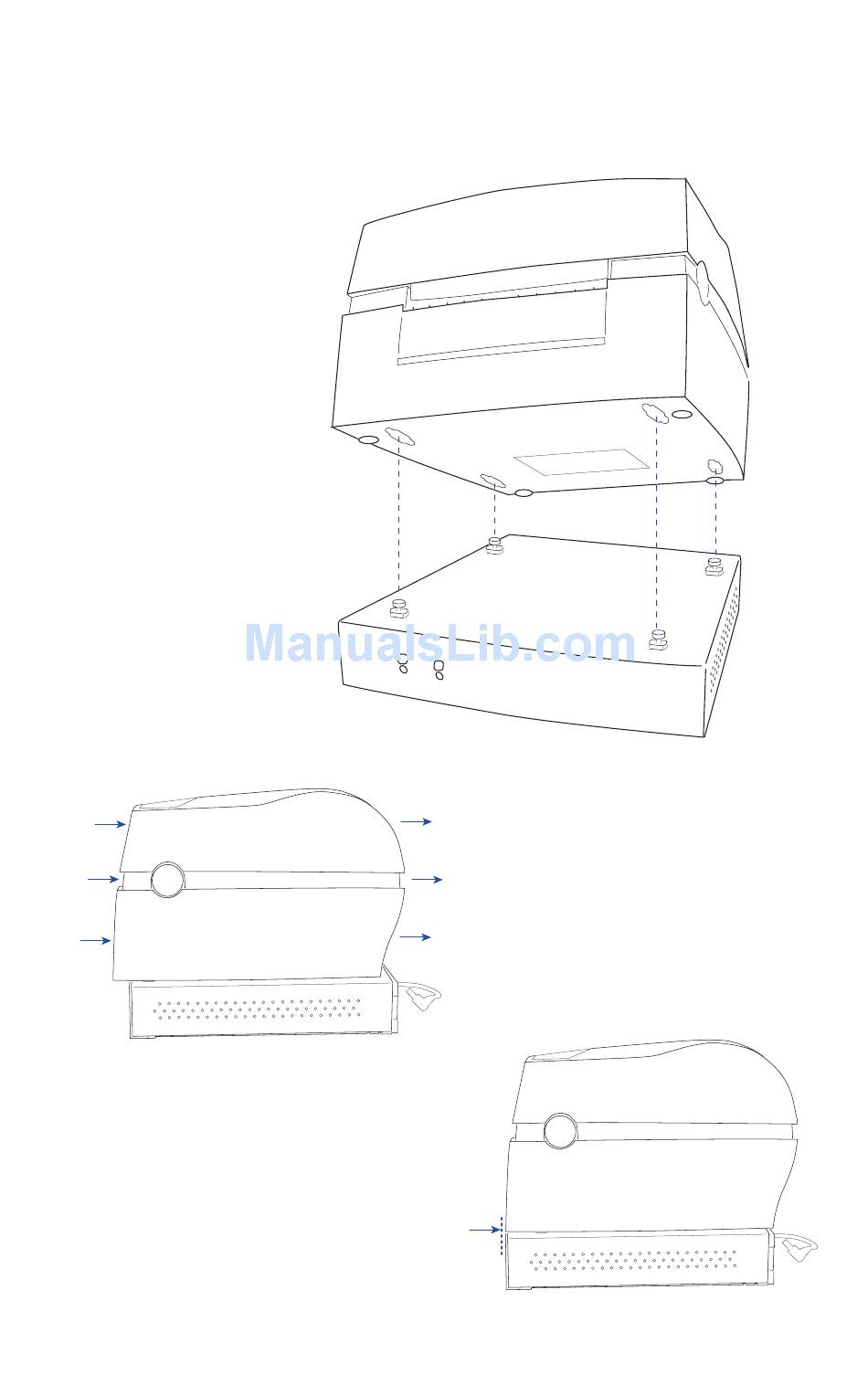

1 Lower the printer
on the battery unit.
Make sure the four
screws on the bat-
tery unit go in to
the corresponding
holes in the printer.
EasyCoder PC4/PC41 Mobile Battery Unit Installation Instructions
Chapter 1 — Installation
2 Push the printer backwards,
keeping the battery unit
still. Make sure the printer
is aligned with the battery
unit, as shown in the illus-
tration below.
3
