EN
SLIDE1024
USER'S AND INSTALLER'S MANUAL
V4.3
REV. 08/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLIDE1024 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Motorline professional SLIDE1024

Summary of Contents for Motorline professional SLIDE1024

  • Page 1 SLIDE1024 USER'S AND INSTALLER'S MANUAL V4.3 REV. 08/2022...

  • Page 2: Table Of Contents

    00. CONTENT 01. SAFETY INSTRUCTIONS INDEX ATTENTION: 01. SAFETY INSTRUCTIONS This product is certified in accordance with European ATTENTION Community (EC) safety standards. 02. AUTOMATISM TECHNICAL SPECIFICATIONS This product complies with Directive 2011/65/EU of the KIT COMPONENTS European Parliament and of the Council, of 8 June 2011, on the restriction of the use of certain hazardous substances 03.
  • Page 3 01. SAFETY INSTRUCTIONS GENERAL WARNINGS • Children shouldn’t play with the product or opening devices to avoid the motorized door or gate from being triggered involuntarily. • This manual contains very important safety and usage information. very important. Read all instructions carefully before beginning the WARNINGS FOR TECHNICIANS installation/usage procedures and keep this manual in a safe place that it can be consulted whenever necessary.
  • Page 4 01. SAFETY INSTRUCTIONS RESPONSABILITY September 2009. • Attach the permanent label for the manual release as close as possible • Supplier disclaims any liability if: to the release mechanism. • Product failure or deformation result from improper installation • Disconnect means, such as a switch or circuit breaker on the electrical use or maintenance! panel, must be provided on the product’s fixed power supply leads in •...

  • Page 5: Automatism

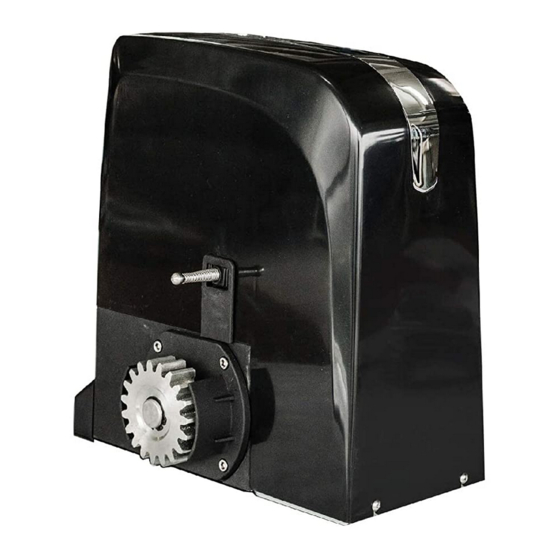

    02. AUTOMATISM 02. AUTOMATISM TECHNICAL SPECIFICATIONS KIT COMPONENTS You should check the following items on the automation package before beginning the installation. • Automated system for residential or industrial sliding gates with a maximum of 1000kgs. It consists of a reversing electro-mechanical gearmotor, powered by a 24V control board. •...

  • Page 6: Instalation

    03. INSTALLATION INSTALLATION MAP 1 • Motor 12 • Guide 2 • Support column for photocell 13 • Gate 3 • Limit switch plate 14 • Fasteners 4 • Photocell 15 • Battery box 5 • Rack 16 • Transformer 6 •...

  • Page 7: Change Motor Orientation

    03. INSTALLATION CHANGE MOTOR ORIENTATION CHANGE MOTOR ORIENTATION BATTERIES ORIGINAL MOTOR POSITION If the fixing plate is already tightened on the foundation, it is necessary • Slide 1024 is shipped from the factory as to unscrew it in order to change the orientation of the motor. shown in this image.

  • Page 8: Unlock Automatism 7A

    03. INSTALLATION 03. INSTALLATION UNLOCK AUTOMATISM FOUNDATION CREATE FOUNDATION • Make a hole with 270x530mm and 250mm depth. Fill with concrete and smooth the top. The motor fixing plate should be applied with the concrete still fresh (see page 8). 250mm TURN KEY EXISTING FOUNDATION...

  • Page 9: Motor Installation

    03. INSTALLATION MOTOR INSTALLATION *If you are installing the motor on an existing foundation, screw the fixing plate to the floor using suitable screws and anchor bolts (not supplied in the kit). CEMENT MUST BE FRESH Insert the screws and anchor bolts into the four holes of the fixing plate and tighten. With the cement still fresh, apply the fixing plate.

  • Page 10: Steel Gear Rack Installation

    03. INSTALLATION STEEL GEAR RACK INSTALLATION Put the gate in the open position and unlock the motor (page 7A). Place spacers in all rack holes. You should place them in the center of the oval rack holes, so you can fine-tune it at the end of the installation if necessary. Position a piece of rack on top of the pinion and level it horizontally with a level.

  • Page 11: Nylon Gear Rack Installation

    03. INSTALLATION NYLON GEAR RACK INSTALLATION Put the gate in the open position and unlo- ck the motor (page 7A). Position a rack piece on top of the pinion, level it horizontally with a level. Begin by fixing the rack on top of the pinion to the gate. Close the gate slightly until another end of the rack stands on top of the pinion and tightens.

  • Page 12: Limit Switch

    03. INSTALLATION LIMIT SWITCH OPTION 1 OPTION 2 Position the opening limit switch plate on Position the open limit switch magnet on the the rack so that limit switch stops the motor rack so that it can trigger the motor stop about MECHANICAL LIMIT SWITCH MAGNETIC LIMIT SWITCH approximately 10 to 20 mm before the gate...

  • Page 13: Components Test

    04. COMPONENT TEST 05. MAINTENANCE MOTOR TEST MAINTENANCE To detect which components are faulty, it is sometimes necessary to perform tests with a direct connec- tion to an external power supply (24V ac battery). • Lubricate The diagram below shows how this connection should be made. Lubricate with fine oil, all gate movement systems / shafts.
