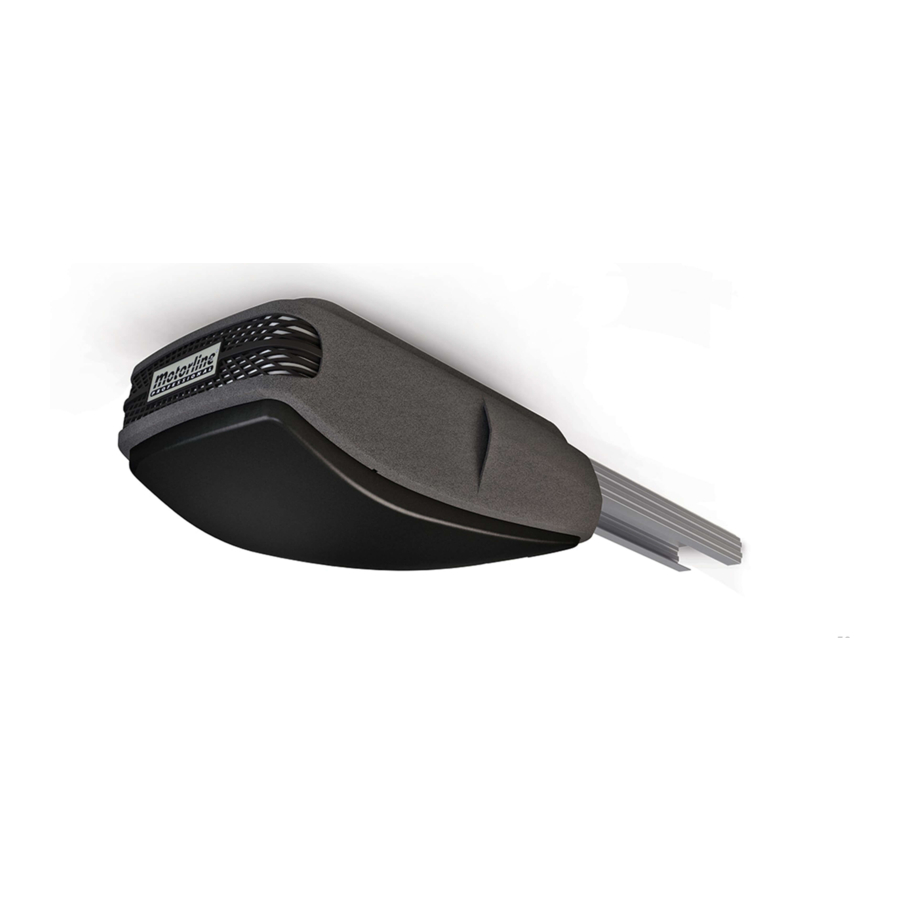

- Page 1 ROSSO EVO USER'S AND INSTALLER'S MANUAL v4.0 REV. 05/2018...
-
Page 2: Table Of Contents
CONTROL BOARD ERROR MAP susceptible to electric shock by direct or indirect contact with INSTRUCTIONS FOR CONSUMERS | TECHNICAL PERSONNEL electricity. Be cautious when handling the product and observe all safety procedures in this manual. 09. CENTRAL CONNECTIONS ROSSO EVO CENTRAL... -
Page 3: Safety Instructions
01. SAFETY INSTRUCTIONS 01. SAFETY INSTRUCTIONS STANDARDS TO FOLLOW STANDARDS TO FOLLOW It is important for your safety that these instructions are followed. • Automatism powered by very low safety voltage, with electronic board / • Keep these instructions in a safe place for future reference. control board / control unit. -
Page 4: Package
30 transmitters 01• 04• • Code Type Rolling Code Rolling Code Rolling Code 11• • Radio frequency 433,92Hz 433,92Hz 433,92Hz The automatism ROSSO EVO dimensions are as follows: 07• 12• 359mm 09• 08• 02• 170mm 215mm 03• 06• 05• 150mm... -
Page 5: Manual Brake Release 5A
03. THE AUTOMATISM MANUAL BRAKE RELEASE REMOVING TOP COVER The ROSSO EVO unlocking system is very simple and practical to use. To do so just pull the lever down (figure 03). To block simply pull the lever to the original position. -
Page 6: Changing Courtesy Leds 6A
CHANGING COURTESY LEDS INFORMATION PRE-INSTALLATION For a correct operation of ROSSO EVO, you must take into account the following parameters before the installation: • Read all steps on this manual at least once in order to get acquainted with the installation and configuration process. - Page 7 04. INSTALLATION 04. INSTALLATION FIXING THE MOTOR IN RAILS AUTOMATISM INSTALLATION With standard rails, you can only automate doors with maximum height of 2500mm. 100-150mm 125-175mm DETAIL 13 01 • Attach the rail’s support plate to the lintel, as visible in the image 15. In the image 16 if can be seen the distance to keep between the gate rail and support plate’s upper part (125-175mm).
- Page 8 04. INSTALLATION 04. INSTALLATION AUTOMATISM INSTALLATION AUTOMATISM INSTALLATION DETAIL 19 03 • Place celling rail ‘s fixation plate roughly halfway through the steel rail as visible 05 • After rising the rail and mark the holes, you should fix the plate with screws. in the pictures above.
-
Page 9: Installation Map
04. INSTALLATION INSTALLATION MAP LEGEND: 01 • ROSSO EVO Motor 02 • Steel rail 03 • Rail to ceilling’s/struture’s fixation plate 04 • Bracket for structure fixing 05 • Fast rail to ceilling’s/struture’s fixation plate 06 • Trolley with unlocking system 07 •... -
Page 10: Programming
05. PROGRAMMING 05. PROGRAMMING LEGEND MENU FUNCTIONS Legend: The control board has a main menu which allows access to all the different settings of the automatism. • Display • Main Menu Programming the "Follow Me" function Enable/disable condominium function • Programming transmmiters •... - Page 11 05. PROGRAMMING 05. PROGRAMMING MENU FUNCTIONS MENU FUNCTIONS • Enable/disable safety photocells • Programming opening and closing courses 01 • Press the M button for 4 seconds to enter the programming menu. 01 • Press the M key for 4 seconds to enter the programming menu. ▲...
- Page 12 05. PROGRAMMING 05. PROGRAMMING MENU FUNCTIONS MENU FUNCTIONS • Enable/disable function condominium Note • The option 00 disables the maintenance warning. Any other option defines thousands of operations, the lowest value is 5000 operations (option 05) and the maximum is 45000 operations (option 45). 01 •...
-
Page 13: Programming Transmitters 13B
05. PROGRAMMING 05. PROGRAMMING MENU FUNCTIONS PROGRAMMING TRANSMITTERS ▲ ▼ while the display shows any of the options in this submenu, press the keys simultaneously for 10 seconds. The control board will automatically exit to standby mode and the RESET to the P8 menu is complete. •... -
Page 14: Post-Installation
06. POST-INSTALLATION 06. POST-INSTALLATION STOPPER AT THE OPENING STRETCH RAIL’S CHAIN The automatism needs a stopper in the opening and closing to always control the courses. In closing maneuvers, the ground will be the stopper for the gate, but in the opening maneuvers it is necessary to create a stopper on the steel rail, to ensure that the trolley always stop in the correct place. -
Page 15: Diagnosis
07. DIAGNOSIS CONNECT ENGINE TO 24V BATTERY DETALHE 39 DETAIL 39 In case of automatism failure or malfunction, you must detect the fail component (motor or central). To do that, you should test the motor directly connected to a 24V DC power source, in order to understand if this works. -
Page 16: Troubleshooting
08. TROUBLESHOOTING CONTROL BOARD ERROR MAP Error Error Description Cause Solving the problem ENCODER ERROR • The control board does not receive information encoder • Encoder’s plug. • Make sure the plug is fully inserted. installed on the motor. • Motor does not work and the encoder does not scan. •... -
Page 17: Instructions For Consumers | Technical Personnel
08. TROUBLESHOOTING INSTRUCTIONS FOR FINAL CONSUMERS INSTRUCTIONS FOR TECHNICAL PERSONNEL Anomaly Procedure Actions Procedure II Discovering the origin of the problem 1 • Remove the top cover of the A) Has 24V: Motorline facilities for diagnosis on the input, the transformer is •... -
Page 18: Central Connections
09. CENTRAL CONNECTIONS ROSSO EVO CONTROL BOARD Option 1 - Pedestrian Door Pushbutton/Key Photocells Lightbulb External Receiver Outdoor Antenna Selector 12/24v CH1-a Contact (NC) CH1-b CH2-a 5W máx CH2-b Courtesy LEDs Option 2 - Emergency FUSE FT Photocells (F500mAL250V) Recetora...
