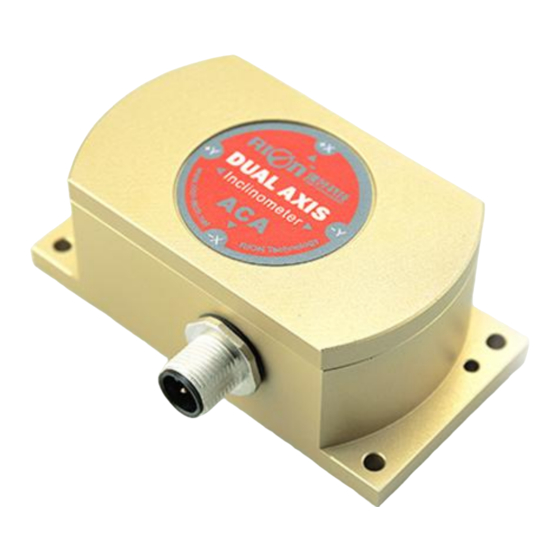

ACA826T
High Accuracy Digital Type Dual-Axis Inclinometer
-
SPECIFICATIONS
Item No.：ACA826T
Description: High Accuracy Digital Type Dual-Axis Inclinometer
with Full Temperature Compensation
Production implementation standard reference
● Enterprise quality system standards: ISO9001: 2008 standard (certification number: 128101)
● Tilt sensor production standards: GB / T 191 SJ 20873-2003 inclinometer general specification of Level
●The Academy of metrology and quality inspection Calibrated in accordance to: JJF1119-2004
Electronic Level calibration Specification
● Software development reference standard: GJB 2786A-2009 military software development General
requirements
● Product environmental testing standards: GJB150
● Electromagnetic anti-interference test standards: GB / T 17626
● Version:Ver.10
● Date:2018.04.13
Advertisement
Table of Contents
Related Manuals for Rion ACA826T
Summary of Contents for Rion ACA826T
- Page 1 ACA826T High Accuracy Digital Type Dual-Axis Inclinometer SPECIFICATIONS Item No.：ACA826T Description: High Accuracy Digital Type Dual-Axis Inclinometer with Full Temperature Compensation Production implementation standard reference ● Enterprise quality system standards: ISO9001: 2008 standard (certification number: 128101) ● Tilt sensor production standards: GB / T 191 SJ 20873-2003 inclinometer general specification of Level ●The Academy of metrology and quality inspection Calibrated in accordance to: JJF1119-2004...
-
Page 2: General Description
General Description ACA826T is a full temperature compensation & high accuracy dual-axis inclinometer which professionally developed by Rion Company to the field of high precision level measurement and leveling field , high resolution 0.0005 °, can completely replace the traditional high-precision level meter. Digital signal transmission, matched with professional computer software, data measure and record correctly ,output interface RS485, RS232, TTL, PWM or CAN 2.0B optional.Non-contact installation... -
Page 3: Ordering Information
ACA826T High Accuracy Digital Type Dual-Axis Inclinometer Ordering information: E.g：ACA826T-01-232：Dual-axis/Standard/±01°Measuring range/RS232 output Technical Data Parameters Conditions ACA826T-03 ACA826T-10 ACA826T-15 unit ±03 ±10 ±15 ° Measuring range Measuring axis 0.0005 0.0005 0.0005 Resolution ° 0.001 0.005 0.006 Absolute accuracy ° 0.002 0.003... -
Page 4: Electronic Characteristics
ACA826T High Accuracy Digital Type Dual-Axis Inclinometer Electronic Characteristics Parameters Conditions Standard Unit Power supply Standard 12、24 customized Other voltage Working current No-load Working temperature ℃ Store temperature +100 ℃ Key words： Resolution：Refers to the sensor in measuring range to detect and identify the smallest changed value. - Page 5 ACA826T High Accuracy Digital Type Dual-Axis Inclinometer Measuring Directions&Fix The installation must guarantee the product bottom is parallel to measured face， and reduce the influence of dynamic and acceleration to the sensor. This product can be installed horizontally or mounted vertically (mounted vertically selection is only applicable to the single axis), for installation please refer to the following scheme.
-
Page 6: Electrical Connection
ACA826T High Accuracy Digital Type Dual-Axis Inclinometer Dimension Size：L92×W48×H36mm Electrical Connection 1.RS232/RS485 Wiring BLACK WHITE BLUE BROWN GRAY Line color RS232(RXD) RS232(TXD) Vcc 9～36V FACTORY function Power Negative Or RS485(D+) Or RS485(D-) Power supply positive Use only... - Page 7 ACA826T High Accuracy Digital Type Dual-Axis Inclinometer 2.RS422 Wiring BLUE WHITE PINK YELLOW BROWN Line color function TXD- RXD+ RXD- DC9~36V TXD+ 1） 8 core connector 2） leader cable...
- Page 8 Send Data, the unit Hz; Note: after install the RION’s debugging software, if can not open, please operate by the following steps ( please appear to the administrator status to operate ): 1）...
- Page 9 ACA826T High Accuracy Digital Type Dual-Axis Inclinometer Product Protocol 1.DATA FRAME FORMAT （ 8 bits date，1 bit stop，No check，Default baud rate 9600） Address code Identifier Date Length Command word Date domain Check sum (1byte) (1byte) (1byte) (1byte) (1byte) Date format: hexadecimal Identifier：Fixed68...
- Page 10 ACA826T High Accuracy Digital Type Dual-Axis Inclinometer E.g: 68 05 00 85 00 8A Data domain in the number means the sensor response results 00 Setting successfully FF Setting failure 0X0B Setting communication rate Data domain（1byte） E.g: 68 05 00 0B 03 13 Baud rate：default :9600...
- Page 11 ACA826T High Accuracy Digital Type Dual-Axis Inclinometer already changed then to be effective, otherwise the sensor will not respond to commands.(power off with save function) E.g: 68 05 00 0F 01 15 Setting the address to 01 68 05 FF 0F 00 13...
- Page 12 ACA826T High Accuracy Digital Type Dual-Axis Inclinometer...
