Festo EAMM-A-T42-55A Assembly Instructions

EAMM-A-T...-...A/P/R-15
Axial kit
Assembly instructions
8169507
2022-03f
[8169509]
Translation of the original instructions
© 2022 all rights reserved to Festo SE & Co. KG
1

Applicable documents

All available documents for the product è www.festo.com/sp.
Document Product
Operating instructions Motor
Operating instructions Axis
Tab. 1: Applicable documents
2

Safety

2.1

Safety instructions

– Only mount the product on components that are in a condition to be safely
operated.
– Clean the shafts. The coupling hubs [1] grip without slipping only on dry and
grease-free shaft journals.
– Maintain the proper alignment of the coupling hubs [1].
– Support the combination in the following cases:
– If there are protruding or heavy motor attachments.
– In the event of severe vibrations, vibration loads or shock loads.
– If the motor is loosened or turned, homing must be carried out on the axis.
– Select required mounting components. The kit contains all the mounting com-
ponents that may be required.
– Observe the tightening torques. Unless otherwise specified, the tolerance is
± 20%.
2.2

Intended use

2.2.1

Use

The axial kit connects an axis to a motor configured axially to the driven shaft.
2.2.2

Permissible axes and motors

NOTICE
Overloading can cause malfunction and material damage.
The motor's output variables must not exceed the permissible values of the
components used.
Permissible values è www.festo.com/catalogue.
• Limit the motor's output variables accordingly.
• Take the axis and the motor from the interface codes.
Example: EAMM-A-T42-60P
T42: axis interface
60P: motor interface
Axis interface
T42
T46
Tab. 2: Permissible axes
Motor interface
55A
57A
58AA
60AA
60AB
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Axis
EGSC-BS-60, ELGC-BS-60, ELGC-TB-60,
EPCC-BS-60
ELGC-BS-80, ELGC-TB-80, ELGT-BS-90,
ELGT-BS-120, ELGT-BS-160
Motor
EMMS-AS-55, third-party motor
EMCS-/EMMS-ST-57, third-party motor
Third-party motor
Third-party motor
Third-party motor
Motor interface
60P
60PA
60R
60RA
67A
70A
70AA
80P
80PA
80PB
85AA
87A
100A
Tab. 3: Permissible motors
It is the responsibility of users to qualify third-party motors with the matching
mechanical interface for the combination.
To find out which third-party motors are suitable, consult your regional Festo
contact or è www.festo.com/sp.
2.3

Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can eval-
uate the work and detect dangers. Personnel must have the relevant mechanical
training.
3

Additional information

– Contact the regional Festo contact if you have technical problems.
– Accessories è www.festo.com/catalogue.

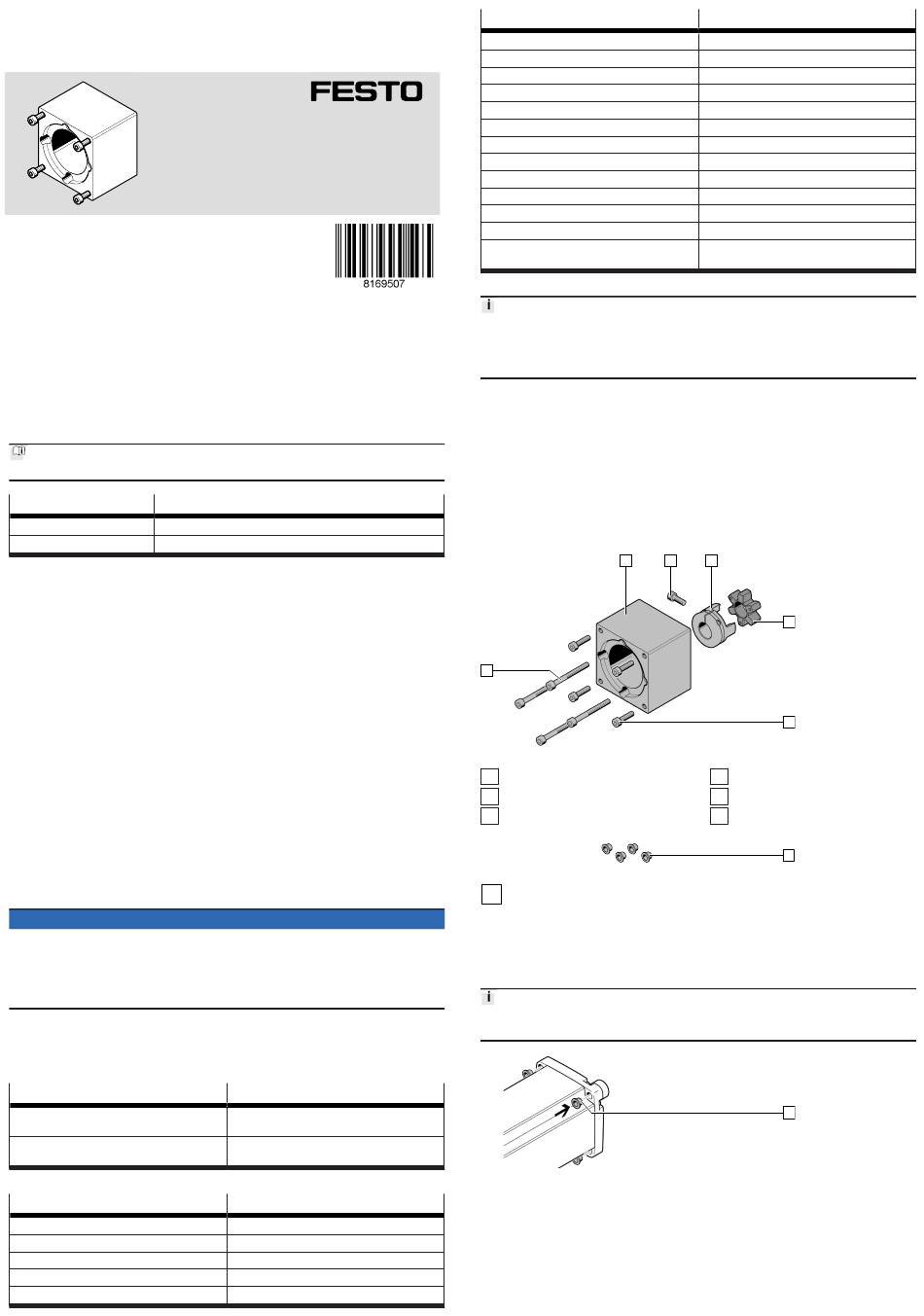

4

Scope of delivery

5
7
Fig. 1: Basic scope of delivery
1 Coupling hub (1x)
2 Locking screw (1x)
5 Coupling housing (1x)
Fig. 2: Supplement to reducing sleeve
30 Reducing sleeve (4x)
5

Assembly

5.1 Assembly
5.1.1

Preassembly of reducing sleeve

The reducing sleeves [30] are only required if the mounting holes on the output
flange of the motor are too large for the supplied retaining screws.
Fig. 3: Insert reducing sleeves
• Insert reducing sleeves [30] into the mounting holes of the motor.
Motor
EMMB-/EMME-/EMMT-AS-60, third-party motor
Third-party motor
Third-party motor
Third-party motor
EMCA-EC-67
EMMS-AS-70, third-party motor
Third-party motor
EMMB-/EMME-/EMMT-AS-80, third-party motor
Third-party motor
Third-party motor
Third-party motor
EMMS-ST-87
EMME-/EMMS-/EMMT-AS-100, third-party
motor
2 1
19
10
7 Screw (4x)
10 Screw (4x)
19 Elastomer spider (1x)
30
30
