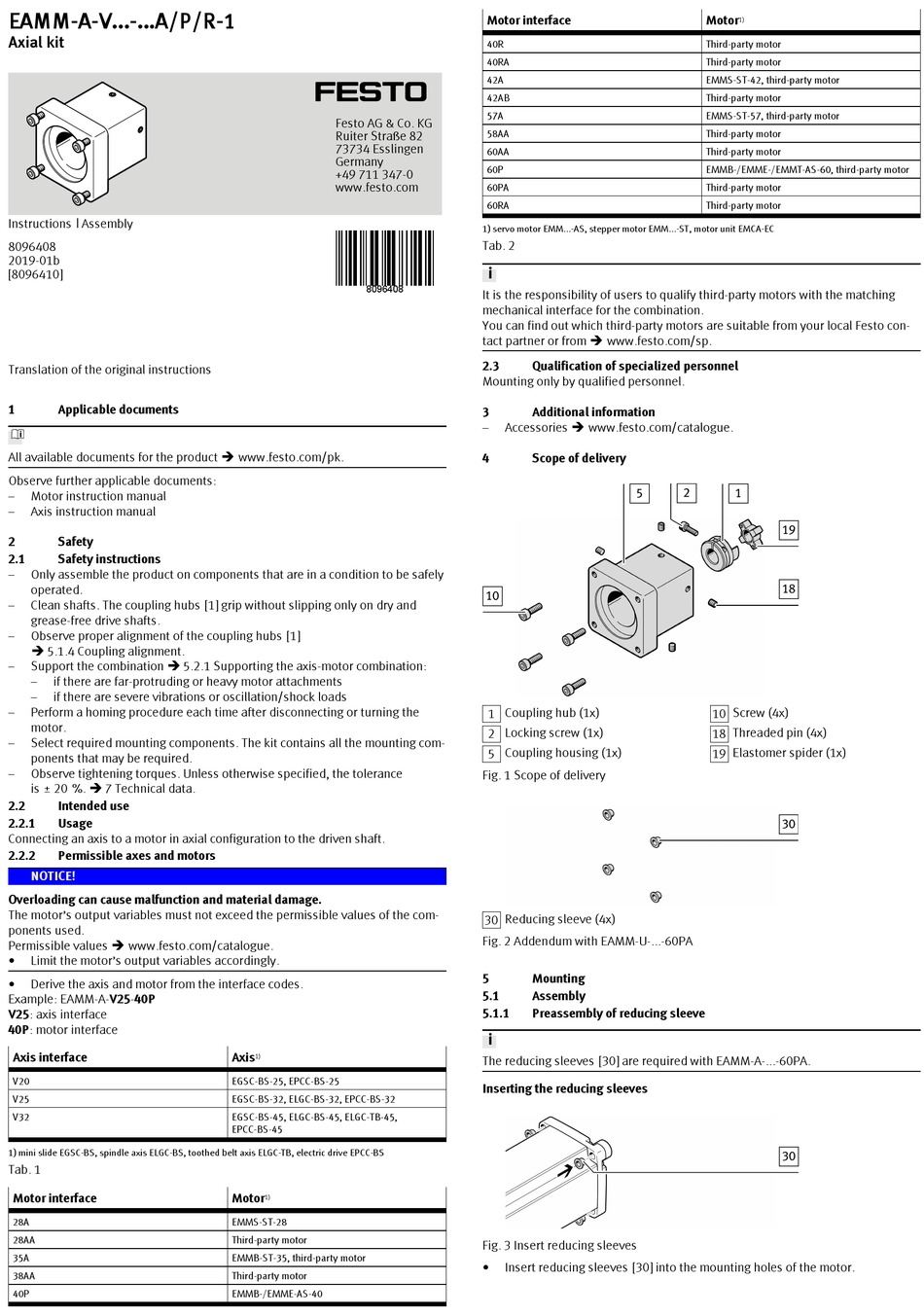

Festo EAMM-A-V...-...A Series Instructions

EAMM-A-V...-...A/P/R-1

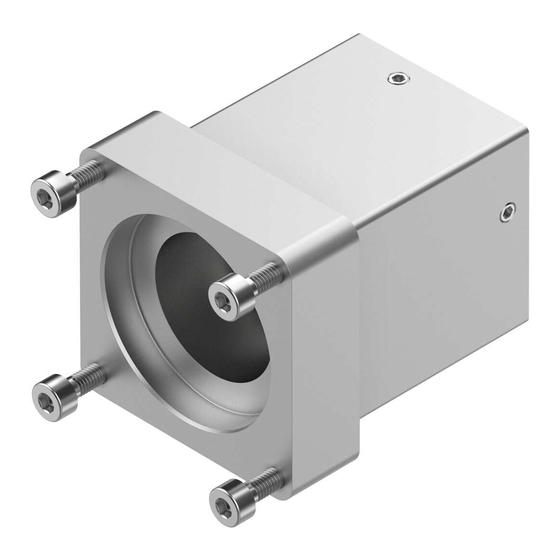

Axial kit
Instructions | Assembly
8096408
2019-01b
[8096410]
Translation of the original instructions
1 Applicable documents
All available documents for the product è www.festo.com/pk.
Observe further applicable documents:
– Motor instruction manual
– Axis instruction manual
2 Safety
2.1 Safety instructions
– Only assemble the product on components that are in a condition to be safely
operated.
– Clean shafts. The coupling hubs [1] grip without slipping only on dry and
grease-free drive shafts.
– Observe proper alignment of the coupling hubs [1]
è 5.1.4 Coupling alignment.
– Support the combination è 5.2.1 Supporting the axis-motor combination:
– if there are far-protruding or heavy motor attachments
– if there are severe vibrations or oscillation/shock loads
– Perform a homing procedure each time after disconnecting or turning the
motor.
– Select required mounting components. The kit contains all the mounting com-
ponents that may be required.
– Observe tightening torques. Unless otherwise specified, the tolerance
is ± 20 %. è 7 Technical data.
2.2 Intended use
2.2.1 Usage
Connecting an axis to a motor in axial configuration to the driven shaft.
2.2.2 Permissible axes and motors
NOTICE!
Overloading can cause malfunction and material damage.
The motor's output variables must not exceed the permissible values of the com-
ponents used.
Permissible values è www.festo.com/catalogue.
• Limit the motor's output variables accordingly.
• Derive the axis and motor from the interface codes.
Example: EAMM-A-V25-40P
V25: axis interface
40P: motor interface
Axis interface
V20
V25
V32
1) mini slide EGSC-BS, spindle axis ELGC-BS, toothed belt axis ELGC-TB, electric drive EPCC-BS
Tab. 1
Motor interface
28A
28AA
35A
38AA
40P
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8096408
Axis
1)
EGSC-BS-25, EPCC-BS-25
EGSC-BS-32, ELGC-BS-32, EPCC-BS-32
EGSC-BS-45, ELGC-BS-45, ELGC-TB-45,
EPCC-BS-45
Motor
1)
EMMS-ST-28
Third-party motor
EMMB-ST-35, third-party motor
Third-party motor
EMMB-/EMME-AS-40
Motor interface
40R
40RA
42A
42AB
57A
58AA
60AA
60P
60PA
60RA
1) servo motor EMM...-AS, stepper motor EMM...-ST, motor unit EMCA-EC
Tab. 2
It is the responsibility of users to qualify third-party motors with the matching
mechanical interface for the combination.
You can find out which third-party motors are suitable from your local Festo con-
tact partner or from è www.festo.com/sp.
2.3 Qualification of specialized personnel
Mounting only by qualified personnel.
3 Additional information
– Accessories è www.festo.com/catalogue.
4 Scope of delivery
1 Coupling hub (1x)
2 Locking screw (1x)
5 Coupling housing (1x)
Fig. 1 Scope of delivery
30 Reducing sleeve (4x)
Fig. 2 Addendum with EAMM-U-...-60PA
5 Mounting
5.1 Assembly
5.1.1 Preassembly of reducing sleeve
The reducing sleeves [30] are required with EAMM-A-...-60PA.
Inserting the reducing sleeves
Fig. 3 Insert reducing sleeves
• Insert reducing sleeves [30] into the mounting holes of the motor.
Motor
1)
Third-party motor
Third-party motor
EMMS-ST-42, third-party motor
Third-party motor
EMMS-ST-57, third-party motor
Third-party motor
Third-party motor
EMMB-/EMME-/EMMT-AS-60, third-party motor
Third-party motor
Third-party motor
10 Screw (4x)
18 Threaded pin (4x)
19 Elastomer spider (1x)
