EAMM-U-...-S...-...A/P/R-1
Parallel kit
Instructions | Assembly
8090367
2018-11e
[8090369]
Translation of the original instructions
1 Applicable documents
All available documents for the product è www.festo.com/pk.
Observe further applicable documents:
– Motor instruction manual
– Axis instruction manual
2 Safety
2.1 Safety instructions
– Only assemble the product on components that are in a condition to be safely
operated.
– Clean shafts. The clamping sleeves only grip efficiently on dry and grease-free
drive shafts.
– Perform a homing procedure each time after disconnecting or turning the
motor.
– Select required mounting components. The kit contains all the mounting com-
ponents that may be required.
– Observe tightening torques. Unless otherwise specified, the tolerance
is ± 20 %. è 8 Technical data.
2.2 Intended use
2.2.1 Usage
Connecting an axis to a motor in a parallel configuration.
2.2.2 Permissible axes and motors
NOTICE!
Overloading can cause malfunction and material damage.
The motor's output variables must not exceed the permissible values of the com-
ponents used.
Permissible values è www.festo.com/catalogue.
• Limit the motor's output variables accordingly.
• Derive the axis and motor from the interface codes.
Axis interface
S38
S48
S62
S95
1) S: spindle axis EGC/ELGA
Tab. 1
Motor interface
40A
40P
40R
42A
55A
57A
60P
67A
70A
80P
87A
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8090367
Axis
1)
EGC-70-BS, EGC-HD-125-BS, ELGA-BS-70
EGC-80-BS, EGC-HD-160-BS, ELGA-BS-80
EGC-120-BS, EGC-HD-220-BS, ELGA-BS-120
EGC-185-BS
Motor
1)
EMMS-AS-40
EMMB-/EMME-AS-40
Third-party motor
EMMS-ST-42, third-party motor
EMMS-AS-55, third-party motor
EMMS-ST-57, third-party motor
EMMB-/EMME-/EMMT-AS-60, third-party motor
EMCA-EC-67
EMMS-AS-70, third-party motor
EMMB-/EMME-/EMMT-AS-80, third-party motor
EMMS-ST-87
Motor interface
88A
100A
140A
1) servo motor EMM...-AS, stepper motor EMM...-ST, motor unit EMCA-EC
Tab. 2
It is the responsibility of users to qualify third-party motors with the matching
mechanical interface for the combination.
You can find out which third-party motors are suitable from your local Festo con-
tact partner or from è www.festo.com/sp.
2.3 Qualification of specialized personnel
Mounting only by qualified personnel.
3 Additional information
– Accessories è www.festo.com/catalogue.
4 Product range overview
4.1 Scope of delivery

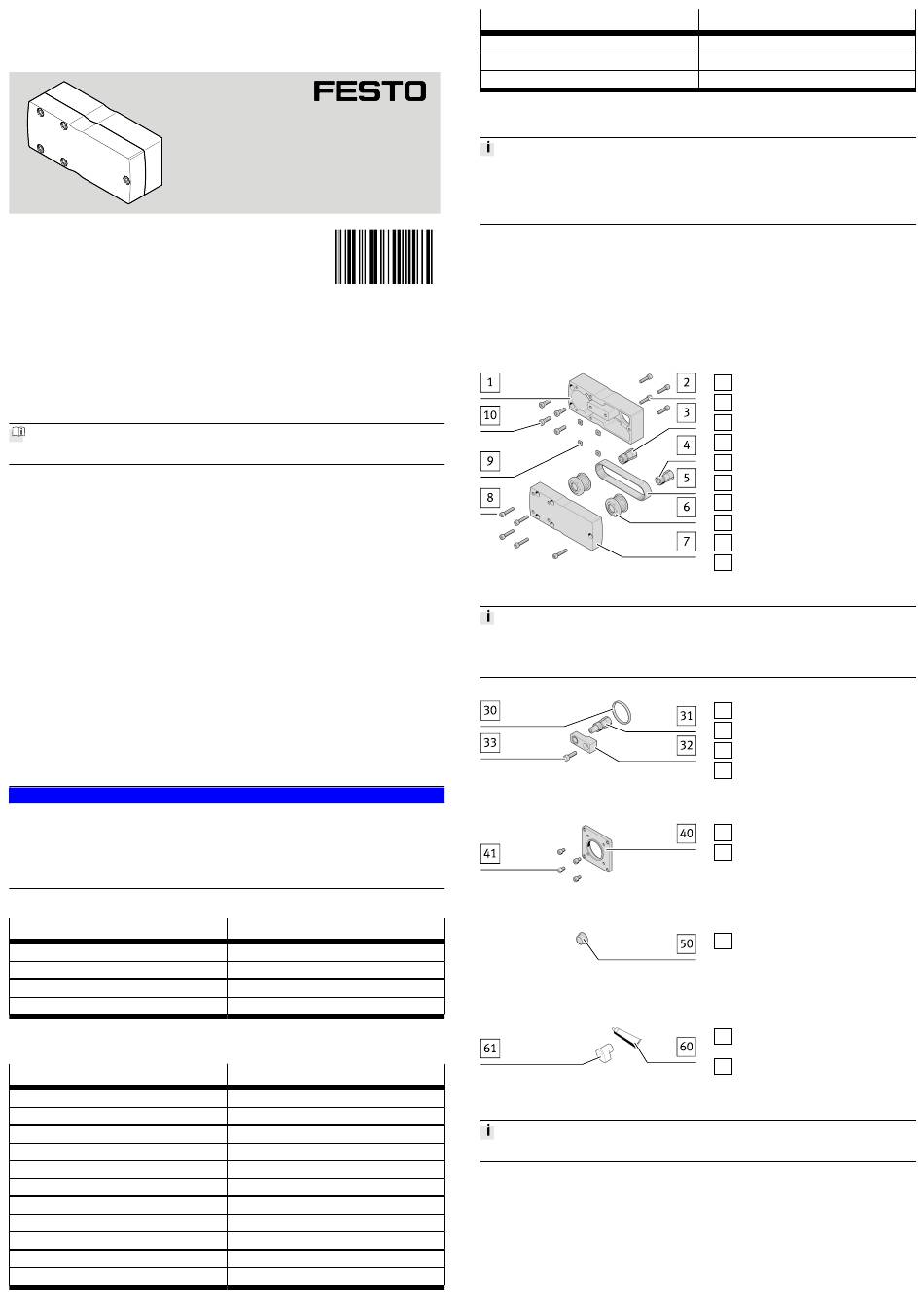

Fig. 1 Scope of delivery basis
With EAMM-U-...-S: clamping sleeve [31] replaces clamping sleeve [3]. Mount the
counter bearing [32] on the axis side.
With EAMM-U-...-42A: the square nut [9] is not required.
Fig. 2 Addendum with EAMM-U-...-S
Fig. 3 Addendum with EAMM-U-...-67A
Fig. 4 Addendum with EAMM-U-110/-145
4.2 Not in scope of delivery
Fig. 5 Accessories
The clamping element [61] is recommended from size 110.
Motor
1)
Third-party motor
EMME-/EMMS-/EMMT-AS-100
EMMS-AS-140
1 Housing (1x)
2 Screw (4x)
3 Axis clamping sleeve (1x)
4 Motor clamping sleeve (1x)
5 Toothed belt (1x)
6 Toothed belt pulley (2x)
7 Cover (1x)
8 Screw (5x)
9 Square nut (4x)
10 Screw (4x)
30 Centring ring (1x)
31 Axis clamping sleeve (1x)
32 Counter bearing (1x)
33 Screw (1x/2x)
40 Adapter plate (1x)
41 Screw (4x)
50 Sealing plug (1x)
60 Lubricating grease (1x) LUB-KC1
(silicone free)
61 Clamping element (1x) EADT-E-
U1-110
