Festo EAMM-U Series Assembly Instructions

EAMM-U-...-T...-...A/P/R-2
Parallel kit
Assembly instructions
8133030
2021-08c
[8133032]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1

Applicable documents

All available documents for the product è www.festo.com/sp.
Observe further applicable documents:
– Operating instructions, motor
– Operating instructions, axis
2

Safety

2.1 Safety instructions
– Only mount the product on components that are in a condition to be safely
operated.
– Clean the shafts. The coupling hub [17] will grip without slipping only on a drive
shaft which is dry and free of grease.
– Maintain the alignment of the coupling hub [17].
– If the motor is loosened or turned, homing must be carried out on the axis.
– Select required mounting components. The kit contains all the mounting com-
ponents that may be required.
– Observe tightening torques. Unless otherwise specified, the tolerance is
± 20 %.
2.2 Intended use
2.2.1 Use
The parallel kit connects an axis to a motor in a parallel configuration.
2.2.2 Permissible axes and motors
NOTICE
Overloading can cause malfunction and material damage.
The motor's output variables must not exceed the permissible values of the
components used.
Permissible values è www.festo.com/catalogue.
• Limit the motor's output variables accordingly.
• Derive the axis and motor from the interface codes.
Example: EAMM-U-...-T42-60P
T42: axis interface
60P: motor interface
Axis interface
T42
T46
1) Mini slide EGSC-BS, spindle axis ELGC-BS, spindle axis ELGT-BS, electric cylinder EPCC-BS
Tab. 1: Permissible axes
Motor interface
57A
60P
67A
1) Servo motor EMM...-AS/third-party motor, stepper motor EMM...-ST/third-party motor, integrated drive
EMC...
Tab. 2: Permissible motors
It is the responsibility of users to qualify third-party motors with the matching
mechanical interface for the combination.
To find out which third-party motors are suitable, contact your regional Festo
contact or call è www.festo.com/sp.
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Axis
1)
EGSC-BS-60, ELGC-BS-60, EPCC-BS-60
ELGC-BS-80, ELGT-BS-90, ELGT-120, ELGT-160
Motor
1)
EMCS-/EMMS-ST-57, third-party motor
EMMB-/EMME-/EMMT-AS-60, Fremdmotor
EMCA-EC-67
2.3

Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can eval-
uate the work and detect dangers. Personnel must have the relevant mechanical
training.
3

Additional Information

– Accessories è www.festo.com/catalogue.
4

Product Range Overview

4.1

Scope of delivery

10 1
9
20
19
8

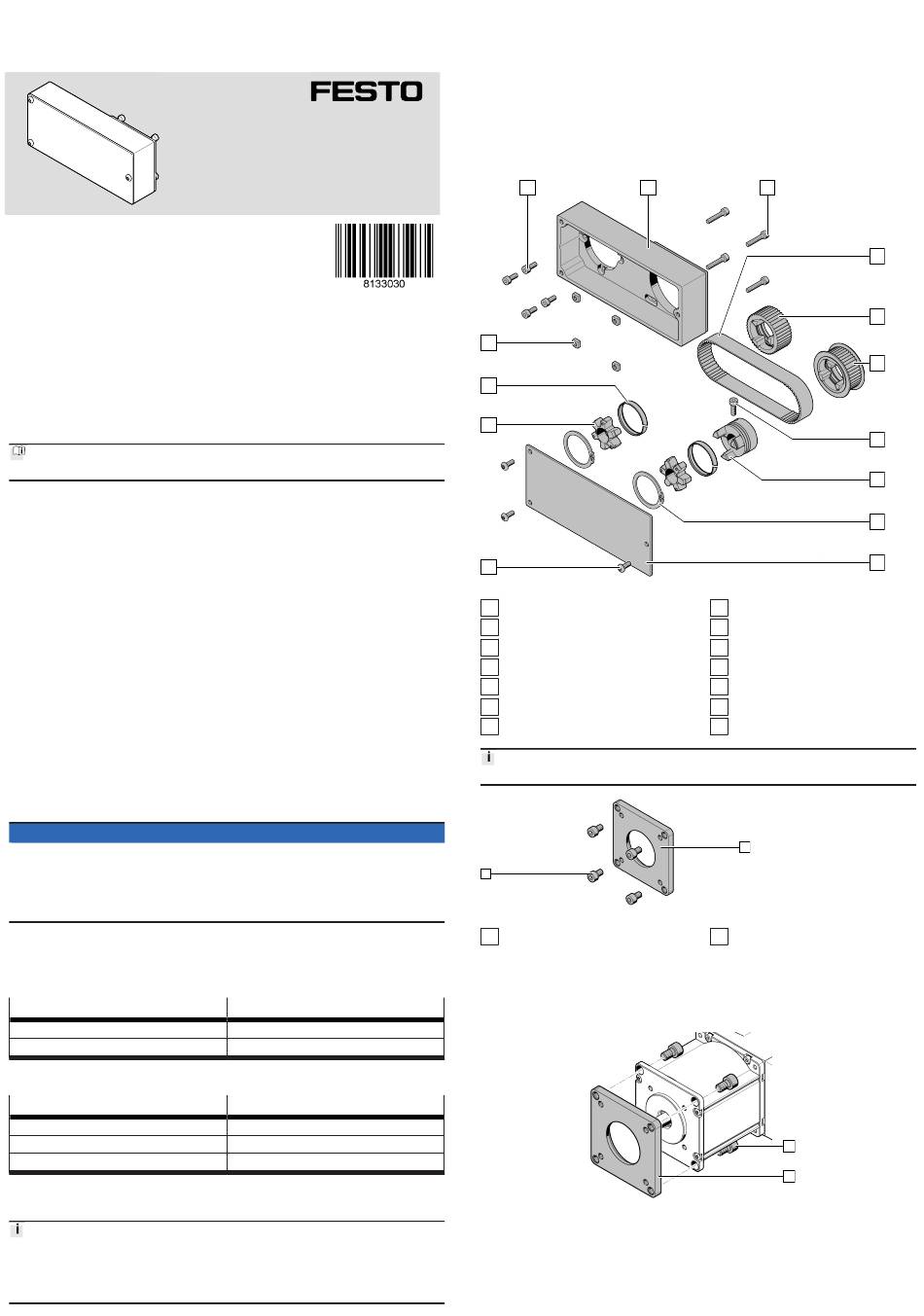

Fig. 1: Basic scope of delivery
1 Housing (1x)
2 Screw (4x)
5 Toothed belt (1x)
6 Toothed belt pulley axis (1x)
7 Cover (1x)
8 Screw (3x)
9 Square nut (4x)
The square nut [9] is not included with EAMM-U-...-67A.
41
Fig. 2: Addendum with EAMM-U-...-67A
40 Adapter plate (1x)
5

Assembly

5.1 Assembly
5.1.1

Preassembly of adapter plate (with EAMM-U-...-67A)

Fig. 3: Mount adapter plate
• Fasten the adapter plate [40] to the motor with the screws [2].
2
5
6
15
16
17
18
7
10 Screw (4x)
15 Toothed belt pulley motor (1x)
16 Clamping screw (1x)
17 Coupling hub (1x)
18 Retaining ring (2x)
19 Elastomer star (2x)
20 Slip ring (2x)
40
41 Screw (4x)
2
40
