Intermec Trakker T2090 Getting Started Manual

Hand-held computer
Hide thumbs Also See for Trakker T2090:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Getting Started Guide
P/N 067215-001
TRAKKER T2090 Batch
Hand-Held Computer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trakker T2090 and is the answer not in the manual?

Questions and answers

Related Manuals for Intermec Trakker T2090

Summary of Contents for Intermec Trakker T2090

  • Page 1 Getting Started Guide P/N 067215-001 TRAKKER T2090 Batch Hand-Held Computer...
  • Page 2 Multi-function Enter key Num/Alpha lock key Alphanumeric keys Power module EZDock Docking System Display panel Programmable function keys Backlight control key Power key Two-slot cradle 209XU.004...
  • Page 3 The EZDock Docking System serves as a charging and communications dock and as a storage location for the TRAKKER T2090. The docking system can be mounted on a desk, wall, or rack, and multiple cradles can be linked together for multiple-unit configurations.

  • Page 4: About This Guide

    About this Guide This guide contains basic information about operating and maintaining the TRAKKER T2090. This guide assumes that the data collection application software has been downloaded to the unit so that it is ready to be used. For information about writing a reader application and downloading it to the T2090, see the TRAKKER T2090 Batch Hand-Held Computer User’s Manual...

  • Page 5: Charging The Battery

    Charging the Battery Before using the TRAKKER T2090, you need to fully charge the battery pack. This takes four hours or less. For information about replacing the battery pack, see the TRAKKER T2090 Battery Replacement Instruction Sheet (part number 067378) included with the battery pack.
  • Page 6 When you first start up the TRAKKER T2090, you will see “123” on the display screen. This indicates that the keypad is in numeric mode. Pressing the key toggles the keypad mode to alpha and changes the display indicator to “abc.”...

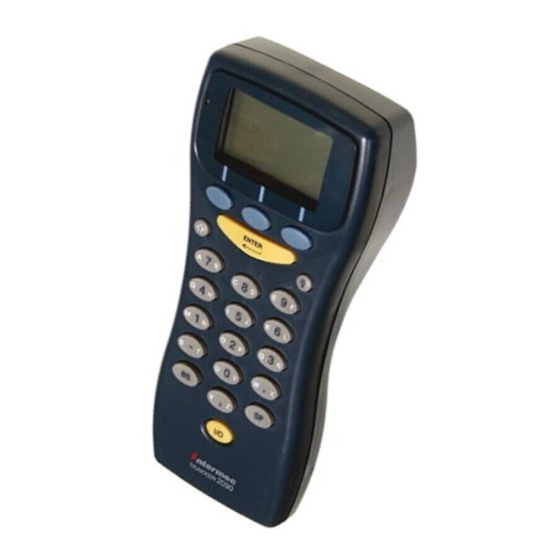

  • Page 7 LED indicates good/bad scan and battery charging status Enter key activates scanner and completes manual data entry Num/Alpha lock key toggles keypad mode Back space key moves cursor to left and erases previous character Display panel Programmable function keys Backlight control key turns backlight on and off 13 Alphanumeric keys...

  • Page 8: Collecting Data

    Collecting Data To enter numbers: 1. If the keypad is not in numeric mode, press the when you press any letter/number key, you will enter the number on the key. 2. Press the key(s) labeled with the number(s) you want to enter.

  • Page 9: Using The Bar Code Scanner

    Using the Bar Code Scanner This section applies only if your TRAKKER T2090 has an integrated bar code scanner. The application software running on the unit controls when the bar code scanner is activated. To scan a bar code: 1. Hold the unit between 1-20 inches from the bar code label.

  • Page 10: Transmitting Data

    EZKey keypad or scanning bar codes, you can transmit the data to a host system. To do this, all you do is place the TRAKKER T2090 in the EZDock Docking System (as shown in the pictures on pages 2 and 5). When you place the T2090 in the docking system, the LED lights up and if the audible feature is enabled, you hear a beep.
  • Page 11 U.S. media supplies ordering information: 1-800-227-9947 Canadian service and technical support: 1-800-688-7043 Canadian media supplies ordering information: 1-800-268-6936 Outside U.S. and Canada: Contact your local Intermec service supplier. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or...
