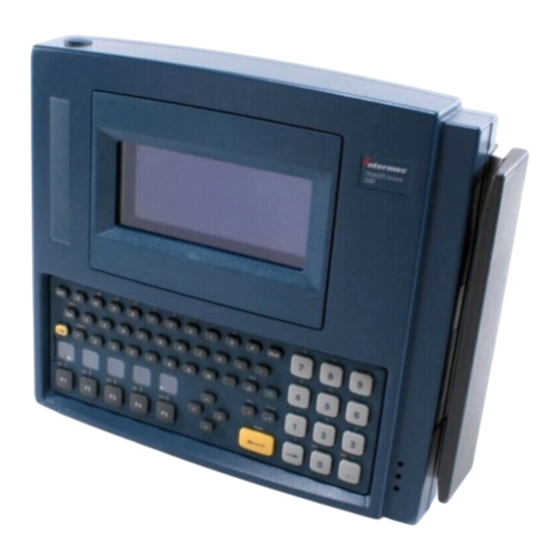

Intermec Trakker Antares 2480 Install Manual

Part No. 068251-002
TRAKKER Antares 248X COM4 Adapter Cable Installation
Instruction Sheet
You can attach the COM4 adapter cable (Part No. 067185) to a TRAKKER Antares 2480,
2481, 2485, or 2486 (T248X) terminal to use an additional serial port for RS-232 serial
communications. COM4 is only available on a T248X with the option for the enhanced
input/output board.
To install the adapter cable
1. Use a Phillips screwdriver to remove the six screws on the back panel.
2. Remove the back panel and place it on a clean surface.
3. Connect the COM4 adapter cable to the COM4 connector.
COM4
connector
COM4
adapter
cable
4. Use a Phillips screwdriver to loosen one of the screws on the cable restraint. Route the
COM4 adapter cable under the cable restraint. Tighten the screw to secure the cable.
5. Route the COM4 adapter cable under the cable restraint bar and through the scissors seal.
6. With the seal facing toward the terminal, place the back panel on the back of the terminal.
7. Use a Phillips screwdriver to tighten the six screws to 19 in-lb torque.

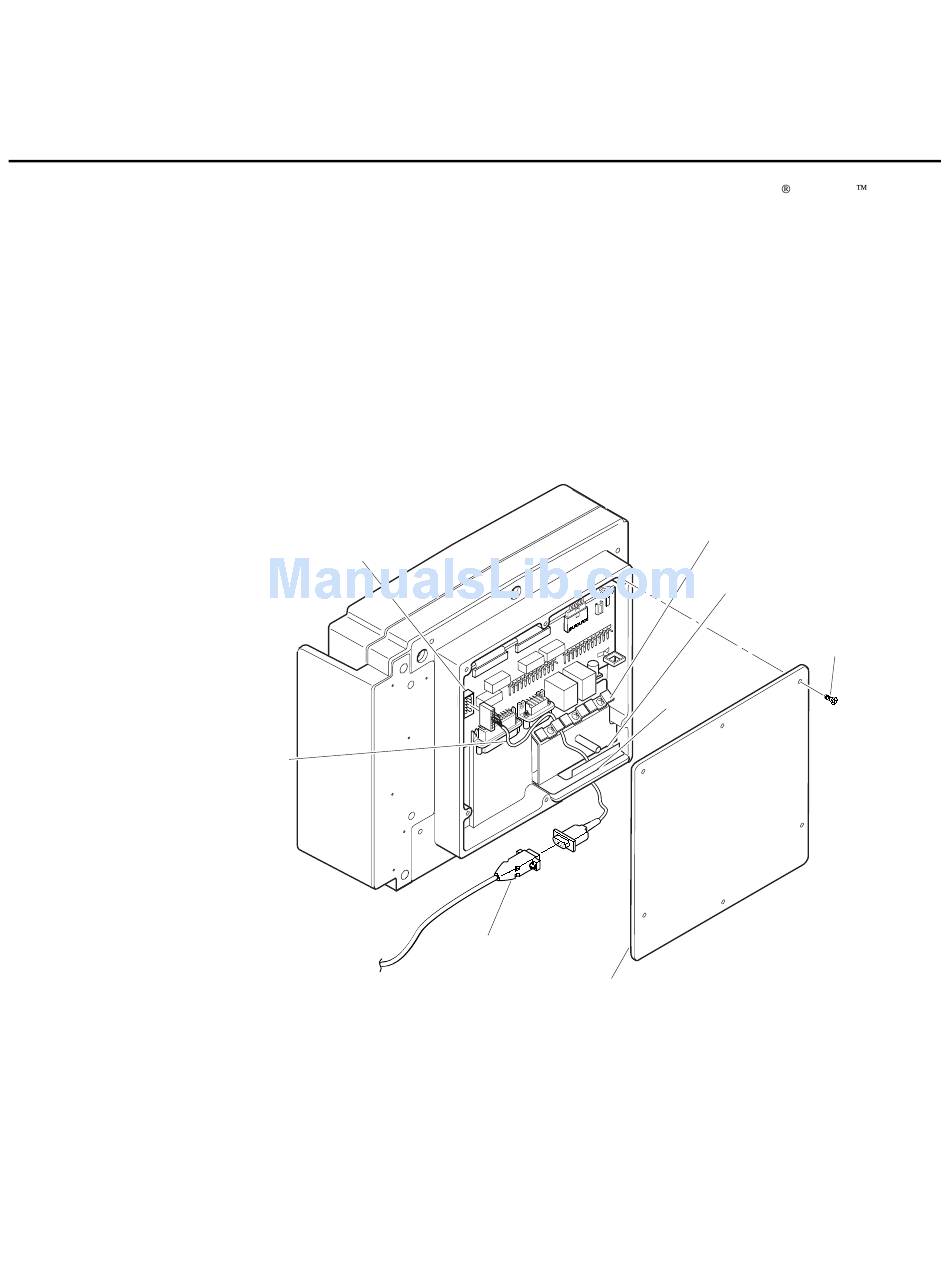

9-pin
RS-232
connector
Back panel
Cable
restraint
Cable
restraint
bar
Screw
(6 places)
Scissors
seal
248XIC4C.001
