ICON Level Pro ProScan Getting Started page 9

ProScan
®
Program Low or Empty
OK
Basic Settings
Display
Diagnostic
Service
Information

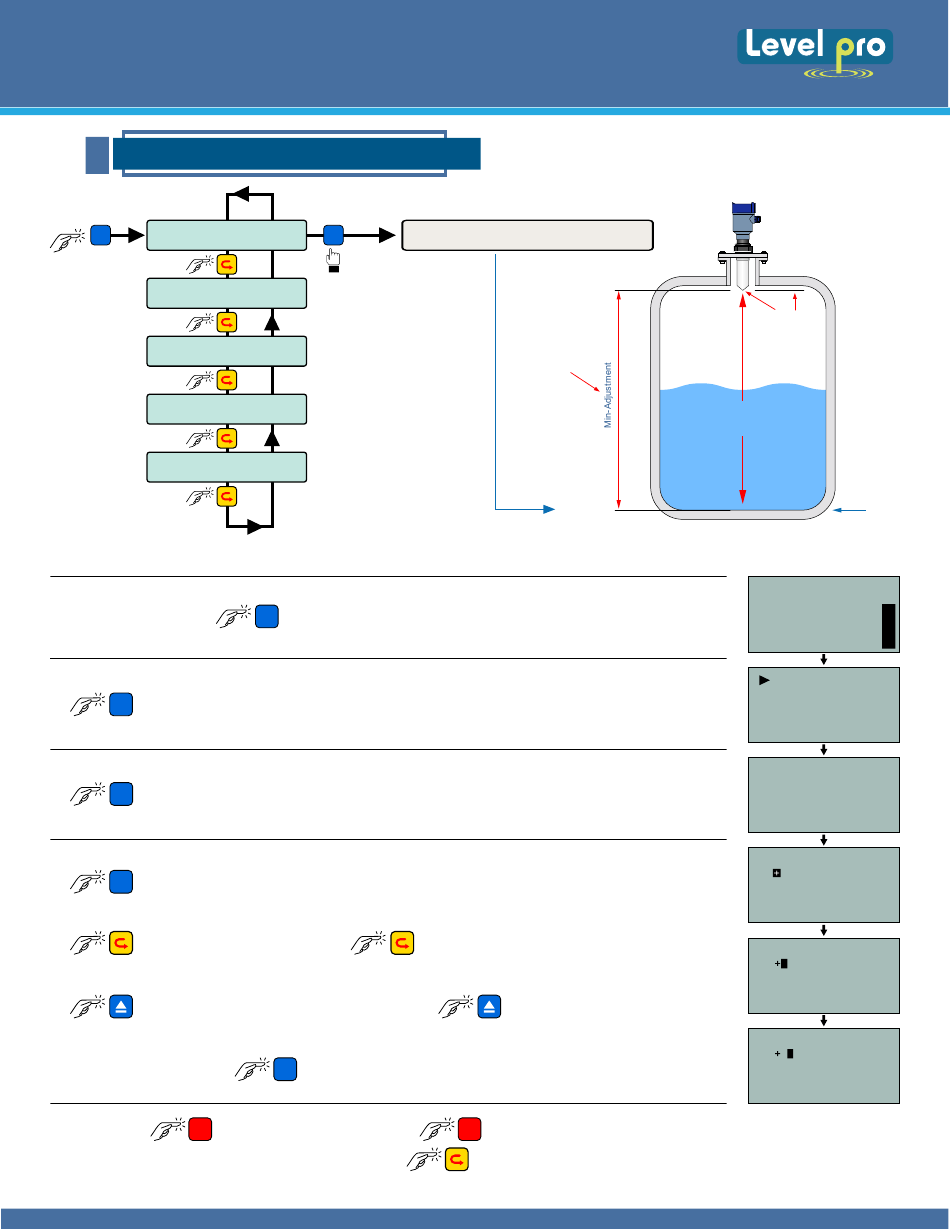

1. From the Main Screen,
to advance into the Basic } Sub- Programming } Min Adjustment Menu
OK
2.
to Enter the Range of the Sensor } Distance from Tip of Sensor to Bottom of the Tank
OK
3.
OK
4. again to switch to the distance (d) setting.
5. to move one segment to the right.
6. to increase the value of the number highlighted.
7. When the value is correct,
BK
8. When done, to return to the Main Menu, and
if you want to advance directly into Full Configuration
Quick-Start
} 4mA
Min Adjustment = 4mA Set-Point
OK
1
2
3
4
5
OK
to advance into the Main Menu
will scroll left to right and then back
to the first segment.
OK
to save the setting.
Enter this
Measurement for
Your Min
4mA
Min Fill Height = Distance from Tip of Sensor to Bottom of Tank
will scroll from 0 to 9 and back again.
BK a second time to return to the Main Screen;
Measurement
Point
Empty
0%
28.00
Levelpro
ft
Basic Setting
1
Display
Diagnostics
Service
Info
Min Adjustment
0.00%
32' 09" 1 ft (d)
Dist 07 05"m (d)
Min Adjustment
000.00%
32' 09" 1 ft (d)
Dist 07 05"m (d)
Min Adjustment
000.00%
32' 09" 1 ft (d)
Dist 7.07 ft (d)
Min Adjustment
000.00%
32' 09" 1 ft (d)
Dist 7.07 ft (d)
07
