ICON Level Pro ProScan Getting Started page 13

ProScan
®

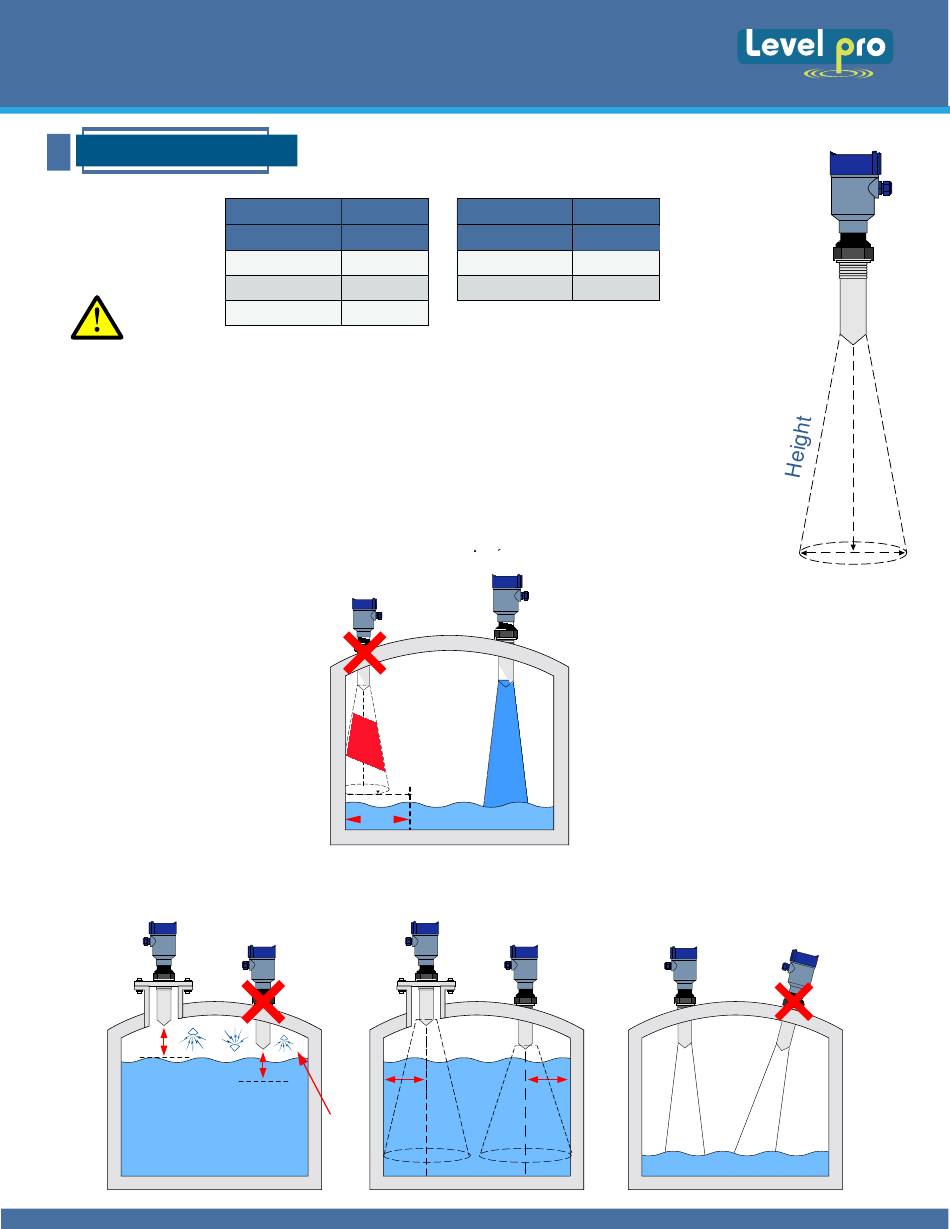

Installing Sensor
1.
The sensor must be installed with the antenna perpendicular to the surface of the liquid.
The sensor must be installed with a distance > 17.8" | 450mm from the side wall of the tank.
2.
The liquid level must not be allowed to enter into the Dead Band of the sensor.
3.
4. The sensor installation must be done in accordance with relevant local or federal safety regulations.
The sensor must be connected to electrical ground.
5.
Do not use the external housing to rotate the sensor into the installation fitting
6.
7. Make sure that all parts of the sensor exposed to the application, specifically any portion installed
within the tank, are suitable for the process.
8. Consider any effects from the application temperature, pressure or media.
Dead Band
Dead Band
Quick-Start
Beam Angle 22°
Height Dia.
10' 3.89'
20' 7.78'
30' 11.66'
Diameter
>17.8" (450 mm)
Noise
Beam Angle 22°
Height Dia.
5m 1.94m
10m 3.89m
>17.8" | 450mm
Diameter
11
