ProScan Radar Sensor
®
The ProScan is two-wire, pulse radar level transmitter that provides a continuous 4-20mA current output. This output
®
is directly proportional to the liquid level in a sump or a tank.
ProScan Radar Sensor
®
Warning: Liquids must remain at least 30cm from the antenna.
Note: ProScan ® Series: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at their own expense.
Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.
This instrument complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this instrument
may not cause harmful interference, and; (2) this instrument must accept any interference received, including interference that
may cause undesired operation.

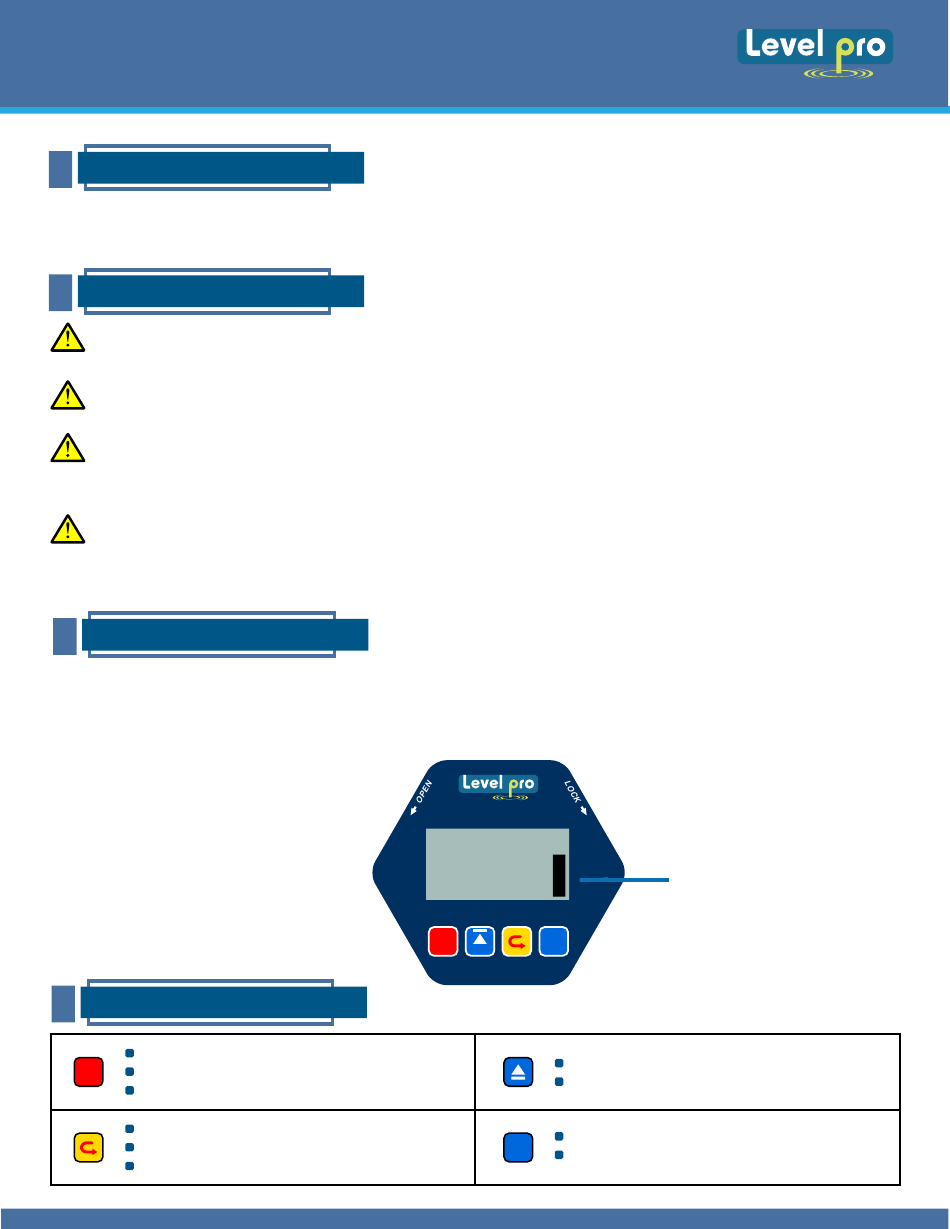

Programming Display

The removable display comprises a visual LCD dot matrix display with 4 separate push buttons. The factory measurement is preset to
feet, and the range of sensor is 32' 8" or 10M. The bar graph at the right side of the display indicates the current
level reading relative to the span - the distance between the 4mA | Empty and the 20mA | Full
Buttons & Description
Exit Programming Mode
Return to a Previous
BK
Display Echo Curve
Select Configuration Options
Select Digits to Edit
Display Current Program Parameters
ProScan ® Series
32.00
ft
Levelpro
www.iconprocon.com
BK OK
Edit Digits
Select Display Mode
Enter Configuration
OK
Confirm Edit
Level
Indication
Label
02
