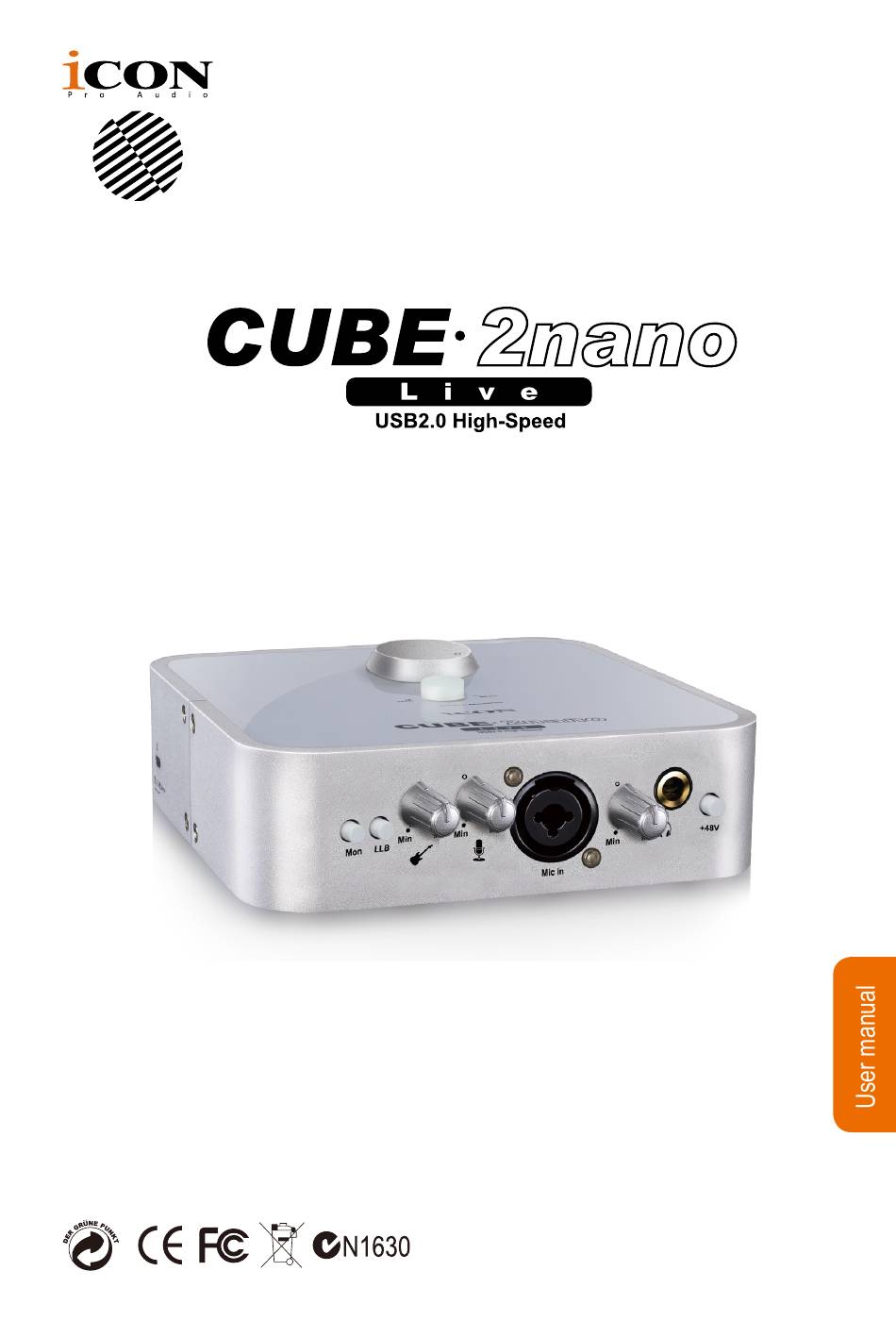

- Page 1 1 Mic-In / 1 Instrument-In, 2 Out professional recording USB interface with smart phone connectivity for live streaming application...
- Page 2 Important Safety Instructions 1. Read this manual thoroughly before using this unit. 2. Keep this manual for future reference. 3. Take notice of and comply with all warnings included in the user's manual or indicated on the appliance. 4. Follow all instructions included in this manual. 5.
-
Page 3: Table Of Contents
Contents Introduction ....................4 What’s in the package? ................4 Register your ICON ProAudio product to your personal account ...5 Features ....................6 Front Panel ....................7 Rear Panel....................8 Top Panel....................9 Windows driver installation ..............10 Mac driver installation ................13 ProDriver4 ....................15 Mixer control panel(Mac) ................16 Mixer control panel(Windows) ..............17... -
Page 4: Introduction
Introduction Thank you for purchasing the ICON ProAudio Cube2Nano Live digital audio Interface. We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete satisfaction, we will endeavor to make things right. -
Page 5: Register Your Icon Proaudio Product To Your Personal Account
Register your ICON ProAudio product to your personal account 1. Check serial number of your device Please go to http:// iconproaudio.com/registration or scan the QR code below. Input your device’s serial number and the other information on the screen. Click “Submit”. -
Page 6: Features
Features The ICON ProAudio Cube2Nano Live USB recording interface provides an audio input and output module as well as analog & digital connectivity with any Smart mobile device for live streaming applications. Main features include: ● 24-Bit 192KHz 1 mic-In/1 inst-In, 2-Out USB Recording Interface ●... -
Page 7: Front Panel
Front Panel 1. 3-pin XLR (Balanced) – For condenser microphone with +48V phantom power or dynamic microphone. Please refer to P.25 for the connection method of different types of microphones and instruments. 1/4” TS (Unbalanced) – For dynamic microphone Please refer to P.25 for the connection method of different types of microphones. 2. -
Page 8: Rear Panel
6. Power supply connector Cube2Nano Live is USB-bus powered. If your computer does not supply sufficient power, connect an ICON 5VDC power supply adapter to this jack. Or you may try to use your smart phone power adapter with the connect cable type (Android). -
Page 9: Top Panel
Top Panel 1. Direct Monitor button Press to monitor the input signal (i.e. microphone or instrument) through your headphones. Pressing In will allow for Direct monitoring of signal mean signal without computer processing. 2. Smart Phone Input Level Control Adjust to control the audio input level to the smart phone. -
Page 10: Windows Driver Installation
Windows driver installation Please follow the step-by-step procedures below to install your Cube2Nano Live USB recording interface and its driver. 1. Turn on your computer Note: Do not connect the Cube2Nano Live digital audio interface to your computer yet. 2. Download the Windows driver from your “Personal User Page at www.iconproaudio.com”... - Page 11 5. Select components for installation Check mark the components that you would like to install. We strongly recommend that you select all components. Cube 2Nano Device Drivers Diagram 4 6. Preparing installation files Once the installation process has started, the process may take some time depending Icon_Cube 2Nano_2.9.86.50.exe on your computer performance.
- Page 12 A window as shown in Diagram 9 should appear. Choose "Finish”. Diagram 9 9. Launch the software control panel You may click the ICON ProAudio logo on the system tray to launch the software control panel (Page 17). Cube 2Nano Cube 2Nano...
-
Page 13: Mac Driver Installation
Mac driver installation Cube2Nano Live is a class compliant device. Thus there is no driver installation needed for Mac. Also, it fully supports iOS devices by connecting the unit to a camera kit. Please follow the step-by-step procedures below to install your Cube2Nano Live USB recording interface. - Page 14 5. Connect your Cube2Nano Live digital audio interface Now connect the Cube2Nano Live digital audio interface to your Mac's USB port. Note: Cube2Nano Live audio interface Type-C 3.5mm only support USB2.0. Your Mac must have a USB2.0 port. Diagram 14 6.
-
Page 15: Prodriver4
Diagram 17 Introducing ProDriver4, the leading edge in audio innovation for stage, studio and streaming from Icon ProAudio. The ProDriver audio system supplys you with the most reliable tools for almost any audio application, in the moment, right when you need it. -
Page 16: Mixer Control Panel(Mac)
Mixer control panel(Mac) The mixers work like a matrix mixer. Activate and adjust the corresponding input or output channel level. They are very useful and make your inputs and outputs very flexible. You may route any of your input(s) to any output(s). Cube 2Nano Diagram 18 1. -
Page 17: Mixer Control Panel(Windows)
There are two different audio drivers including “WDM” (Windows Driver Model) and “ASIO” (Audio Stream Input and Output) within the ICON ProAudio audio interface driver. WDM are widely used for daily software such as media player and ASIO is mainly being used for most of the recording software such as LogicPro. - Page 18 Cube2Nano Diagram 19 By activating different cross points, you may route the corresponding signal to your desired channels. 1. HW Input 1/2 level metering Showing the hardware 1/2 input level (HW In 1/2). 2. HW Output 1/2 level metering Showing the hardware 1/2 output level (HW Out 1/2). 3.
- Page 19 8. VSC Music In 1/2 (Virtual) input level metering Showing the WDM 1/2 output level (VSC music In 1/2). 9. VSC Out 1/2 (Virtual) output level metering Showing the ASIO 1/2 VC output level (VSC Out 1/2). 10. VSC Music Out 1/2 (Virtual) output level metering Showing the ASIO 1/2 VC output level (VSC music Out 1/2).
-
Page 20: Settings (Sample Rate And Latency Settings)
Settings (Sample rate and latency settings) Click the “Setting” button to launch the settings window. Diagram 20 Sample rate setting Select your desired sampling rate from 44.1KHz to 192KHz on the pull down window shown in Diagram 21. Diagram 21... - Page 21 Latency settings There are six standard latency settings to select. If you would like to customize your own latency value, select custom. ● Safe (maximum latency) ● Extra Large ● Normal ● Small ● Very Small ● Minimum (minimum latency) ●...
- Page 22 There are three different settings you can adjust to customize your own latency settings: These values include: 1. ASIO buffer Size You may adjust the value ranging from 32/64/128/256/512/1024/2048 and 4096. Diagram 23 2. Streaming buffer Size Adjustable settings: Minimum/Low/Normal/High and Maximum. Diagram 24...
- Page 23 3. Streaming buffer volume Adjustable values: 2/3 and 4. Diagram 25 Diagram 26 (Note: If a warning message appears on the “Latency Status” windows, please select a larger latency setting.) (Note: If a clicking sound occurs, you should change to a larger buffer size for the settings.
-
Page 24: Prodriver4 Hosting Rack
ProDriver4 hosting rack With the ProDriver4 Rack, you can use any of your plug-ins with your DAW. Or you may use your device as a standalone plug-ins effector without the need to run a DAW. -
Page 25: Hardware Connections
Hardware Connections Connect the Cube2Nano Live digital audio interface outputs to your amplifier, powered monitors. If you are monitoring through headphones, connect your headphones to the device's headphone output. Connect your microphone/guitar to the device's analog input. Mac / PC Power Pack Power Pack... -
Page 26: Different Types Of Microphone Connection Method Diagram
Different types of microphone connection method diagram Dynamic Microphone (D2) 1/4” TR Unbalanced Balanced Condenser Microphone (Apollo) Note: For dynamic microphone user, please make sure +48V phantom power switch is “OFF” before you plug in your microphone, otherwise it may cause damage to your microphone. -
Page 27: Specifications
Specifications Mic Input: Frequency Response: ........22Hz to 22kHz (+/-0.1dB) Dynamic Range: ..........112dB, A-weighte Signal-to-Noise Ratio:........-112dB, A-weighted THD+N: ............-98dB Crosstalk:............-97dB @ 1kHz Input Impedance: ..........Mic in: 1.8K Ohms, typical Adjustable Gain: ..........+34dB Inst Input: Frequency Response: ........ -
Page 28: Services
Pack the unit in its original packaging including end card and box. This is very important. If you have lost the packaging, please make sure you have packed the unit properly. ICON is not responsible for any damage that occurs due to non-factory packing. - Page 29 天猫官方旗舰店 抖音号 哔哩哔哩 微信公众号 官方售后QQ B站iCONProAudio 4006311312.114.qq.com 天猫店iconproaudio旗舰店 抖音iCON艾肯 微信号iCON-PRO 中国地区用户 Twitter Instagram Facebook Youtube www.twitter.com/iconproaudio www.instagram.com/iconproaudio www.facebook.com/iconproaudio www.youtube.com/iconproaudio Support Dashboard Website www.iconproaudio.com support.iconproaudio.com iconproaudio.com/dashboard/...
