Risk of Property Damage.
Do not use the RJ-12 cable or any other field bus cable or electrical cable to support the weight of the
MAP Gateway. Hanging the MAP Gateway from anything other than the supplied lanyard may result in
damage to the product or peripheral equipment.
Risque de dégâts matériels.
Ne pas utiliser le câble RJ-12 ou tout autre câble de bus de terrain ou câble électrique pour soutenir le
poids de l'MAP Gateway. La suspension de l'MAP Gateway à tout autre élément que la longe fournie
risque d'endommager le produit ou les équipements périphériques.

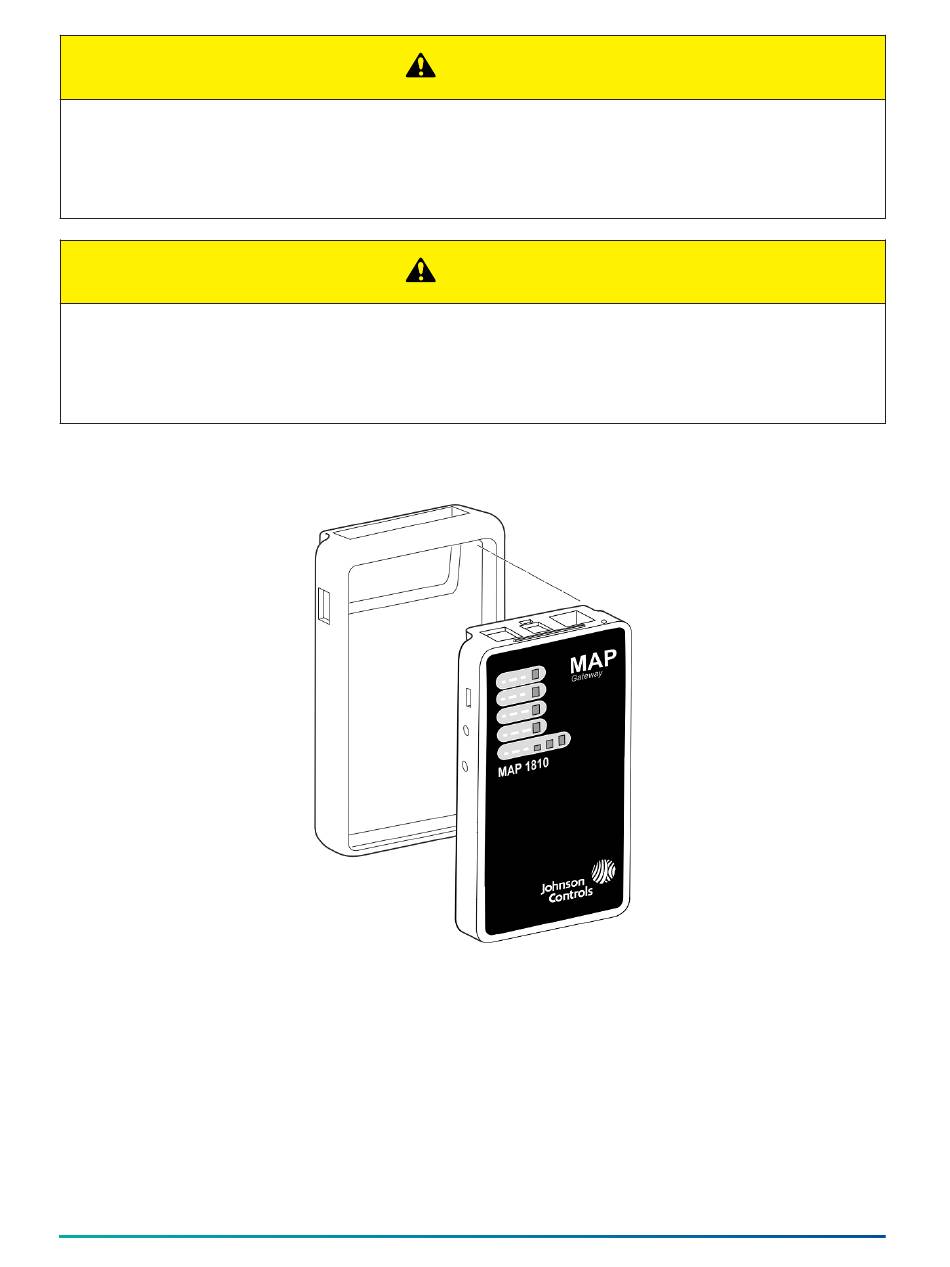

Figure 1: Portable MAP Gateway and Protective Shell

Mounting

Permanent Mounting

When used in a stationary configuration, the MAP Gateway is permanently mounted using the
provided bracket with the stationary MAP Gateway. We recommend the following three ways to
mount the unit: vertically (upright and flush), horizontally (sideways and flush), or perpendicularly
(perpendicular to the wall). This flexibility allows the unit to be mounted in a way that minimizes
spacial constraints and maximizes placement options for optimal wireless signal strength.
8
CAUTION
CAUTION
Mobile Access Portal Gateway Installation Guide
