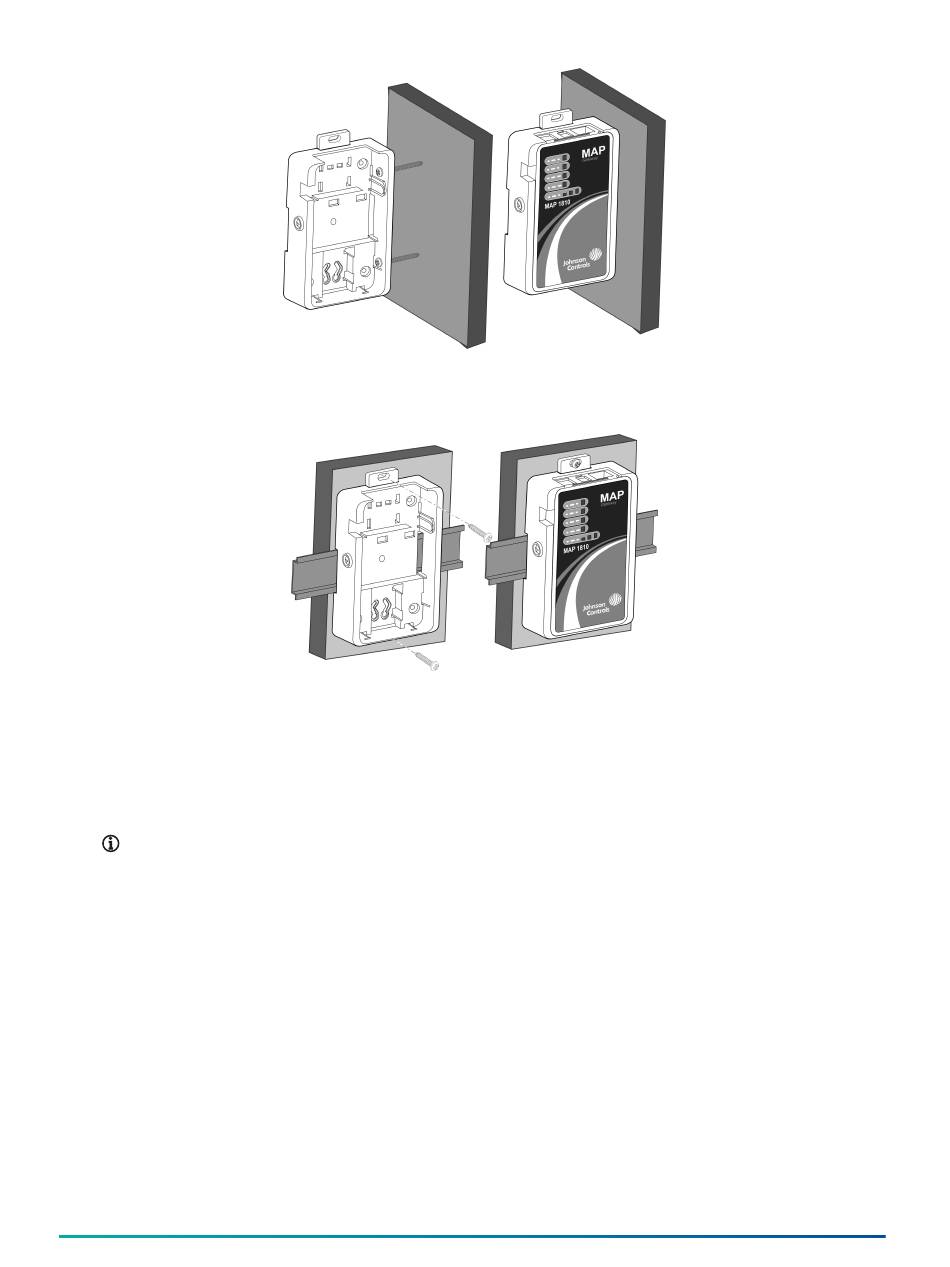

Figure 5: Sample Permanent Mounting, Side Screws
Figure 6: Sample Permanent Mounting, DIN Rail Screw Holes
To mount the bracket on a flat surface (such as a wall):
1.
Pull the bottom mounting clip outward to the extended position.
2.
Mark mounting hole locations on the wall using the dimensions shown in Figure 7, Figure
8, or Figure 9; or hold the bracket against the wall and mark the hole locations through the
mounting clips.
Note: The position of the location holes depends on whether the bracket is mounted
horizontally or vertically.
Mobile Access Portal Gateway Installation Guide
11
