2 INSTALLATION
2.9 Connecting empty container alarm
2.10 Other connections
24 (48)
Connect both 3-pole male connectors with the respective female
connectors.
Then connect the hoses from the empty container alarm to the
respective hose.
A

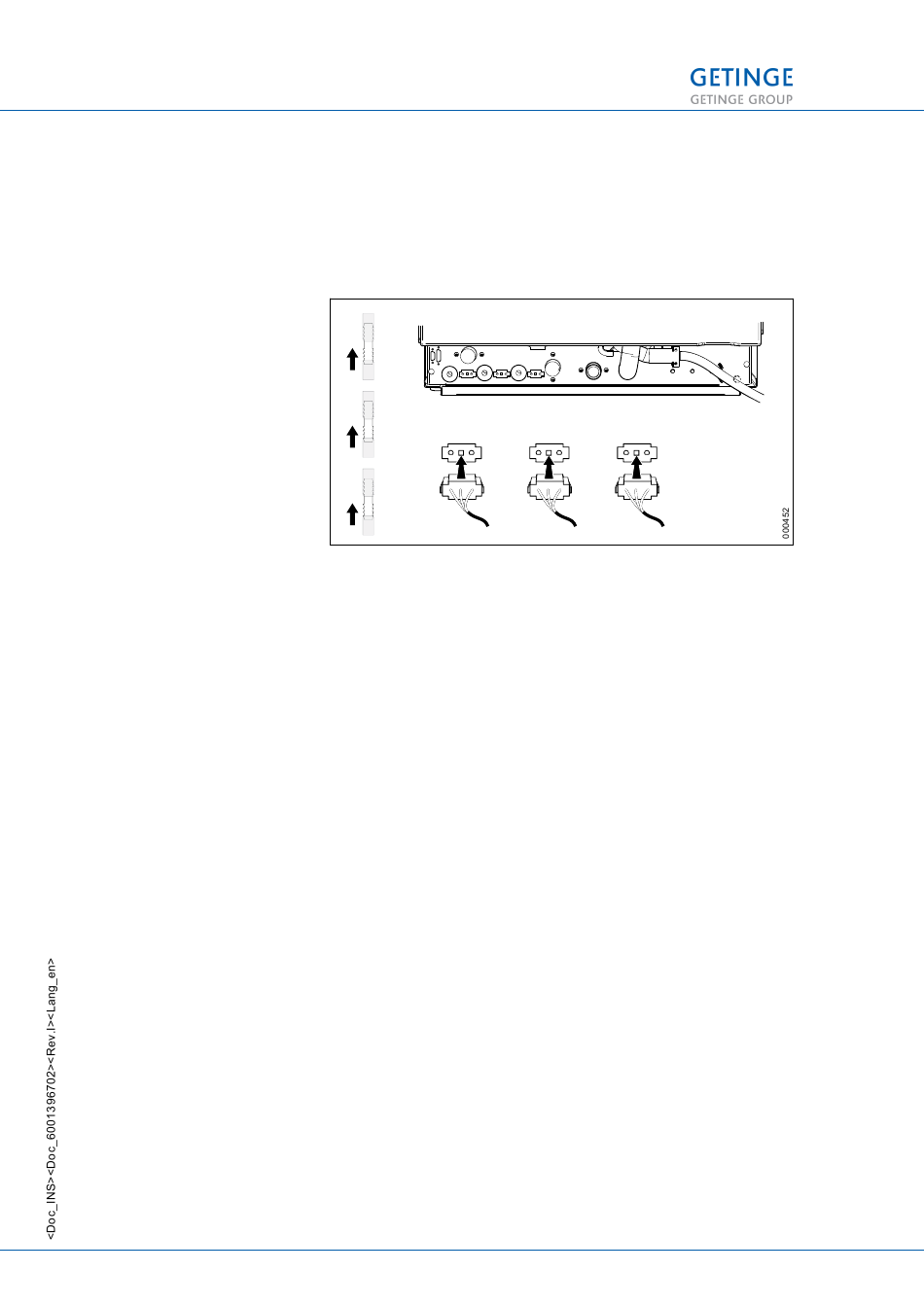

Figure 10. Empty container alarm connection
A. DOS 3 Neutralizing agent
B. DOS 2 Rinse-aid
C. DOS 1 Detergent
A Lexmark A4 laser printer or a Martel printer can be connected to
the machine using the RS232 outlet on the rear of the machine.
Netcom can also be connected to the RS232 outlet.
INSTALLATION MANUAL GETINGE WD15 CLARO
