2.7.5 Connections

2.7.6 Connection waste cooling (Option)

22 (48)
A
B
C
11 10 9 8 7

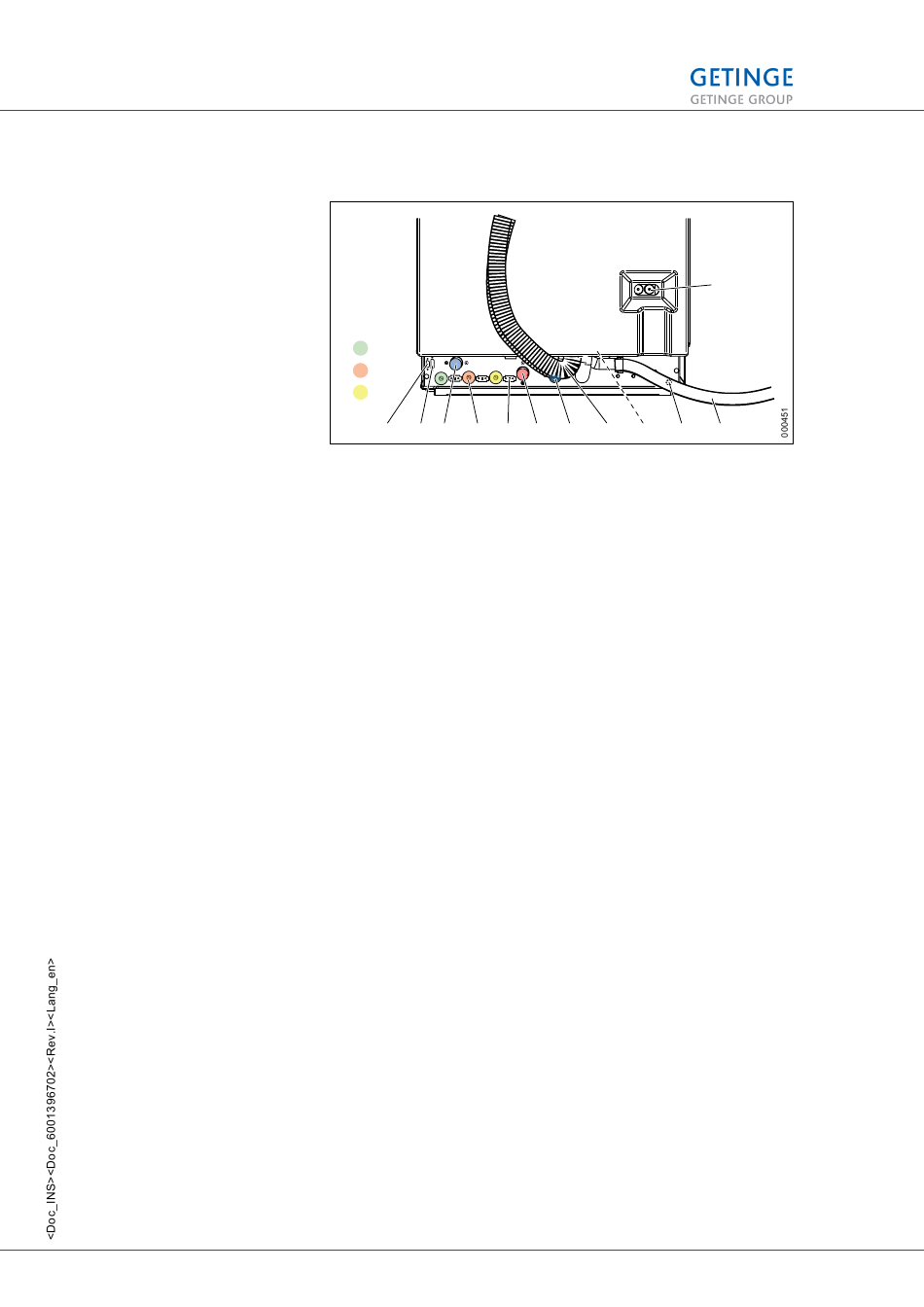

Figure 9. Connections
1. Electrical connection
2. Grounding point
3. Connection waste
cooling
4. Waste hoses
5. DI water
6. Hot Water
A. DOS 3 Neutralizing agent
B. DOS 2 Rinse-aid
C. DOS 1 Detergent
Connect the hose for feeding water into the waste cooling to the
water supply.
INSTALLATION MANUAL GETINGE WD15 CLARO
6 5 4 3 2
7. Empty container
alarm
8. Dosage
9. Cold Water
10. External dosage
11. Printer/Netcom
