2.13 When the work is complete, check that

28 (48)
To activate the function in the machine, do the following:
Change the following to activate the dosing pumps:
Set up machine functions
04 DETERGENT 3
Set up machine functions
05 DETERGENT 4

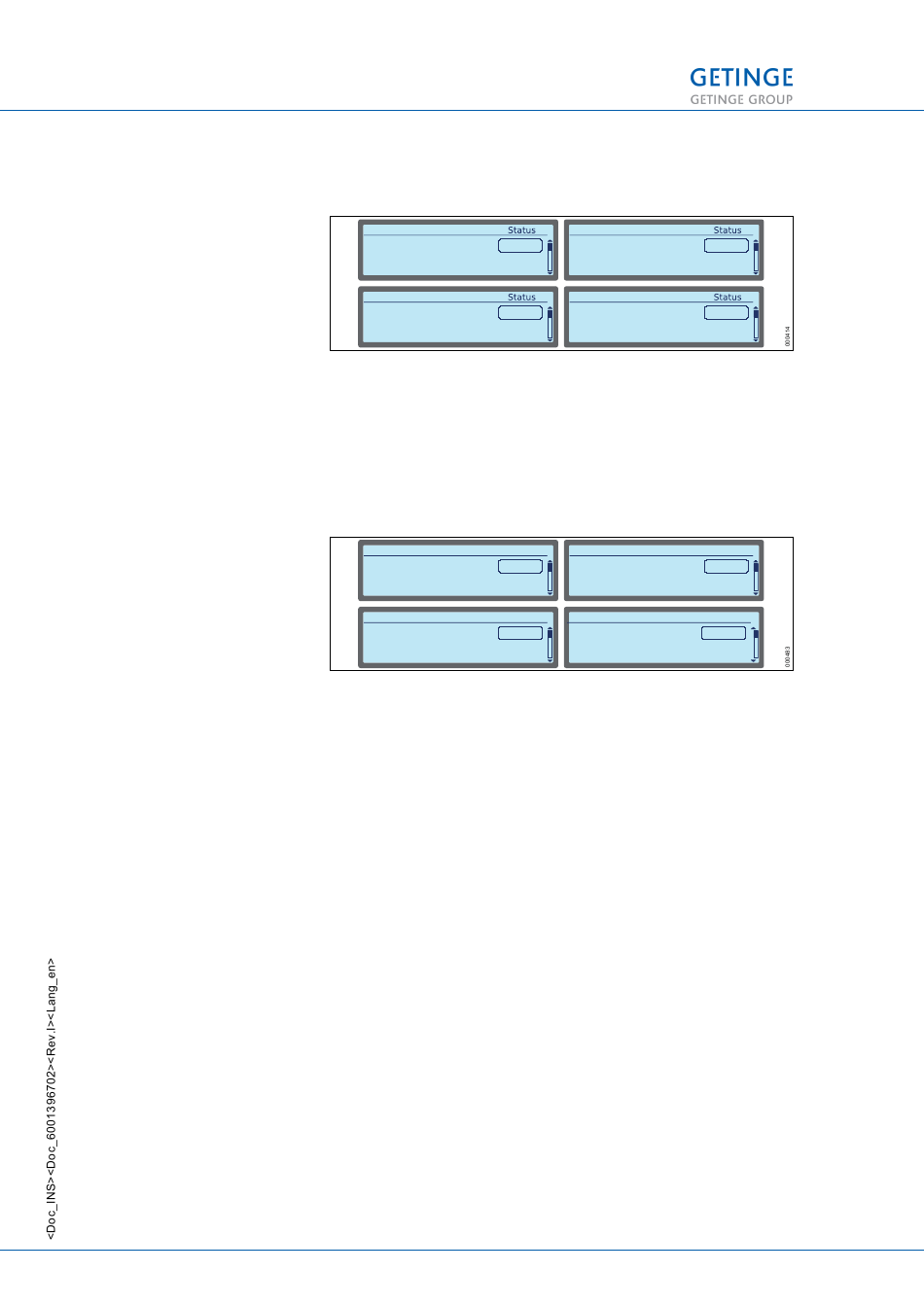

Figure 14. Change status dosage
By changing from 0 to 1 in the column the DIP switches for dosing
and flow monitoring are activated. After the external dosing is
activated, the dosing pumps have to be calibrated. (See the
technical manual.)
The following DIP switches must be changed to activate flow
monitoring:
Set up machine functions
08 FLOW CONTROL 3
Set up machine functions
09 FLOW CONTROL 4
Figure 15. Change status flow control
By changing from 0 to 1 in the column the DIP switches for dosing
and flow monitoring are activated.
• all parts have been installed in accordance with the
installation instructions
• all screws have been properly tightened
• there are no sharp edges on any parts that may come into
contact with people
• all hoses, pipes and connections are intact and free from
defects
• all the functions of the machine are working properly. Adjust if
necessary.
• make sure that the dosing system works in every respect.
Carry out an Installation Qualification, an Operating Qualification,
and a Performance Qualification according to ISO 15883 before
putting the machine into service. Incorrect use may result in
damage to objects and personal injury.
