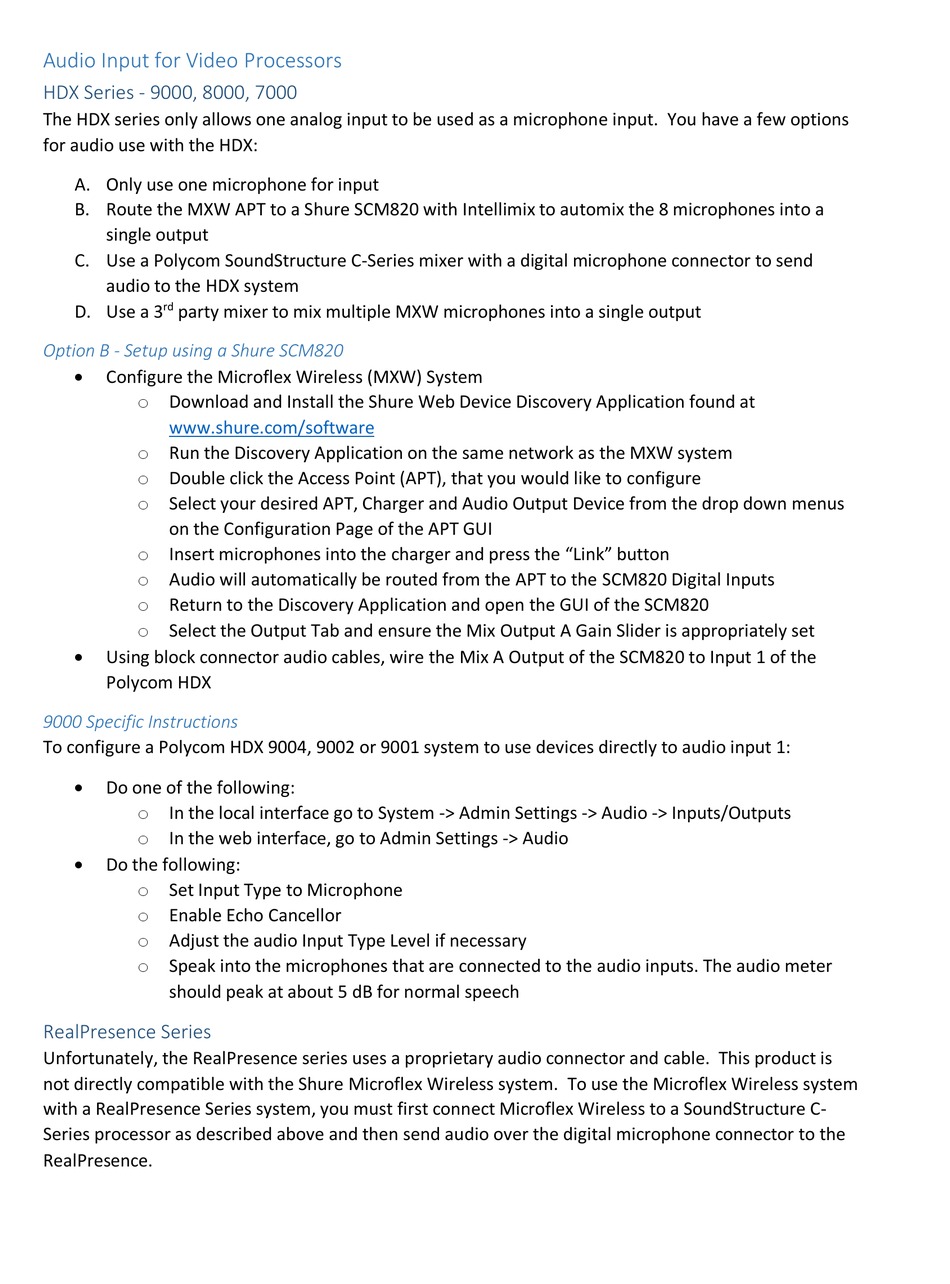

Audio Input for Video Processors

HDX Series - 9000, 8000, 7000

The HDX series only allows one analog input to be used as a microphone input. You have a few options
for audio use with the HDX:
A. Only use one microphone for input
B. Route the MXW APT to a Shure SCM820 with Intellimix to automix the 8 microphones into a
single output
C. Use a Polycom SoundStructure C-Series mixer with a digital microphone connector to send
audio to the HDX system
rd
D. Use a 3 party mixer to mix multiple MXW microphones into a single output
Option B - Setup using a Shure SCM820

Configure the Microflex Wireless (MXW) System
o Download and Install the Shure Web Device Discovery Application found at
www.shure.com/software
o Run the Discovery Application on the same network as the MXW system
o Double click the Access Point (APT), that you would like to configure
o Select your desired APT, Charger and Audio Output Device from the drop down menus
on the Configuration Page of the APT GUI
o Insert microphones into the charger and press the "Link" button
o Audio will automatically be routed from the APT to the SCM820 Digital Inputs
o Return to the Discovery Application and open the GUI of the SCM820
o Select the Output Tab and ensure the Mix Output A Gain Slider is appropriately set

Using block connector audio cables, wire the Mix A Output of the SCM820 to Input 1 of the
Polycom HDX
9000 Specific Instructions
To configure a Polycom HDX 9004, 9002 or 9001 system to use devices directly to audio input 1:

Do one of the following:
o In the local interface go to System -> Admin Settings -> Audio -> Inputs/Outputs
o In the web interface, go to Admin Settings -> Audio

Do the following:
o Set Input Type to Microphone
o Enable Echo Cancellor
o Adjust the audio Input Type Level if necessary
o Speak into the microphones that are connected to the audio inputs. The audio meter
should peak at about 5 dB for normal speech
RealPresence Series
Unfortunately, the RealPresence series uses a proprietary audio connector and cable. This product is
not directly compatible with the Shure Microflex Wireless system. To use the Microflex Wireless system
with a RealPresence Series system, you must first connect Microflex Wireless to a SoundStructure C-
Series processor as described above and then send audio over the digital microphone connector to the
RealPresence.
