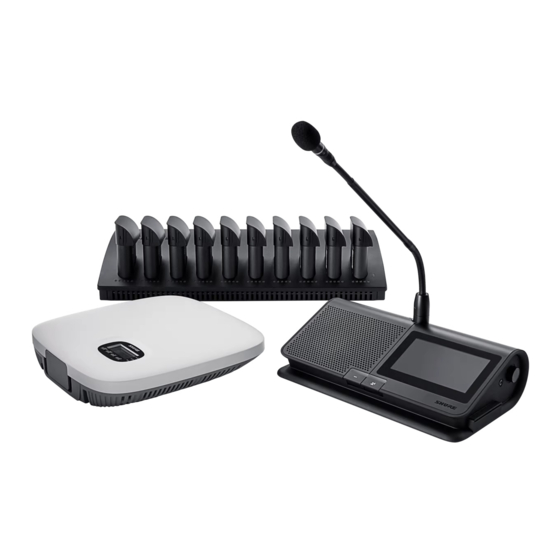

Shure MXCW Getting Started

More Information Available Online
A comprehensive online user guide is available at pubs.shure.com.

Getting Started

Set up the system access point (MXCWAPT)
Power over Ethernet (PoE)
MXCWAPT
Connect to power over ethernet
MXCWAPT
PoE
PoE
1. Connect the access point to Power over Ethernet (PoE) source to turn on the device.
2. Wait for the access point to scan the area.
Insert battery
3. The best Wi-Fi channel is automatically selected
Set up the microphone units (MXCW640)
Insert battery
MXCW640
SBC930
MXCW640
SBC930
Speak
1. Insert batteries to turn on the devices.
2. Wait for the microphone units to search for the default access point network (= default).
Speak
3. The units are ready when the LEDs stop flashing and the touchscreen displays the home-screen.
©2017 Shure Incorporated
Access point setup
Wi-Fi scan
Access point setup
Wi-Fi scan
Microphone unit setup
Searching...
Microphone unit setup
Searching...
Test the audio
Listen
Test the audio
Listen
MXCW Getting Started
Channel selected
Channel selected
Connected
Connected
Ready to go!
Ready to go!
Visit shure.com/mxcw for
more information
Visit shure.com/mxcw for
more information
default
default
1/2
