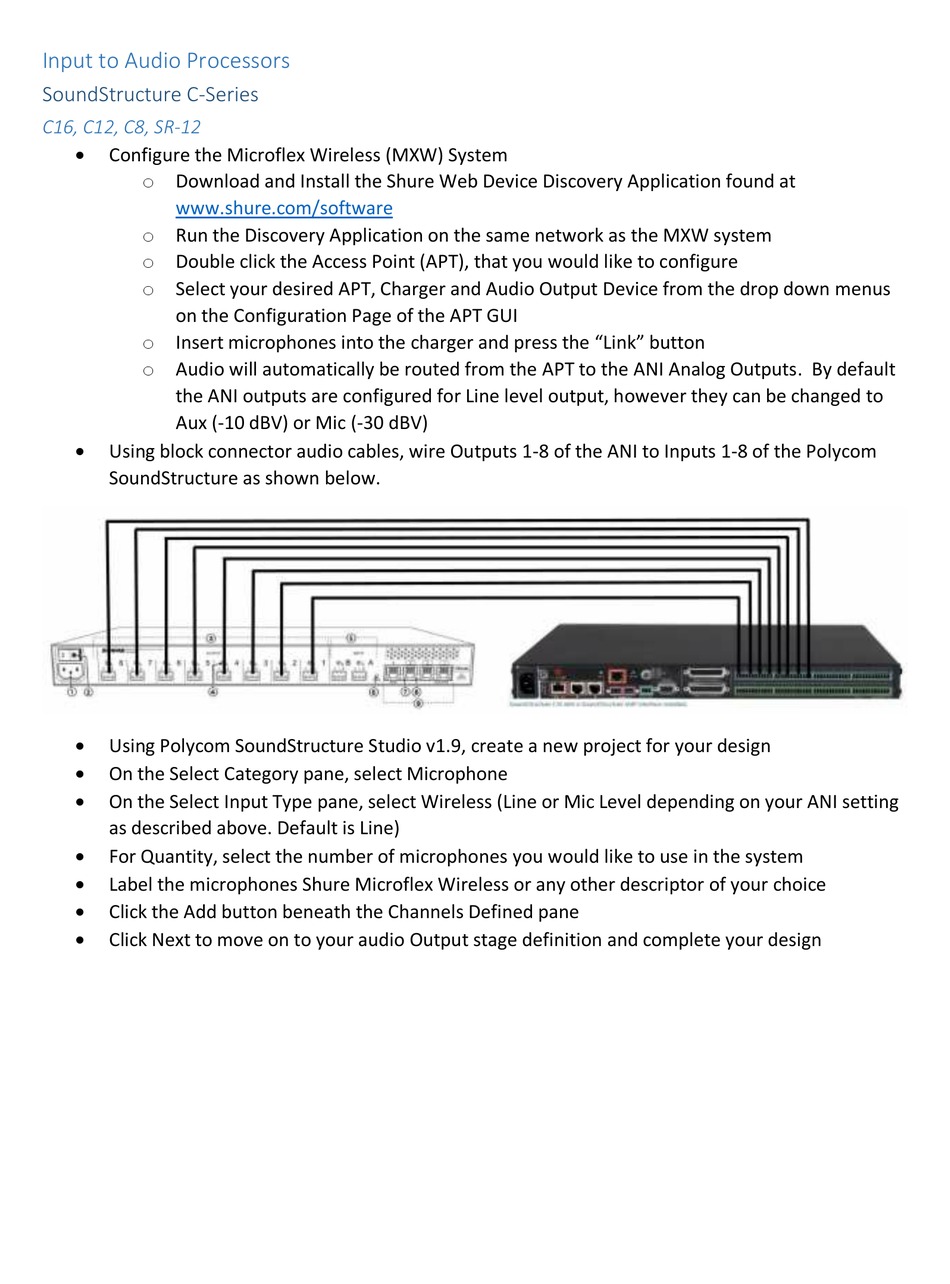

Input to Audio Processors

SoundStructure C-Series

C16, C12, C8, SR-12

Configure the Microflex Wireless (MXW) System
o Download and Install the Shure Web Device Discovery Application found at
www.shure.com/software
o Run the Discovery Application on the same network as the MXW system
o Double click the Access Point (APT), that you would like to configure
o Select your desired APT, Charger and Audio Output Device from the drop down menus
on the Configuration Page of the APT GUI
o Insert microphones into the charger and press the "Link" button
o Audio will automatically be routed from the APT to the ANI Analog Outputs. By default
the ANI outputs are configured for Line level output, however they can be changed to
Aux (-10 dBV) or Mic (-30 dBV)

Using block connector audio cables, wire Outputs 1-8 of the ANI to Inputs 1-8 of the Polycom
SoundStructure as shown below.

Using Polycom SoundStructure Studio v1.9, create a new project for your design

On the Select Category pane, select Microphone

On the Select Input Type pane, select Wireless (Line or Mic Level depending on your ANI setting
as described above. Default is Line)

For Quantity, select the number of microphones you would like to use in the system

Label the microphones Shure Microflex Wireless or any other descriptor of your choice

Click the Add button beneath the Channels Defined pane

Click Next to move on to your audio Output stage definition and complete your design
