SMART-AVI XTPRO Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO
Format RGBHV, RGsB,YUV, Y/C, CVBS
Up to 1900 x 1200 VGA, SVGA, XGA,
Resolution
SXGA
Connector Type HD 15 socket
AUDIO
Signal Type Stereo unbalanced
Connector 3.5 mm jack socket
OTHER
5VDC @.5A,
Power Supply
2.1 mm DC jack (center +ve)
Dimensions 5.3" W x 3.5" D x .9" H
Weight .8 lbs
Operating Temp. 0 to 40°C (32° to 104° F)
Storage Temp. -20° to 60°C (-4° to 140° F)
Humidity Up to 95% (non-condensing)
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
UXGA/YUV/YC, Audio,
XTP-TX 1
RS-232, IR CAT5 Transmitter
UXGA/YUV/YC, Audio,
XTP-RX 1
RS-232, IR CAT5 Receiver
5VDC0.5A 2 5VDC0.5A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

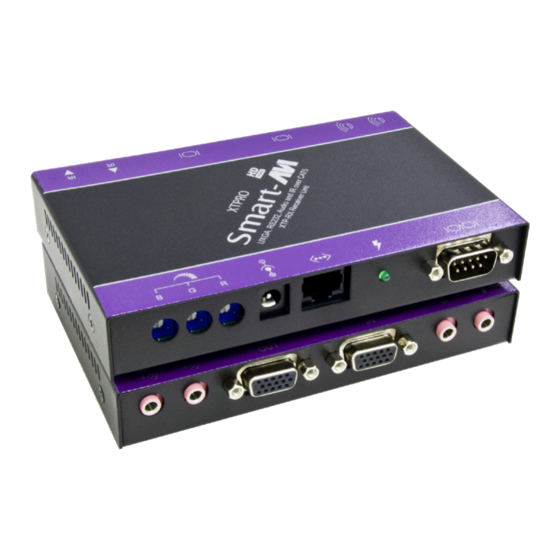

XTPRO
SXGA, AUDIO, RS-232 AND IR
1,000 FT OVER CAT5 EXTENDER
USE A SINGLE CAT5 CABLE
TO BROADCAST
HIGH RESOLUTION SXGA,
STEREO AUDIO, RS-232 AND IR
UP TO 1,000 FT AWAY
Quick Start Guide
