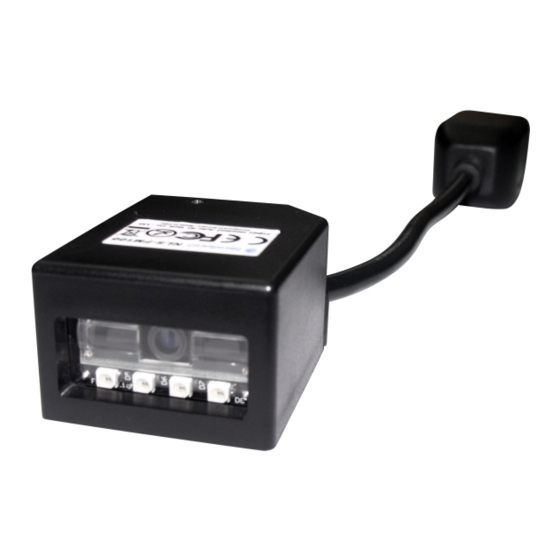

Newland NLS-FM100-M-U Integration Manual

Fixed mount barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

NLS-FM100-M-U
NLS-FM100-M-RC
NLS-FM100-M-00
Fixed Mount Barcode Scanner
Integration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NLS-FM100-M-U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newland NLS-FM100-M-U

Summary of Contents for Newland NLS-FM100-M-U

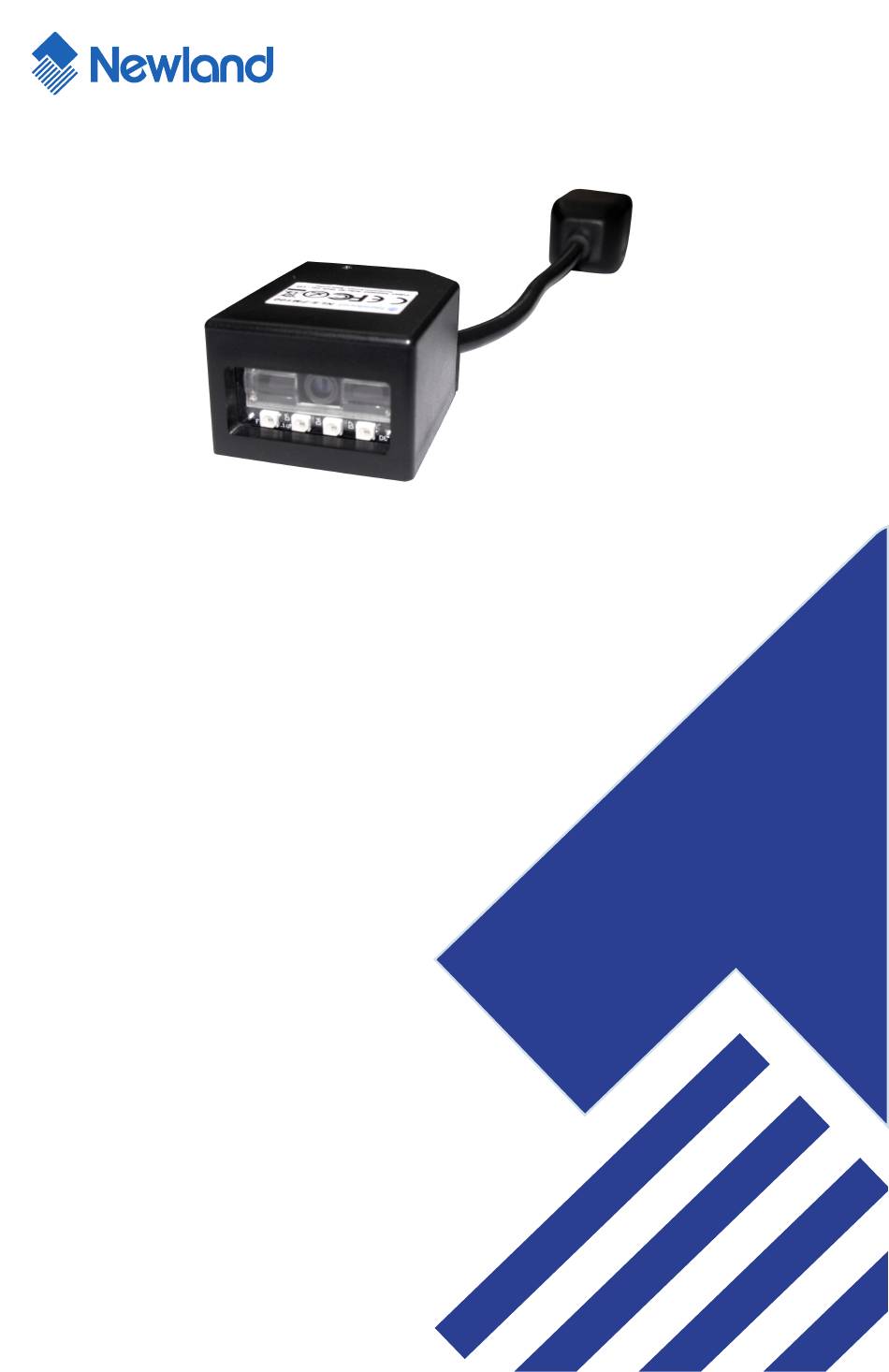

  • Page 1 NLS-FM100-M-U NLS-FM100-M-RC NLS-FM100-M-00 Fixed Mount Barcode Scanner Integration Guide...
  • Page 2 Revisions Version Description Date V1.0 Initial release. 2011-11-03 V1.1 Deleted the Auto Mode section. 2014-10-16 V1.2 Updated the supported keyboard layouts; added the instructions of setting 2015-11-24 the Reading a Barcode Time Length and Interval Length for the Interval Mode. V1.2.1 Added the USB COM Port Emulation feature.
  • Page 3 Newland Auto-ID. No right to copy a licensed program in whole or in part is granted except as permitted under copyright law or as hereinafter expressly provided. The user agrees to maintain Newland Auto-ID’s copyright notice on the licensed programs delivered hereunder, and to include the same on any authorized copies it makes in whole or in part.

  • Page 4: Table Of Contents

    Table of Contents 请更换节标题 Contents About this guide Introduction ..............................1 Graphic Notations ............................1 Newland Auto-ID Support Center ....................... 2 Getting to Start Introduction ..............................3 Unpacking ..............................4 Unpacking ............................. 4 Outline of FM100 ..........................4 Data Interface ............................5 Communication Ports ..........................
  • Page 5 Table of Contents Serial Port Programming ........................... 28 Baud Rate ............................28 Check ..............................29 Stop Bit ............................... 30 Flow Control ............................31 Data Bit ............................... 32 USB Programming ............................. 34 USB HID-KBW ..........................34 USB COM Port Emulation ......................... 34 USB HID-KBW ............................
  • Page 6 Table of Contents Enable/Disable AIM 128 ........................50 AIM 128 Code ID ..........................50 Select Message Length ........................51 EAN-8 ................................ 52 Load Factory Default .......................... 52 Enable/Disable EAN-8 ........................52 EAN-8 Code ID ..........................52 2 Digits Addenda Code ........................53 5 Digits Addenda Code ........................
  • Page 7 Table of Contents Select Message Length ........................70 Febraban ..............................71 Disable/Enable Febraban ........................71 Transmit Delay............................ 71 ITF-6 ................................73 ITF-6 Code ID ............................ 73 ITF-14 ................................ 74 ITF-14 Code ID ..........................74 Deutshe14 ..............................75 Load Factory Default .......................... 75 Disable/Enable Deutshe14 ........................
  • Page 8 Table of Contents Load Factory Default .......................... 93 Enable/Disable Codabar ........................93 Codabar Code ID ..........................93 Check Digit ............................94 Transmit Start & Stop Character......................95 Select Message Length ........................96 Code 93 ..............................97 Load Factory Default .......................... 97 Enable /Disable Code 93 ........................

  • Page 9: About This Guide

    About this guide Introduction This guide provides general instructions of integrating and setting up the FM100 series fixed mount barcode scanner (hereinafter referred to as "FM100" or "the scanner"). Graphic Notations Tool – Handy item for a task. Attention – Important subject to be aware of or to avoid. Tips –...

  • Page 10: Newland Auto-Id Support Center

    About this guide Newland Auto-ID Support Center If you have a problem with your equipment, contact the Newland Support Center in your region. Before call- ing, have the model number, serial number, and several of your barcodes at hand. Call the support Center from a phone near the scanning equipment so that the service person can try to talk you through your problem.

  • Page 11: Getting To Start

    Getting to Start Introduction FM100-M (hereafter referred to as FM100) is a 1D barcode reader. Newland Auto-ID patented technology ensure FM100 fast image capture and accurate decoding. It provides the customer the best value. This chapter presents an overall picture of how to use FM100 step by step. Please have an FM100 handy.

  • Page 12: Unpacking

    Getting to Start Unpacking Unpacking Unpack FM100 and accessories. Check with the packing list. Make sure that there is no damage or missing part(s). If any damage or missing parts, please keep the original package and contact your supplier for services.

  • Page 13: Data Interface

    Getting to Start Unpacking Data Interface PIN 10 PIN 1 Cable Slot Function Type Name Null Null Power DC5V Serial Port Output，RS232 Serial Port Input，RS232 Null Null Ground USB Data Signal nlscan.com Page 5...

  • Page 14: Communication Ports

    Getting to Start Communication Ports FM100 must connect to a Host to operate. A Host can be PC, POS, or any intelligent terminal with at least one of the following communication ports: USB, RS232, or PS/2. 1、 USB port on Host： 2、...
  • Page 15 Getting to Start Connecting with USB Cable 1、 Insert USB Cable (RJ45 male head) into FM100 cable slot; 2、 Insert USB Cable (USB male head) into Host’s (female) USB connector; nlscan.com Page 7...
  • Page 16 Getting to Start Connecting with RS232 Cable 1、 Insert RS232 cable (RJ45 male head) into FM100 cable slot; 2、 Insert RS232 cable (RS232 male head) into Host’s (female) RS232 connector; 3、 Connect RS232 cable and the mains with power adapter; nlscan.com Page 8...

  • Page 17: Dimensions Of Fm100 Unit

    Getting to Start Dimensions of FM100 Unit M3 machine skew 12.5mm 26mm 29mm 37mm 4.8mm 10.3mm 11.5mm 49mm nlscan.com Page 9...

  • Page 18: General Programming

    General Programming Introduction There are 2 ways to program (configure) the scanner, Code Programming and Command Programming. Code Programming The scanner reads a set of specially encoded barcodes to program options and features. In the following sections, we will explain the options and features available and provide the barcodes to program them. This method of programming the scanner is most straight forward.

  • Page 19: Programming Notation

    General Programming General Programming Programming Notation Tools Code Programming ON Code Programming OFF Code Programming Off 【Pro CMD：99900032】 This is the notation to disable the Code Programming. There are 3 parts of a notation: 1、 The barcode for Code Programming 2、...
  • Page 20 General Programming General Programming Code Programming Tools Code Programming ON Read the “Code Programming ON” barcode to activate “Code Program- ming” function. More than one Code Programming barcodes can be read to configure the scanner. Code Programming OFF If an option or feature needs additional parameters, such as digits, they can be found at the end of this chapter.

  • Page 21: Command Programming

    General Programming Command Programming Commands under RS232 connection mean using 0x20-0x7D（the displayable characters）to express all commands information. 1、 Configuration State The scanner should be in configuration state when programming functions under RS232 connection. In the state, the scanner would only accept and execute the commands from communication and feed back.
  • Page 22 General Programming Command Programming 3、Flow Chart Host sends“$$$$” and receives“@@@@” Non-Configuration Configuration 5 seconds timeout， receives“^^^^” State State Host sends“%%%%” and receives“^^^^” Host sends commands， such as“#XXXX ” Receives feedback which Executing Unsuccessful begins with “?”and Commands ends with“;” Successful Receives feedback which Is it a query begins with “!”and...

  • Page 23: Default

    General Programming General Programming Default Tools Code Programming ON Factory Default Read “Load All Factory Default” to reset all parameters to factory default. Code Programming OFF Applicable conditions: User options programming wrong configuration leads to reading mal- » function Forget details of previous programming and start over. »...

  • Page 24: Reading Mode

    General Programming General Programming Reading Mode Tools Code Programming ON Interval Mode After programming, the scanner will start interval scan without trigger. The interval Code Programming OFF between two scans is fixed whether the scan is successful or not. The value of interval could be programmed by user and the default value is 1s.

  • Page 25: Sensor Mode

    General Programming General Programming Reading Mode Tools Code Programming ON Sensor Mode After programming, the scanner will start to sense the environment without trigger. Code Programming OFF After a scan, it will stop and keep sensing to wait another illumination changing. In sensor mode, a trigger also can start a scan.

  • Page 26: Continuous Mode

    General Programming General Programming Reading Mode Tools Code Programming ON Continuous Mode After programming, the scanner will be in continuous mode without trigger. After Code Programming OFF a successful scan，the scanner will be in waiting state until another scan, then wait again.
  • Page 27 General Programming General Programming Reading Mode Tools Code Programming ON Delayed Sensor Mode After programming, the scanner will start to sense the environment without trigger. Code Programming OFF There will be a delay before a scan. After a scan, it will stop and keep sensing to wait another illumination changing.

  • Page 28: Command Triggered Mode

    General Programming General Programming Reading Mode Tools Code Programming ON Command Triggered Mode After programming, when FM100 receives trigger sweep command from Code Programming OFF terminal（e.g. PC）or read "Start Analog Trigger" barcode, the scanner will start to work. PS: If reading is successful, data will be returned and the scanner wil stop working automatically.

  • Page 29: Security Level

    General Programming General Programming Security Level Tools Code Programming ON The higher the value of Security Level is, the lower the probility of mis-decoding and the decoding speed are. Otherwise, the speed is higher. Code Programming OFF Security Level 1 【Pro CMD：99900120】...

  • Page 30: Beeper

    General Programming General Programming Beeper Tools Code Programming ON Code Programming OFF No Beeper Output 【Pro CMD：99900130】 High Frequency & Loud Volume Low Frequency & Loud Volume 【Pro CMD：99900131】 【Pro CMD：99900137】 High Frequency & Medium Volume Low Frequency & Medium Volume 【Pro CMD：99900132】...

  • Page 31: Others

    General Programming General Programming Others Tools Code Programming ON Start/Stop Temporary Mute Code Programming OFF Temporary Mute Start 【Pro CMD：99900040】 Temporary Mute Stop 【Pro CMD：99900041】 nlscan.com Page 23...

  • Page 32: Query Command

    Query Command Tools Introduction Code Programming ON After reading interrelated programming barcodes, the scanner will feed information needed back to the Host to achieve the purpose of query. Code Programming OFF Query Product Information 【Pro CMD：99900300】 Query Manufacturing Date 【Pro CMD：99900303】 Query Hardware Version 【Pro CMD：99900301】...

  • Page 33: Communication Programming

    Communication Programming Introduction Under RS232 connection the scanner and the Host use the same communication parameters: baud rate, parity check, data bits select and stop bits select. nlscan.com Page 27...

  • Page 34: Serial Port Programming

    Communication Setup Serial Port Programming Tools Code Programming ON Baud Rate Code Programming OFF Under RS232 connection, the scanner and the Host should set communication baud rate to the same to keep normal communication. Baud rate is the bits transmitted per second (8 bits per bytes). The scanner and the Host must communicate at the same baud rate.

  • Page 35: Check

    Communication Programming Communication Programming Serial Port Programming Tools Code Programming ON Check Code Programming OFF No Check 【Pro CMD：99902120】 Even Check 【Pro CMD：99902122】 Odd Check 【Pro CMD：99902121】 nlscan.com Page 29...

  • Page 36: Stop Bit

    Communication Programming Communication Programming Serial Port Programming Tools Code Programming ON Stop Bit Code Programming OFF 1 Stop Bit 【Pro CMD：99902131】 2 Stop Bit 【Pro CMD：99902133】 nlscan.com Page 30...

  • Page 37: Flow Control

    Communication Programming Communication Programming Serial Port Programming Tools Code Programming ON Flow Control Code Programming OFF No Flow Control 【Pro CMD：99902140】 nlscan.com Page 31...

  • Page 38: Data Bit

    Communication Programming Communication Programming Serial Port Programming Tools Code Programming ON Data Bit Code Programming OFF 8 Data Bit 【Pro CMD：99902150】 8 Data Bit, No Check, 2 Stop Bit 【Pro CMD：99902163】 8 Data Bit, No Check, 1 Stop Bit 【Pro CMD：99902160】 8 Data Bit, Even Check, 2 Stop Bit 【Pro CMD：99902164】...
  • Page 39 Communication Programming Communication Programming Serial Port Programming Tools Code Programming ON Code Programming OFF 7 Data Bit 【Pro CMD：99902151】 7 Data Bit, Even Check, 2 Stop Bit 【Pro CMD：99902170】 7 Data Bit, Even Check, 1 Stop Bit 【Pro CMD：99902166】 7 Data Bit, Odd Check, 2 Stop Bit 【Pro CMD：99902171】...

  • Page 40: Usb Programming

    Communication Programming Communication Programming USB Programming Tools Code Programming ON USB HID-KBW Code Programming OFF USB HID-KBW 【Pro CMD：99902300】 USB COM Port Emulation USB COM Port Emulation 【Pro CMD：99902301】 nlscan.com Page 34...

  • Page 41: Usb Hid-Kbw

    Communication Programming Communication Programming USB HID-KBW Tools Code Programming ON Keyboard Layout Code Programming OFF No.1 U.S. 【Pro CMD：99902201】 No.7 Spain 【Pro CMD：99902207】 No.2 Germany 【Pro CMD：99902202】 No.8 Belgium 【Pro CMD：99902210】 No.3 French 【Pro CMD：99902203】 No.9 Denmark No.4 Italy 【Pro CMD：99902211】 【Pro CMD：99902204】...

  • Page 42: Character Delay

    Communication Programming Communication Programming USB HID-KBW Tools Code Programming ON Character Delay Character Delay is programmable in 5ms increments from 0ms (default) to 75ms. Code Programming OFF Character Delay 【Pro CMD：99902220】 Set the character delay to 70ms: Read “Code Programming ON” Read “Character Delay”...

  • Page 43: Data Format

    Data Format Introduction 1D barcodes could contain digits, letters and symbols, etc. 2D barcodes could contain more data, such as Chinese characters and other multi-byte characters. However, in reality, they do not and should not have enough information we need, such as barcode type, date and time of scan, delimiter, and so on, in order to keep the code short and flexible.

  • Page 44: Prefix Sequences

    Data Format Data Format Prefix Sequences Tools Code Programming ON Code Programming OFF CodeID+User Prefix+AIMID 【Pro CMD：99904010】 User Prefix+CodeID+AIMID 【Pro CMD：99904011】 nlscan.com Page 38...

  • Page 45: User Prefix

    Data Format Data Format User Prefix Tools Code Programming ON Disable or Enable User Prefix Code Programming OFF User Prefix is added before barcode message. For example, if the user prefix is “AB” and the barcode message is “123”, the Host receives “AB123”.

  • Page 46: Aim Prefix

    Data Format Data Format AIM Prefix Tools Code Programming ON AIM (Automatic Identification Manufactures) defines AIM prefix for many standard barcode formats. The scanner will add the identifier before the barcodes. And this identifier is the AIM Prefix. And please see Appendix to find the AIM Code Programming OFF ID list.

  • Page 47: Code Id Prefix

    Data Format Data Format Code ID Prefix Tools Code Programming ON Besides AIM prefix, Code ID prefix can be used to denote barcode format and can be customized. Code Programming OFF The Code ID prefix MUST be one (1) or two(2) visible English letters, capital or small, only.

  • Page 48: User Suffix

    Data Format Data Format User Suffix Tools Code Programming ON Disable or Enable User Suffix Code Programming OFF User suffix is appended to the right of barcode message. For example, if user suffix is “AB”, and the barcode message is “123”, The Host receives “123AB”. Disable User Suffix 【Pro CMD：99904100】...

  • Page 49: Terminal

    Data Format Data Format Terminal Tools Code Programming ON Disable or Enable Terminal “Terminal” is the termination for a string of barcode messages. It is fixed to the Code Programming OFF right and the very end of a barcode transmission. The major difference between "Terminal"...

  • Page 50: Introduction

    Symbols Introduction Each type of barcode has its unique attribute. With the programming code, the scanner will adjust to the changes of these attributes. Disabling reading of the symbols which do not apply will improve reading performance. nlscan.com Page 44...

  • Page 51: Global Settings

    Symbols Global Settings Tools Code Programming ON Video Reverse Regular barcode: Dark image on a bright background. Code Programming OFF Inverse barcode: Bright image on a dark background. Video Reverse allows the scanner to read barcodes that are inverted. Video Reverse ON: Read both regular barcodes and inverse barcodes. Video Reverse OFF: Read regular barcodes only.

  • Page 52: Code 128

    Symbols Code 128 Tools Code Programming ON Load Factory Default Code Programming OFF Load Code 128 Factory Default 【Pro CMD：99910000】 Enable/Disable Code 128 Enable Code 128 【Pro CMD：99910002】 Disable Code 128 【Pro CMD：99910001】 When the scanner can not read Code 128, please read“Enable Code 128” and try again.

  • Page 53: Select Message Length

    Symbols Code 128 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Code 128. The scanner will send an error beep, if the decoded data length does not match the valid Code Programming OFF length.

  • Page 54: Ucc/Ean-128

    Symbols UCC/EAN-128 Tools Code Programming ON Load Factory Default Code Programming OFF Load UCC/EAN-128 Factory Default 【Pro CMD：99910100】 Enable/Disable UCC/EAN-128 Enable UCC/EAN-128 【Pro CMD：99910102】 Disable UCC/EAN-128 【Pro CMD：99910101】 When the scanner can not read UCC/EAN-128, please read “Enable UCC/EAN-128” and try again.

  • Page 55: Select Message Length

    Symbols UCC/EAN-128 Tools Code Programming ON Select Message Length It is used to program the valid reading length of UCC/EAN-128. The scanner will send an error beep, if the decoded data length does not match the valid Code Programming OFF length.

  • Page 56: Aim 128

    Symbols AIM 128 Tools Code Programming ON Load Factory Default Code Programming OFF Load AIM 128 Factory Default 【Pro CMD：99910200】 Enable/Disable AIM 128 Enable AIM 128 【Pro CMD：99910202】 Disable AIM 128 【Pro CMD：99910201】 When the scanner can not read AIM 128, please read “Enable AIM 128” and try again. AIM 128 Code ID Code ID Setting 【Pro CMD：99910205】...

  • Page 57: Select Message Length

    Symbols AIM 128 Tools Code Programming ON Select Message Length It is used to program the valid reading length of AIM 128. The scanner will send an error beep, if the decoded data length does not match the valid length. Code Programming OFF AIM 128 Message Length is defined by “Min.

  • Page 58: Load Factory Default

    Symbols EAN-8 Tools Code Programming ON Load Factory Default Code Programming OFF Load EAN-8 Factory Default 【Pro CMD：99910400】 Enable/Disable EAN-8 Enable EAN-8 【Pro CMD：9991402】 Disable EAN-8 【Pro CMD：99910401】 When the scanner can not read EAN-8, please read “Enable EAN-8” and try again. EAN-8 Code ID Code ID Setting 【Pro CMD：99910416】...

  • Page 59: Digits Addenda Code

    Symbols EAN-8 Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF Disable 2 Digits Addenda Code 【Pro CMD：99910405】 Only Read With 2 digits Addenda Code 【Pro CMD：99910407】...

  • Page 60: Expand To Ean-13

    Symbols EAN-8 Tools Code Programming ON EAN-8 expand to EAN-13 “ Do Not Expand to EAN-13 “ — keep original type and digits, do not Code Programming OFF expand. “Expand to EAN-13 by Adding Leading 0s “ — expand to EAN-13 but keep code type.

  • Page 61: Load Factory Default

    Symbols EAN-13 Tools Code Programming ON Load Factory Default Code Programming OFF Load EAN-13 Factory Default 【Pro CMD：99910500】 Disable/Enable EAN-13 Enable EAN-13 【Pro CMD：99910502】 Disable EAN-13 【Pro CMD： 99910501 】 When the scanner can not read EAN-13, please read “Enable EAN-13” and try again. nlscan.com Page 55...

  • Page 62: Check Digit

    Symbols EAN-13 Tools Code Programming ON Check Digit EAN-13 is fixed 13 digits barcode and the last digit is check digit. Check digit Code Programming OFF is a value caculated from all digits. It is used for checking if the all 13 digits are right.

  • Page 63: Digits Addenda Code

    Symbols EAN-13 Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF Disable 2 Digits Addenda Code 【Pro CMD：99910505】 Only Read With 2 digits Addenda Code 【Pro CMD：99910507】...

  • Page 64: Issn

    Symbols ISSN Tools Code Programming ON Load Factory Default Code Programming OFF Load ISSN Factory Default 【Pro CMD：99910600】 Enable/Disable ISSN Enable ISSN 【Pro CMD：99910602】 Disable ISSN 【Pro CMD：99910601】 When the scanner can not read ISSN, please read “Enable ISSN” and try again. ISSN Code ID Code ID Setting 【Pro CMD：99910603】...

  • Page 65: Isbn

    Symbols ISBN Tools Code Programming ON Load Factory Default Code Programming OFF Load ISBN Factory Default 【Pro CMD：99910700】 Enable/Disable ISBN Enable ISBN 【Pro CMD：99910702】 Disable ISBN 【Pro CMD：99910701】 When the scanner can not read ISBN, please read “Enable ISBN” and try again. nlscan.com Page 59...

  • Page 66: Isbn Digits

    Symbols ISBN Tools Code Programming ON ISBN Digits Code Programming OFF Use 13 Digits 【Pro CMD：99910704】 Use 10 Digits 【Pro CMD：99910703】 ISBN Code ID Code ID Setting 【Pro CMD：99910705】 Example of setting ISBN Code ID to “p” (0x70) 1. Read Enable Code Programming barcode. 2.

  • Page 67: Upc-E

    Symbols UPC-E Tools Code Programming ON Load Factory Default Code Programming OFF Load UPC-E Factory Default 【Pro CMD：99911000】 Disable/Enable UPC-E Enable UPC-E 【Pro CMD：99911002】 Disable UPC-E 【Pro CMD：99911001】 When the scanner can not read UPC-E, please read “Enable UPC-E” and try again. nlscan.com Page 61...

  • Page 68: Check Digit

    Symbols UPC-E Tools Code Programming ON Check Digit UPC-E is fixed 8 digits barcode and the last digit is check digit. Check digit Code Programming OFF is a value caculated from all digits. It is used for checking if the all 8 digits are right.

  • Page 69: Digits Addenda Code

    Symbols UPC-E Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF Disable 2 Digits Addenda 【Pro CMD：99911005】 Only Read With 2 digits Addenda Code 【Pro CMD：99911007】...

  • Page 70: Transmit Default "0

    Symbols UPC-E Tools Code Programming ON Transmit Default “0” The first byte of UPC-E is default to “0”. Code Programming OFF Do Not Transmit “0” 【Pro CMD：99911013】 Transmit “0” 【Pro CMD：99911014】 UPC-E Expand to UPC-A “ Do Not Expand “ — keep original type and digits, do not expand. “Expand to UPC-A “...

  • Page 71: Upc-A

    Symbols UPC-A Tools Code Programming ON Load Factory Default Code Programming OFF Load UPC-A Factory Default 【Pro CMD：99911100】 Disable/Enable UPC-A Enable UPC-A 【Pro CMD：99911102】 Disable UPC-A 【Pro CMD：99911101】 When the scanner can not read UPC-A, please read “Enable UPC-A” and try again. UPC-A Code ID Code ID Setting 【Pro CMD：99911115】...

  • Page 72: Check Digit

    Symbols UPC-A Tools Code Programming ON Check Digit UPC-A is fixed 13 digits barcode and the last digit is check digit. Check digit Code Programming OFF is a value caculated from all digits. It is used for checking if the all 13 digits are right.

  • Page 73: Digits Addenda Code

    Symbols UPC-A Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF Disable 2 Digits Addenda Code 【Pro CMD：99911105】 Only Read With 2 digits Addenda Code 【Pro CMD：99911107】...

  • Page 74: Interleaved 2 Of 5

    Symbols Interleaved 2 of 5 Tools Code Programming ON Load Factory Default Code Programming OFF Load Interleaved 2 of 5 Factory Default 【Pro CMD：99911200】 Disable/Enable Interleaved 2 of 5 Enable Interleaved 2 of 5 【Pro CMD：99911202】 Disable Interleaved 2 of 5 【Pro CMD：99911201】...

  • Page 75: Check Digit

    Symbols Interleaved 2 of 5 Tools Code Programming ON Check Digit Interleaved 2 of 5 may include Check Digit (not compulsory) following its barcode messages. If included, it could be the last digit. It verifies the barcode Code Programming OFF message.

  • Page 76: Select Message Length

    Symbols Interleaved 2 of 5 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Interleaved 2 of 5. The Code Programming OFF scanner will send an error beep, if the decoded data length does not match the valid length.

  • Page 77: Febraban

    Symbols Febraban Tools Code Programming ON Disable/Enable Febraban Code Programming OFF Disable Febraban 【Pro CMD：99911211】 Enable Febraban, Do Not Expand 【Pro CMD：99911212】 Enable Febraban, Expand 【Pro CMD：99911213】 Transmit Delay This feature is available only when USB HID-KBW is enabled. Transmit Delay per Character applies to both expanded and unexpanded Febraban while Transmit Delay per 12 Characters applies to expanded Febraban only.
  • Page 78 Symbols Febraban Tools Code Programming ON Custom Transmit Delay per Character: This parameter is programmable in 5ms increments from 0ms to 75ms. To set it, scan the Custom Transmit Delay per Character barcode and two numeric barcodes (00-15, which represent 0-75ms). Code Programming OFF The default value is 70ms.

  • Page 79: Itf-6 Code Id

    Symbols ITF-6 Tools Code Programming ON ITF-6 is a fixed length 6 bytes Interleaved 2 of 5 barcode with check digit. When enabled, ITF-6 precedes 6-byte Interleaved 2 of 5 barcode. Code Programming OFF Load ITF-6 Factory Default 【Pro CMD：99911300】 Enable ITF-6, Do Not Transmit Check Digit 【Pro CMD：99911301】...

  • Page 80: Itf-14 Code Id

    Symbols ITF-14 Tools Code Programming ON ITF-14 is a fixed length of 14 bytes Interleaved 2 of 5 barcode with Check digit. By factory default, it is disabled. Code Programming OFF When enabled, ITF-14 precedes 14-byte Interleaved 2 of 5 barcode. Load ITF-14 Factory Default 【Pro CMD：99911400】...

  • Page 81: Deutshe14

    Symbols Deutshe14 Tools Code Programming ON Load Factory Default Code Programming OFF Load Deutshe14 Factory Default Deutshe14 Factory Default Factory Default 【Pro CMD：99911500】 Disable/Enable Deutshe14 Enable Deutshe14，Do Not Transmit Check Digit 【Pro CMD：99911502】 Disable Deutshe14 【Pro CMD：99911501】 Enable Deutshe14， Transmit Check Digit 【Pro CMD：99911503】...

  • Page 82: Deutshe12

    Symbols Deutshe12 Tools Code Programming ON Load Factory Default Code Programming OFF Load Deutshe12 Factory Default Deutshe12 Factory Default Factory Default 【Pro CMD：99911600】 Disable/Enable Deutshe12 Enable Deutshe12，Do Not Transmit Check Digit 【Pro CMD：99911602】 Disable Deutshe12 【Pro CMD：99911601】 Enable Deutshe12， Transmit Check Digit 【Pro CMD：99911603】...

  • Page 83: Coop25（Japanese Matrix 2 Of 5

    Symbols COOP25（Japanese Matrix 2 of 5） Tools Code Programming ON Load Factory Default Code Programming OFF Load COOP25 Factory Default 【Pro CMD：99911700】 Enable/ Disable COOP25 Enable COOP25 【Pro CMD：99911702】 Disable COOP25 【Pro CMD：99911701】 When the scanner can not read COOP25, please read “Enable COOP25” and try again. COOP25（Japanese Matrix 2 of 5）...

  • Page 84: Check Digit

    Symbols COOP25（Japanese Matrix 2 of 5） Tools Code Programming ON Check Digit COOP25 may include Check Digit (not compulsory) following its barcode Code Programming OFF messages. If included, it may be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and transmit »...

  • Page 85: Select Message Length

    Symbols COOP25（Japanese Matrix 2 of 5） Tools Code Programming ON Select Message Length It is used to program the valid reading length of COOP25. The scanner will Code Programming OFF send an error beep, if the decoded data length does not match the valid length. COOP25 Message Length is defined by “Min.

  • Page 86: Matrix 2 Of 5( European Matrix 2 Of 5)

    Symbols Matrix 2 of 5( European Matrix 2 of 5) Tools Code Programming ON Load Factory Default Code Programming OFF Load Matrix 2 of 5 Factory Default 【Pro CMD： 99912000 】 Enable/ Disable Matrix 2 of 5 Enable Matrix 2 of 5 【Pro CMD：99912002】...

  • Page 87: Check Digit

    Symbols Matrix 2 of 5( European Matrix 2 of 5) Tools Code Programming ON Check Digit Matrix 2 of 5 may include Check Digit (not compulsory) following its barcode Code Programming OFF messages. If included, it may be the last digit. It verifies the barcode message. “NO Check, Transmit All”...

  • Page 88: Select Message Length

    Symbols Matrix 2 of 5( European Matrix 2 of 5) Tools Code Programming ON Select Message Length It is used to program the valid reading length of Matrix 2 of 5. The scanner Code Programming OFF will send an error beep, if the decoded data length does not match the valid length.

  • Page 89: Industrial 25

    Symbols Industrial 25 Tools Code Programming ON Load Factory Default Code Programming OFF Load Industrial 25 Factory Default 【Pro CMD：99912100】 Enable/ Disable Industrial 25 Enable Industrial 25 【Pro CMD：99912102】 Disable Industrial 25 【Pro CMD：99912101】 When the scanner can not read Industrial 25, please read “Enable Industrial 25” and try again.

  • Page 90: Check Digit

    Symbols Industrial 25 Tools Code Programming ON Check Digit Industrial 25 may include Check Digit (not compulsory) following its Code Programming OFF barcode messages. If included, it may be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and trans- »...

  • Page 91: Select Message Length

    Symbols Industrial 25 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Industrial 25. The scanner Code Programming OFF will send an error beep, if the decoded data length does not match the valid length.

  • Page 92: Standard 25

    Symbols Standard 25 Tools Code Programming ON Load Factory Default Code Programming OFF Load Standard 25 Factory Default 【Pro CMD：99912200】 Enable/ Disable Standard 25 Enable Standard 25 【Pro CMD：99912202】 Disable Standard 25 【Pro CMD：99912201】 When the scanner can not read Standard 25, please read “Enable Standard 25” and try again. Standard 25 Code ID Code ID Setting 【Pro CMD：99912210】...

  • Page 93: Check Digit

    Symbols Standard 25 Tools Code Programming ON Check Digit Standard 25 may include Check Digit (not compulsory) following its Code Programming OFF barcode messages. If included, it may be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and trans- »...

  • Page 94: Select Message Length

    Symbols Standard 25 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Standard 25. The scanner Code Programming OFF will send an error beep, if the decoded data length does not match the valid length.

  • Page 95: Code 39

    Symbols Code 39 Tools Code Programming ON Load Factory Default Code Programming OFF Load Code 39 Factory Default 【Pro CMD：99912400】 Enable/Disable Code 39 Enable Code 39 【Pro CMD：99912402】 Disable Code 39 【Pro CMD：99912401】 When the scanner can not read Code 39, please read “Enable Code 39” and try again Code 39 Code ID Code ID Setting 【Pro CMD：99912414】...

  • Page 96: Check Digit

    Symbols Code 39 Tools Code Programming ON Check Digit Code 39 may include Check Digit (not compulsory) following its barcode message. It verifies the barcode message. Code Programming OFF "NO Check, Transmit All" means to read without check and transmit »...

  • Page 97: Transmit Start & Stop Character

    Symbols Code 39 Tools Code Programming ON Transmit Start & Stop Character Code 39 has one "*" before and another after digits as Start & Stop Character. Code Programming OFF Transmission of “*” can be selected. Transmit Both “*” 【Pro CMD：99912407】 Transmit Neither “*”...

  • Page 98: Select Message Length

    Symbols Code 39 Tools Code Programming ON Select Message Length Code 39 Message Length is defined by “Min. Message Length” and Code Programming OFF “Max. Message Length “. It is used to program the valid reading length of Code 39. The scanner will send an error beep, if the decoded data length does not match the valid length.

  • Page 99: Codabar

    Symbols Codabar Tools Code Programming ON Load Factory Default Code Programming OFF Load Codabar Factory Default 【Pro CMD：99912500】 Enable/Disable Codabar Enable Codabar 【Pro CMD：99912502】 Disable Codabar 【Pro CMD：99912501】 When the scanner can not read Codabar, please read “Enable Codabar” and try again. Codabar Code ID Code ID Setting 【Pro CMD：99912516】...

  • Page 100: Check Digit

    Symbols Codabar Tools Code Programming ON Check Digit Codabar may include Check Digit (not compulsory) following its barcode message. It verifies the barcode message. Code Programming OFF "NO Check, Transmit All" means to read without check and transmit » all bytes including barcode message and Check Digit. "Check, Do Not Transmit Check Digit"...

  • Page 101: Transmit Start & Stop Character

    Symbols Codabar Tools Code Programming ON Transmit Start & Stop Character Code Programming OFF Do Not Transmit Both Start & Stop Character 【Pro CMD：99912506】 Transmit Both Start & Stop Character 【Pro CMD：99912507】 Use ABCD/ABCD As Start & Stop Character 【Pro CMD：99912510】 Use ABCD/TN*E As Start &...

  • Page 102: Select Message Length

    Symbols Codabar Tools Code Programming ON Select Message Length Codabar Message Length is defined by “Min. Message Length” and Code Programming OFF “Max. Message Length “.It is used to program the valid reading length of Codabar. The scanner will send an error beep, if the decoded data length does not match the valid length.

  • Page 103: Code 93

    Symbols Code 93 Tools Code Programming ON Load Factory Default Code Programming OFF Load Code 93 Factory Default 【Pro CMD：99912600】 Enable /Disable Code 93 Enable Code 93 【Pro CMD：99912602】 Disable Code 93 【Pro CMD：99912601】 When the scanner can not read Code 93, please read “Enable Code 93” and try again. Code 93 Code ID Code ID Setting 【Pro CMD：99912610】...

  • Page 104: Check Digit

    Symbols Code 93 Tools Code Programming ON Check Digit Code 93 may include Check Digits (not compulsory) following its barcode message. If included, they are the last two digits. They verifie the barcode Code Programming OFF message. "NO Check, Transmit All" means to read without check and transmit »...

  • Page 105: Select Message Length

    Symbols Code 93 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Code 93. The scanner will Code Programming OFF send an error beep, if the decoded data length does not match the valid length.

  • Page 106: Code 11

    Symbols Code 11 Tools Code Programming ON Load Factory Default Code Programming OFF Load Code 11 Factory Default 【Pro CMD：99912700】 Enable/ Disable Code 11 Enable Code 11 【Pro CMD：99912702】 Disable Code 11 【Pro CMD：99912701】 When the scanner can not read Code 11, please read “Enable Code 11” and try again. Code 11 Code ID Code ID Setting 【Pro CMD：99912715】...

  • Page 107: Check Digit

    Symbols Code 11 Tools Code Programming ON Check Digit Code 11 may include Check Digit (not compulsory) following its barcode Code Programming OFF messages. If included, it may be the last one or two digits. It verifies the barcode message. “NO Check, Transmit All”...

  • Page 108: Select Message Length

    Symbols Code 11 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Code 11. The scanner will Code Programming OFF send an error beep, if the decoded data length does not match the valid length.

  • Page 109: Plessey

    Symbols Plessey Tools Code Programming ON Load Factory Default Code Programming OFF Load Plessey Factory Default 【Pro CMD：99913000】 Enable/ Disable Plessey Enable Plessey 【Pro CMD：99913002】 Disable Plessey 【Pro CMD：99913001】 When the scanner can not read Plessey, please read “Enable Plessey” and try again. Plessey Code ID Code ID Setting 【Pro CMD：99913010】...

  • Page 110: Check Digit

    Symbols Plessey Tools Code Programming ON Check Digit Plessey may include Check Digits (not compulsory) following its barcode Code Programming OFF messages. If included, they are the last two digit. They verifie the barcode message. “NO Check, Transmit All” means to read without check and transmit »...

  • Page 111: Select Message Length

    Symbols Plessey Tools Code Programming ON Select Message Length It is used to program the valid reading length of Plessey. The scanner will Code Programming OFF send an error beep, if the decoded data length does not match the valid length.

  • Page 112: Msi-Plessey

    Symbols MSI-Plessey Tools Code Programming ON Load Factory Default Code Programming OFF Load MSI-Plessey Factory Default 【Pro CMD：99913100】 Enable/ Disable MSI-Plessey Enable MSI-Plessey 【Pro CMD：99913102】 Disable MSI-Plessey 【Pro CMD：99913101】 When the scanner can not read MSI-Plessey, please read “Enable MSI-Plessey” and try again. MSI-Plessey Code ID Code ID Setting 【Pro CMD：99913113】...

  • Page 113: Check Digit

    Symbols MSI-Plessey Tools Code Programming ON Check Digit MSI-Plessey may include Check Digit (not compulsory) following its Code Programming OFF barcode messages. If included, it may be the last one or two digits. It verifies the barcode message. “NO Check, Transmit All” means to read without check and trans- »...

  • Page 114: Select Message Length

    Symbols MSI-Plessey Tools Code Programming ON Select Message Length MSI-Plessey Message Length is defined by “Min. Message Length” and Code Programming OFF “Max. Message Length ”.It is used to program the valid reading length of MSI-Plessey. The scanner will send an error beep, if the decoded data length does not match the valid length.

  • Page 115: Gs1 Databar

    Symbols GS1 Databar Tools Code Programming ON Load Factory Default Code Programming OFF Load GS1 Databar Factory Default 【Pro CMD：99913200】 Enable/ Disable GS1 Databar Enable GS1 Databar 【Pro CMD：99913202】 Disable GS1 Databar 【Pro CMD：99913201】 When the scanner can not read GS1 Databar, please read “Enable GS1 Databar” and try again. GS1 Databar Code ID Code ID Setting 【Pro CMD：99913203】...

  • Page 116: Appendix

    Appendix Factory Default List Parameters Factory Default Remark General Programming Code Programming Send Pro Code Value Reading Mode Sensor Mode Range：0-15s， Reading a Barcode Time Length 0 is infinite time. Interval Length Range：0-7.5s Sensitivity High Sensitivity Enabled in Sensor Mode Security Level Level 1 Medium Frequency &...
  • Page 117 Appendix Factory Default List Parameters Factory Default Remark Symbol Video Reverse Code 128 Enable Max Message Length Min Message Length UCC/EAN-128 Enable Max Message Length Min Message Length AIM 128 Enable Min Message Length EAN-8 Enable Send Check Digit Enable 2 Digits Addenda Code Enable 5 Digits Addenda Code Only Read With 2 digits Addenda Code Only Read With 5 digits Addenda Code...
  • Page 118 Appendix Factory Default List UPC-E Enable Send Check Digit Enable 2 Digits Addenda Code Enable 5 Digits Addenda Code Only Read With 2 digits Addenda Code Only Read With 5 digits Addenda Code Expand to UPC-A Expand and Change Type to UPC-A Send Default“0”...
  • Page 119 Appendix Factory Default List Deutsche 14 Enable Send Check Digit Deutsche 12 Enable Send Check Digit COOP 25(Japanese Matrix 2 of 5) Enable Check Send Check Digit Max Message Length Min Message Length No less than 4 Matrix 2 of 5(European Matrix 2 of 5) Enable Check Send Check Digit...
  • Page 120 Appendix Factory Default List Support Full ASCII Max Message Length No less than 4 (including Start & Min Message Length Stop Character) Codabar Enable Check Send Check Digit Send Start & Stop Character ABCD/ABCD as Start & Stop Character ABCD/TN*E as Start & Stop Character Choose 1 In 4 abcd/abcd as Start &...
  • Page 121 Appendix Factory Default List Max Message Length Min Message Length No less than 1 MSI-Plessey Enable Send Check Digit Check 1 Digit, MOD10 Check 2 Digits, MOD10/MOD10 Check 2 Digits, MOD10/MOD11 Check Max Message Length Min Message Length No less than 1 GS1 Databar Enable Max Message Length...

  • Page 122: Aim Id List

    Appendix AIM ID List Possible AIM ID Symbol AIM ID Modifiers(m) Code 128 UCC/EAN-128 AIM 128 ISBT 128 EAN-8 EAN-13 EAN-13 with Addon ISSN ISBN UPC-E UPC-E with Addon UPC-A UPC-A with Addon 0,1,3 Interleaved 2 of 5 ITF-6 ITF-14 Deutsche 14 Deutsche 12 COOP 25（Japanese Matrix 2 of 5）...

  • Page 123: Code Id List

    Appendix Code ID List Symbol Code ID Code 128 UCC/EAN-128 AIM 128 ISBT 128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Deutsche 14 Deutsche 12 COOP 25（Japanese Matrix 2 of 5） Matrix 2 of 5(European Matrix 2 of 5) Industrial 25 Standard 25 Code 39...

  • Page 124: Digit Code

    Appendix Appendix Digit Code Tools Code Programming ON It is must to read save after reading digit code. Code Programming OFF 【Pro CMD：99900000】 【Pro CMD：99900004】 【Pro CMD：99900001】 【Pro CMD：99900005】 【Pro CMD：99900002】 【Pro CMD：99900006】 【Pro CMD：99900003】 【Pro CMD：99900007】 nlscan.com Page 118...
  • Page 125 Appendix Digit Code Tools Code Programming ON Code Programming OFF 【Pro CMD：99900010】 【Pro CMD：99900014】 【Pro CMD：99900011】 【Pro CMD：99900015】 【Pro CMD：99900012】 【Pro CMD：99900016】 【Pro CMD：99900013】 【Pro CMD：99900017】 nlscan.com Page 119...

  • Page 126: Save And Abort

    Appendix Appendix Save and Abort Tools Tools Code Programming ON Code Programming ON In order to save the received data “Save” has to be read after data transition completed. If error occurs when reading data, the wrong data can be deleted and the setting up can be done again.. Code Programming OFF Code Programming OFF Eg, after a program code is received then ‘1 2 3”...

  • Page 127: Ascii Table

    Appendix ASCII Table Char NUL (Null char.) SOH (Start of Header) STX (Start of Text) ETX (End of Text) EOT (End of Transmission) ENQ (Enquiry) ACK (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) (Shift In) DLE (Data Link Escape) DC1 (XON) (Device Control 1)
  • Page 128 Appendix ASCII Table Char (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) < (Less Than) (Equal Sign) > (Greater Than) (Question Mark) (AT Symbol) nlscan.com Page 122...
  • Page 129 Appendix ASCII Table Char (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket) (Caret / Circumflex) (Underscore) (Grave Accent) (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) DEL (Delete) nlscan.com Page 123...
  • Page 130 Headquarters Fujian Newland Auto-ID Tech. Co., Ltd. 3F, Building A, No.1, Rujiang West Rd., Mawei, Fuzhou, Fujian, China 350015 TEL: +86 - (0) 591-83978605 FAX: +86 - (0) 591-83979216 E-mail: marketing@nlscan.com WEB：www.nlscan.com Newland Europe BV Rolweg 25, 4104 AV Culemborg, The Netherlands...
