Installing The Tempo/Ext; Control - mr. steam Tempo/Plus Control Owner's Manual

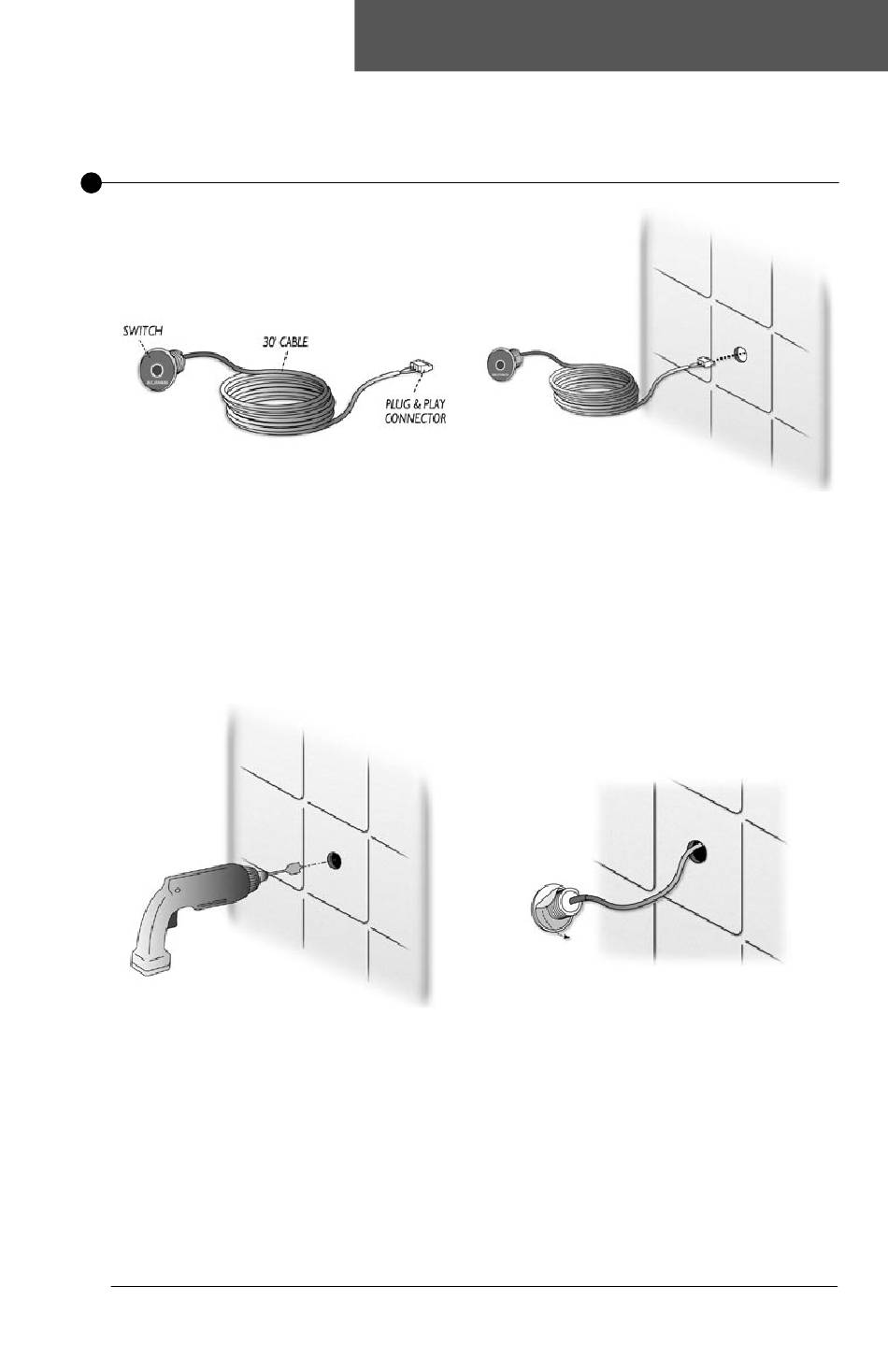

Diagram 1
The TEMPO/EXT has a 30 foot cable with a
®
Plug & Play connector at one end and an
ON/OFF switch at the other end (Diagram 1).
Contact a MrSteam technical service
representative if a longer cable is required.
Diagram 2
STEP 1
Drill a 7/8 inch diameter hole in the preferred
wall location.
Do not oversize or undersize the hole.
TEMPO / TEMPO/PLUS / TEMPO/REMOTE
® ®

Installing the TEMPO/EXT

STEP 2
Route the cable from the wall to the steam
generator (Diagram 3).
Be careful not to strain, staple, pinch or other-
wise damage the control cable.
STEP 3
Remove and discard the peel-off paper from
the switch housing to expose the adhesive as
shown in Diagram 4.
/ TEMPO/EXT • Owner's Manual
® ®

Control

®
Diagram 3
Diagram 4
