Assembly Instructions
IMPORTANT – READ CAREFULLY –
RETAIN FOR FUTURE REFERENCE

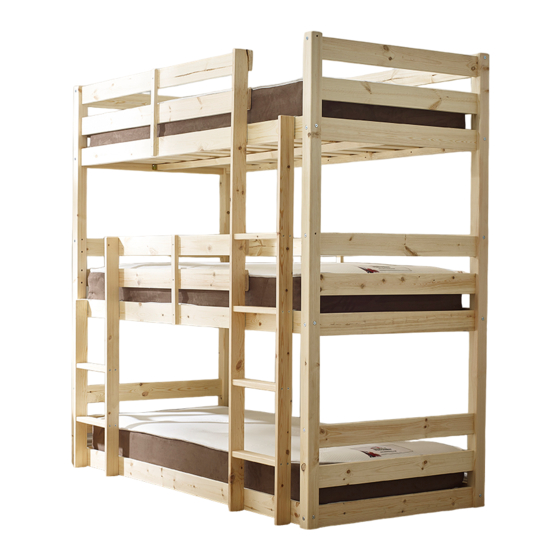

Triad Triple Bunk Bed
Safety First !
The top surface of the mattress must not be above the line ,marked on the frame (Maximum height:
20cm). The size of the mattress required is detailed below:
Standard Single, Standard Length - Mattress size 90cm by 190cm
Small Single, Standard Length - Mattress size 75cm by 190cm
Standard Single, Short Length - Mattress size 90cm by 160cm
Small Single, Short Length - Mattress size 75cm by 160cm
The upper TWO Beds on this bunk bed are not suitable for children under six years due to risk of
injury from falls.
Be aware of the danger of young children (under 6) falling from upper two bunks.
Beds should not be used if any structural part is broken or missing.
Bunk beds and high beds can present a serious risk of injury from strangulation if not use correctly.
Never attach or hang items to any part of the bunk bed that are not designed to be used with the
bed, for example, but not limited to ropes, strings, cords, hooks, belts and bags.
Children can become trapped between the bed and the wall, a roof pitch, the ceiling, adjoining
pieces of furniture (eg cupboards) and the like. To avoid risk of serious injury the distance between
the top safety barrier and the adjoining structure shall not exceed 75mm or shall be more than
230mm.
Always ensure that guardrails, ladder and other components are maintained in the proper position
and free from damage, and all the screw fixings tight.
Always use the ladder for entering and leaving the upper bunk.
Do not allow horseplay on or under the bed and prohibit jumping on the bed.
Use a nightlight as an added safety precaution for persons under the upper bunk.
Use guardrails on both sides of the upper bunk.
Every bedroom must have at least one opening window. Ventilation of the room is necessary in
order to keep the humidity low and to prevent mould in and around the bed.
The bed complies with BS EN 747-1: 2012+A1 :2015 safety standards

Advertisement

loading
Need help?

Need help?

Do you have a question about the Triad Triple Bunk Bed and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Strictly Beds & Bunks Triad Triple Bunk Bed

  • Page 1 Assembly Instructions IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE Triad Triple Bunk Bed Safety First ! The top surface of the mattress must not be above the line ,marked on the frame (Maximum height: 20cm). The size of the mattress required is detailed below:...
  • Page 2 You will find within the following instructions guidance on how to build this bunk bed. Please note this is a solid product, we have not used a cheaper glue and staple method to make the assembly quicker. Each part needs fixing separately as described, however with patience you will, have a solid, long lasting bed.
  • Page 3 To ALL customers - If you have a missing or damaged bolt you can order these FREE of CHARGE using the following method, please note we will require your order number or delivery address Telephone: 01767 682007 Email: help@strictlybedsandbunks.co.uk Website: www.strictlyhelpdesk.co.uk All fixings are sent out via next day Royal Mail Post...
  • Page 4: Customer Care

    An over view of what you are about to build - keep close for reference. You will find within the box a packing list that helps identify each part. CUSTOMER CARE We have checked all parts to ensure they are free of damage. However timber is a natural, living product.
  • Page 5 Headboards WHITE CHALK MARK White Blue White Blue White Blue First we need to create headboards. The corner posts have a white chalk marking. VERY IMPORTANT - these indicate the top of the post, at the base they will have PNL - (left side) and PNR - (right side).
  • Page 6 Now two people are required for this. We are now attaching the back guard rails and side rails. Ensure the white chalk markings are facing inside the bed. From the top of the picture you need to find and attach the following: Top Guard Rail - RED - Part 2 x 1 Bottom Guard Rail - WHITE - Part 3 x 1 Siderail - Universal - Part 1 x 1...
  • Page 7 We now again need to attach the front side rails, again using fixings B and C attach as per the above picture. Once fixed you can now tighten all fixings ready for the next phase. Now we build the ladders We now need to build both the ladders, these consist of a short and long ladder strut When installed the ladder rungs need to be tight.
  • Page 8 Ladders - Left or Right side of the bed ? Depending on your preference you may want to change which side the ladder are located, this makes a difference on where you attach the ladder hooks. The IMPORTANT RULE is the long ladder strut on both ladders should always be facing the furthest away from each corner post.
  • Page 9 Now we need to attach the two bottom front guard rails. First select the bottom front guard rail (part 2N) marked white. Rest the spacer bar (fixing A2) as shown in the picture, This will ensure the correct gap is allowed. Now using the long black fixing Q screw through from the inside of the guard rail into each long ladder strut.
  • Page 10 Now we fix the centre Rails The two top bunks have a centre rail. From the inside of the bed we need to attach two metal brackets, two either end. These are fixed using the small screws (L), these are fixed to part 13 (blue) - third insert down from the top.
