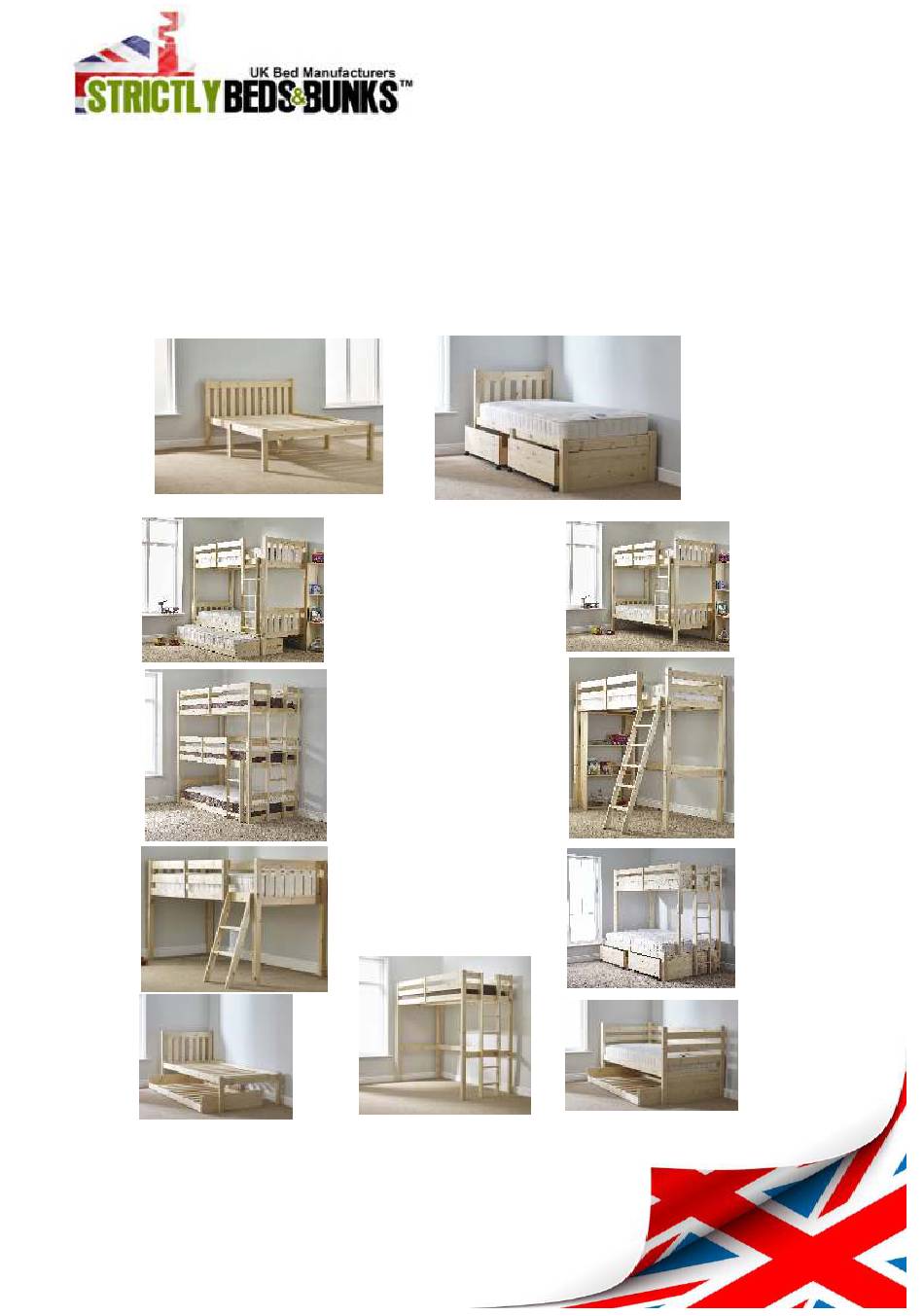

Pandora
Bunk Bed
IMPORTANT:
DO NOT DISPOSE
are satisfied with your purchase. . Please keep all cardboard
Bunk
Beds
Four Poster Beds
High Sleeper
Beds
Cabin Beds
Storage Beds
Mattresses
IN STOCK
of the packaging until you
until fully assembled.
Instructions 8
Assembly Instructions
IMPORTANT – READ CAREFULLY –
RETAIN FOR FUTURE REFERENCE
Box F
(Version June2020)
Advertisement
Subscribe to Our Youtube Channel

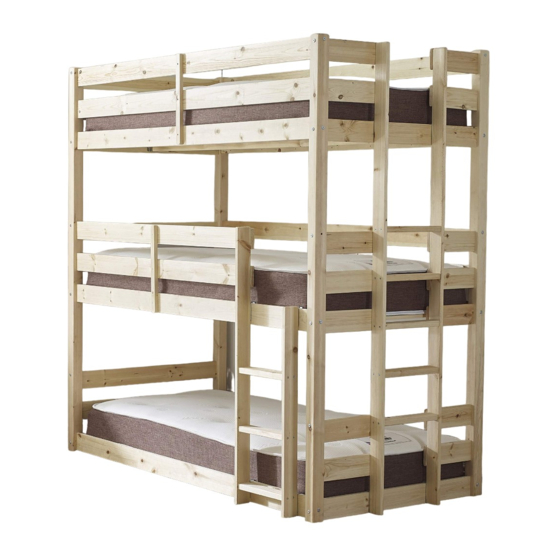

Related Manuals for Strictly Beds & Bunks Pandora Bunk Bed
Summary of Contents for Strictly Beds & Bunks Pandora Bunk Bed
- Page 1 Box F Instructions 8 (Version June2020) Pandora Assembly Instructions Bunk Bed IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE Bunk Beds Four Poster Beds High Sleeper Beds Cabin Beds Storage Beds Mattresses IN STOCK IMPORTANT: DO NOT DISPOSE of the packaging until you are satisfied with your purchase.
-
Page 2: Safety First
Safety First ! The top surface of the mattress must not be above the line ,marked on the frame (Maximum height: 20cm). The size of the mattress required is detailed below: Standard Single, Standard Length - Mattress size 90cm by 190cm Small Single, Standard Length - Mattress size 75cm by 190cm Standard Single, Short Length - Mattress size 90cm by 160cm Small Single, Short Length - Mattress size 75cm by 160cm... - Page 3 TOP TIPS - TOP TIPS Read before you start assembly Locating the Dowel Rods To keep the bed from rattling all the dowel holes have been slightly mis-drilled by a couple of mm. When you push parts together the dowels will straighten and pull together to ensure a tight fit.
- Page 4 How to identify your parts and fixings All our products have four attachment methods. These are colour coded, at the end of each part you will find a marker pen marking either RED, WHITE or BLUE (two types) RED MARKING/FIXINGS The part will have a red marker pen marking on the end.
- Page 5 CUSTOMER CARE We have checked all parts to ensure they are free of damage. However timber is a natural, living product. Occasionally timber can still be adjusting to humidity, for this reason a crack or stretch mark may appear after the product has been packaged. Strictly Beds and Bunks however have a FREE PARTS REQUEST Should you need to order a part please go to our FREE help desk...
- Page 6 Contents List Packing Note : Box 2 of 3 Packing Note : Box 1 of 3 Pandora Single - LONG Pandora Single - LONG Description Required Description Required Part 2-Top Long Back Guard Rail Part 1-Long Side rail Part 3-Bottom Long Back Guard Rail Part 13- Blue Headboard Part 7-Front Bottom Long Guard Rail Part 14- White Headboard...
- Page 7 1st headboard 2nd headboard WHITE CHALK MARK White BLUE Blue White Blue BLUE To make for easier access we have now White increased the amount of mini guards to the 2nd headboard Blue First we need to create headboards. The corner posts have a white chalk marking. VERY IMPORTANT - these indicate the top of the post, at the base they will have PNL - (left side) and PNR - (right side).
- Page 8 -------New 2nd Headboard design Now two people are required for this. We are now attaching the back guard raids and side rails. Ensure the white chalk markings are facing inside the bed. From the top of the picture you need to find and attach the following: Top Guard Rail - RED - Part 2 x 1 Bottom Guard Rail - WHITE - Part 3 x 1 Siderail - Universal - Part 1 x 1...
- Page 9 -------New 2nd Headboard design Now two people are required for this. We are now attaching the FRONT guard raids and side rails. Ensure the white chalk markings are facing inside the bed. From the top of the picture you need to find and attach the following: Top Guard Rail - RED - Part 6 x 1 Bottom Guard Rail - WHITE - Part 7 x 1...
- Page 10 Now we need to attach the two front guard rails. First select the bottom front guard rail (part 9) marked white. Using fixings A attach to the corner post. Rest the spacer bar (fixing A2) as shown in the picture at the end of the rail. This will ensure the correct gap is allowed.
- Page 11 Once the ladder has been built we need to fix FOUR x ladder hooks. Lean the ladder against the end rail. With a pencil mark, on the inside mark the top of the each blue headboard insert ( third and sixth one down). Now screw the ladder hook just below this mark and to the top of the smaller strut.
-
Page 12: Customer Care
Attach the Four Guard Supports You will find FOUR part 4 (11A), these are attached to the front of each guard rail combination. Using a tape measure make a small pencil marking in the centre of each guard rail combination. Using three (E) screws attach each guard support from the outside.
