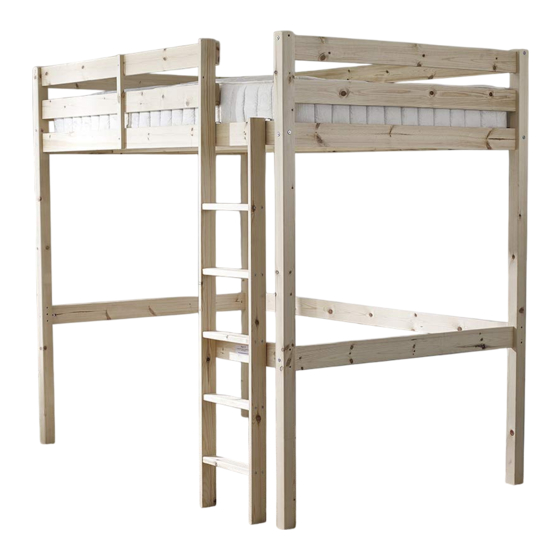

STRAIGHT LADDER
Tango and Icarus
(All Sizes)
Assembly Instructions
IMPORTANT – READ CAREFULLY –
Assembly Instructions
RETAIN FOR FUTURE REFERENCE
Safety First !
The top surface of the mattress must not be above the line ,marked on the frame
(Maximum height: 20cm).
The size of the mattress required is detailed below:
Standard 3ft Single, Standard Length - Mattress size 90cm by 190cm
Small 3ft Single, Standard Length - Mattress size 75cm by 190cm
Standard 2ft 6 Single, Short Length - Mattress size 90cm by 160cm
Small 2ft 6 Single, Short Length - Mattress size 75cm by 160cm
Small 4ft Double, Standard length - Mattress size 120cm by 190cm
Standard 4ft 6 Double, Standard Length - Mattress size 137cm by 190cm
High beds and the upper bed of a bunk bed are not suitable for children under six years due to risk of injury
from falls.
Be aware of the danger of young children (under 6) falling from upper bunk.
Beds should not be used if any structural part is broken or missing.
Bunk beds and high beds can present a serious risk of injury from strangulation if not used correctly. Never
attach or hang items to any part of the bunk bed that are not designed to be used with the bed, for example,
but not limited to ropes, strings, cords, hooks, belts and bags.
Children can become trapped between the bed and the wall, a roof pitch, the ceiling, adjoining pieces of
furniture (eg cupboards) and the like. To avoid risk of serious injury the distance between the top safety
barrier and the adjoining structure shall not exceed 75mm or shall be more than 230mm.
Always ensure that guardrails, ladder and other components are maintained in the proper position and free
from damage, and all the screw fixings tight.
Always use the ladder for entering and leaving the upper bunk.
Do not allow horseplay on or under the bed and prohibit jumping on the bed.
Use a nightlight as an added safety precaution for persons under the upper bunk.
Use guardrails on both sides of the upper bunk.
Every bedroom must have at least one opening window. Ventilation of the room is necessary in order to keep
the humidity low and to prevent mould in and around the bed.
The bed complies with BS EN 747-1: 2012+A1 :2015 safety standards
IMPORTANT:
DO NOT DISPOSE
of
the packaging until you are satisfied
with your purchase.. Please keep all
cardboard until fully satisfied.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Strictly Beds & Bunks Tango
Summary of Contents for Strictly Beds & Bunks Tango
- Page 1 Instructions: (Version August2024) STRAIGHT LADDER Tango and Icarus (All Sizes) Assembly Instructions IMPORTANT – READ CAREFULLY – Assembly Instructions RETAIN FOR FUTURE REFERENCE Safety First ! The top surface of the mattress must not be above the line ,marked on the frame (Maximum height: 20cm).
-
Page 2: Customer Care
CUSTOMER CARE We have checked all parts to ensure they are free of damage. However timber is a natural, living product. Occasionally timber can still be adjusting to humidity, for this reason a crack or stretch mark may appear after the product has been packaged. Strictly Beds and Bunks however have a FREE PARTS REQUEST service in this unlikely event. - Page 3 TOP TIPS - TOP TIPS Read before you start assembly Locating the Dowel Rods To keep the bed from rattling all the dowel holes have been slightly mis-drilled by a couple of mm. When you push parts together the dowels will straighten and pull together to ensure a tight fit.
-
Page 4: Parts Identifier
Parts Identifier Part BS - PACK of 12 Base Slats Part RCP - Right Hand Corner Post Part 6- Front Top Long Guard Rail Part 1- Long Side rail Part 7- Front Bottom Long Guard Rail Part 16- Long Centre Rail Part 2 - RED Top Back Guard Rail Part 11A - End Guard Rail support Part 20- Celeste Ladder Struts... - Page 5 How to identify your parts and fixings All our products have four attachment methods. These are colour coded, at the end of each part you will find a marker pen marking either RED, WHITE or BLUE (two types) RED MARKING/FIXINGS The part will have a red marker pen marking on the end.
- Page 6 Build the Headboards We need to build the two headboards at either end of the bunk bed. You will find four corner posts, On the BOTTOM of the post they will be marked with an end letter “L” and “R” (left and right) Select one left (L) post and place to the left, and one right (R) and place to the right.
- Page 7 Bottom rear brace (Part 17)to prevent the legs from moving apart. This part is coloured coded, BLACK - Icarus models, BLUE - Tango models please attach at the same time you attach the top guard rails. Use Fixings A and D...
- Page 8 Now we Build the Ladder Depending on your model we have two ladder types, slanted or straight . If slanted model you will have two identical ladder struts If Straight ladder, you will have two different size ladder struts. At this stage is makes no difference, you need to attach the ladder steps.
- Page 9 Now Build the Ladder First we need to attach the ladder hooks PIC4 RIGHT PIC2 LEFT PIC1 PIC3 Now we have assembled the ladder we need to attach the two ladder hooks. If the ladder is going on the right side lay the ladder on the carpet as shown in PIC2, if left lay as shown in PIC1.
- Page 10 Attach Bottom Ladder Support Strut. Now position Part 31 behind the ladder and connect to the corner post using fixings A & D. Once in place use Black Screw (Q) to screw through in the back of each ladder strut (no hooks are used for this).
- Page 11 Attaching The Centre Rails SINGLE BUNK BEDS - One Centre Rail From the inside of the bed we need to attach metal brackets, one either end. These are fixed using the small screws (L), these are fixed to part 13 (blue) - third insert down from the top. Using a tape mark a centre line from each corner post, then measure and mark 55mm from the top of the BLUE Facia(13).
-
Page 12: Extended Warranty
Extended Warranty Available Direct From the Manufacturer You don’t have to have purchased the bed directly from us, so long as you purchase this warranty within 30 days of delivery you will be covered. This warranty extension is only available on Strictly Beds and Bunks products.
