Control/Component Name
M. Process Pressure Gauge
N. Reset
S. Electrical Box
R. Master Power On/O with Lockout Device

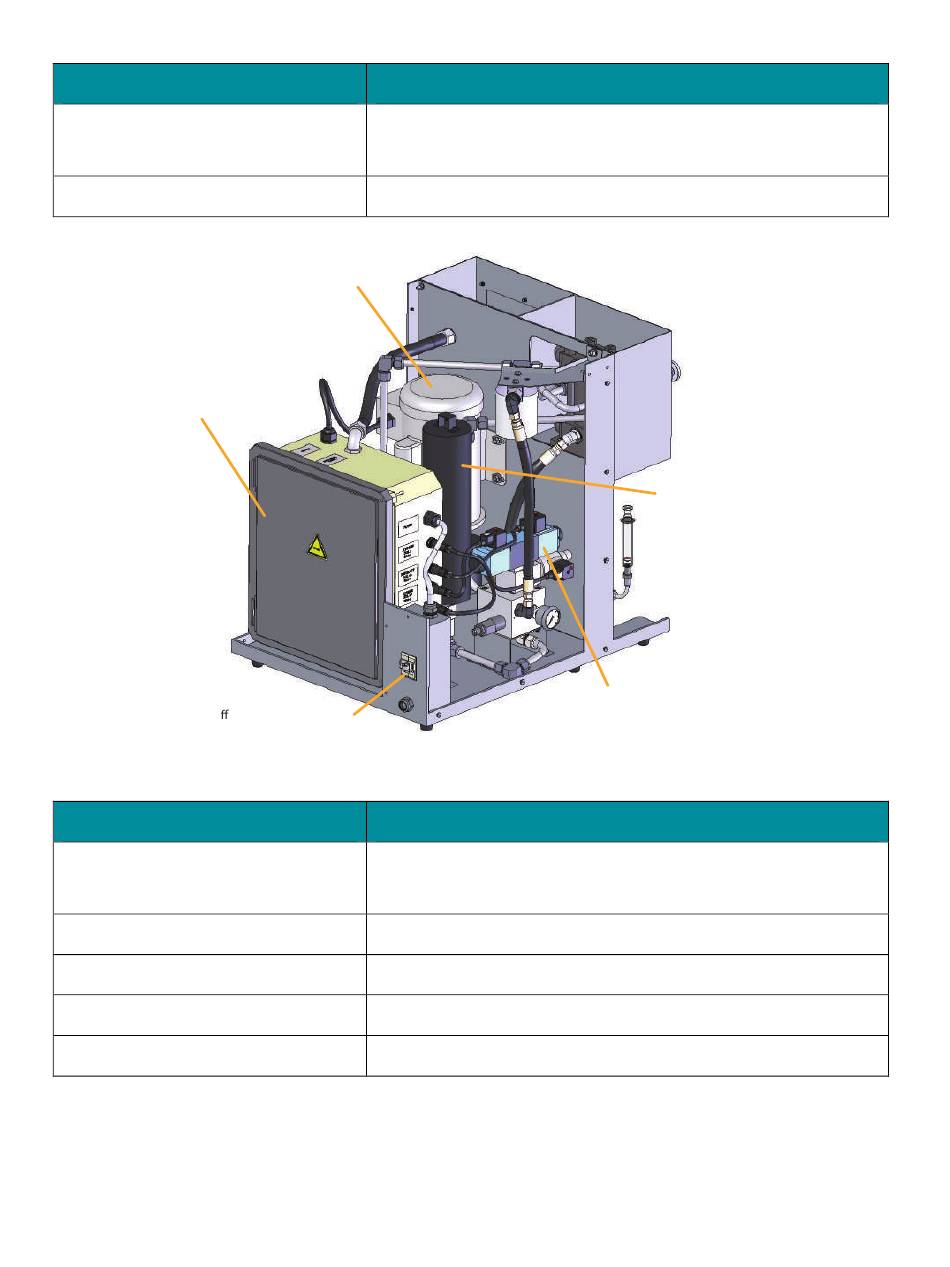

Figure 2.2. Rear View
Control/Component Name
O. Oil Fill
P. Accumulator Charge Port
Q. Directional Control Valve
R. Master Power On/Off
S. Electrical Box
2-LV-1-5 8/3/11
Chapter 2: Overview
Description
Has a range from 0 to 40,000 psi. Note that the pressure being
monitored is NOT product pressure, but scaled hydraulic pressure that
represents the product process pressure.
Allows delivery of power upon system initialization.
O. Oil Fill
Description
Provides access for filling with hydraulic oil. Note: the oil must be
pre-filtered to at least 10 microns. Refer to Appendix E for the
recommended grade.
Provides access for charging the accumulator.
Controls the flow direction of the hydraulic fluid.
Allows power to enter the unit.
LV1 User Manual
P. Accumulator Charge Port
Q. Directional Control Valve
