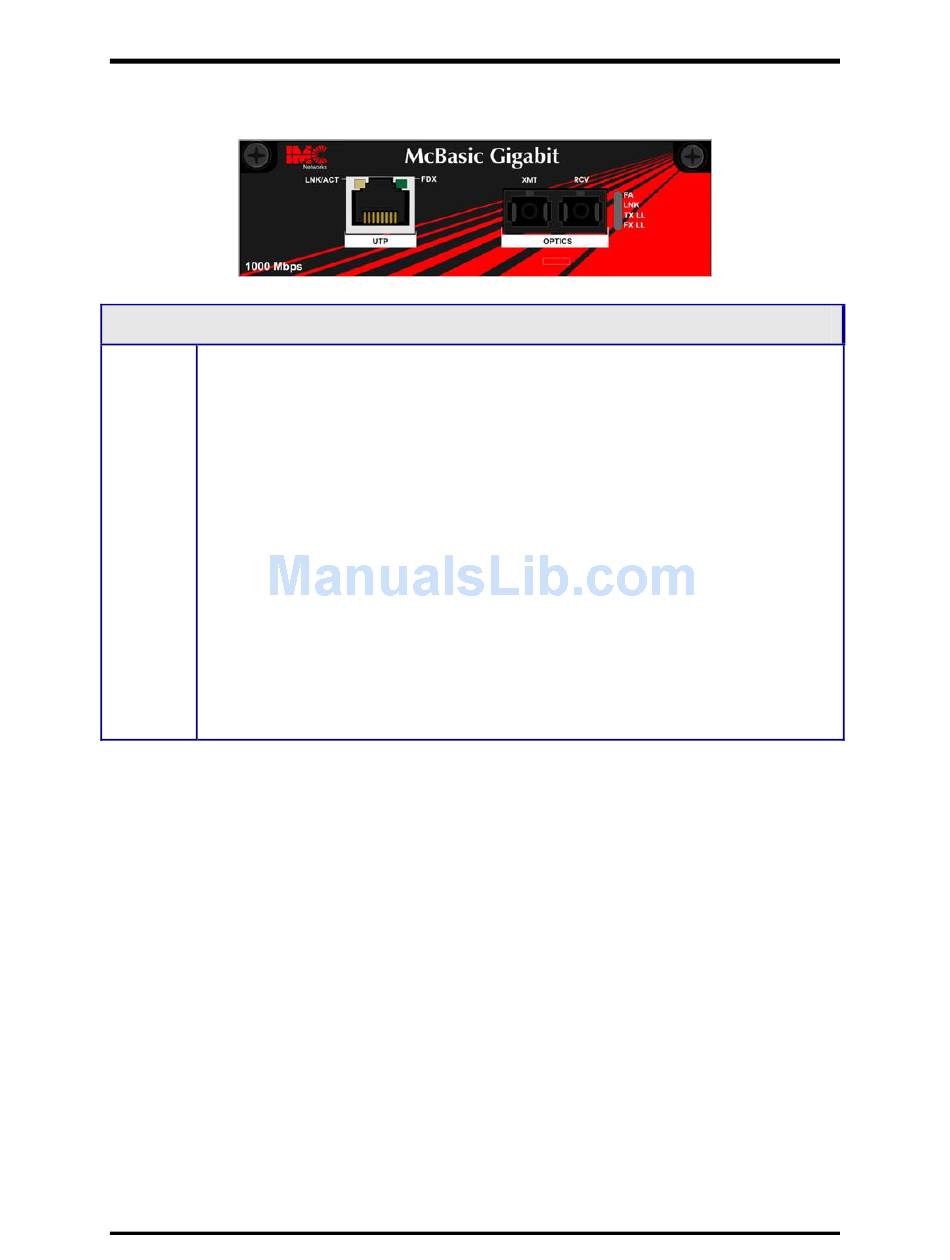

LED Operation
Each McBasic-Gigabit Converter features diagnostic LEDs that provide information on
features and ports.
Glows green when a twisted pair link is established. Blinks green when data is
LNK/ACT
detected on the port. Located on RJ-45 connector.
Glows amber when port is operating in Full-Duplex Mode on the RJ-45
FDX
connector.
FXLL
Glows green when operating in Full-Duplex Mode.
TXLL
Glows green when TX LinkLoss is enabled on the port.
LNK
Glows green when a twisted pair link is established.
FA
Glows green when FiberAlert is enabled.
McBasic-Gigabit w/LFPT
