Summary of Contents for IMC Networks McPC TP/BNC

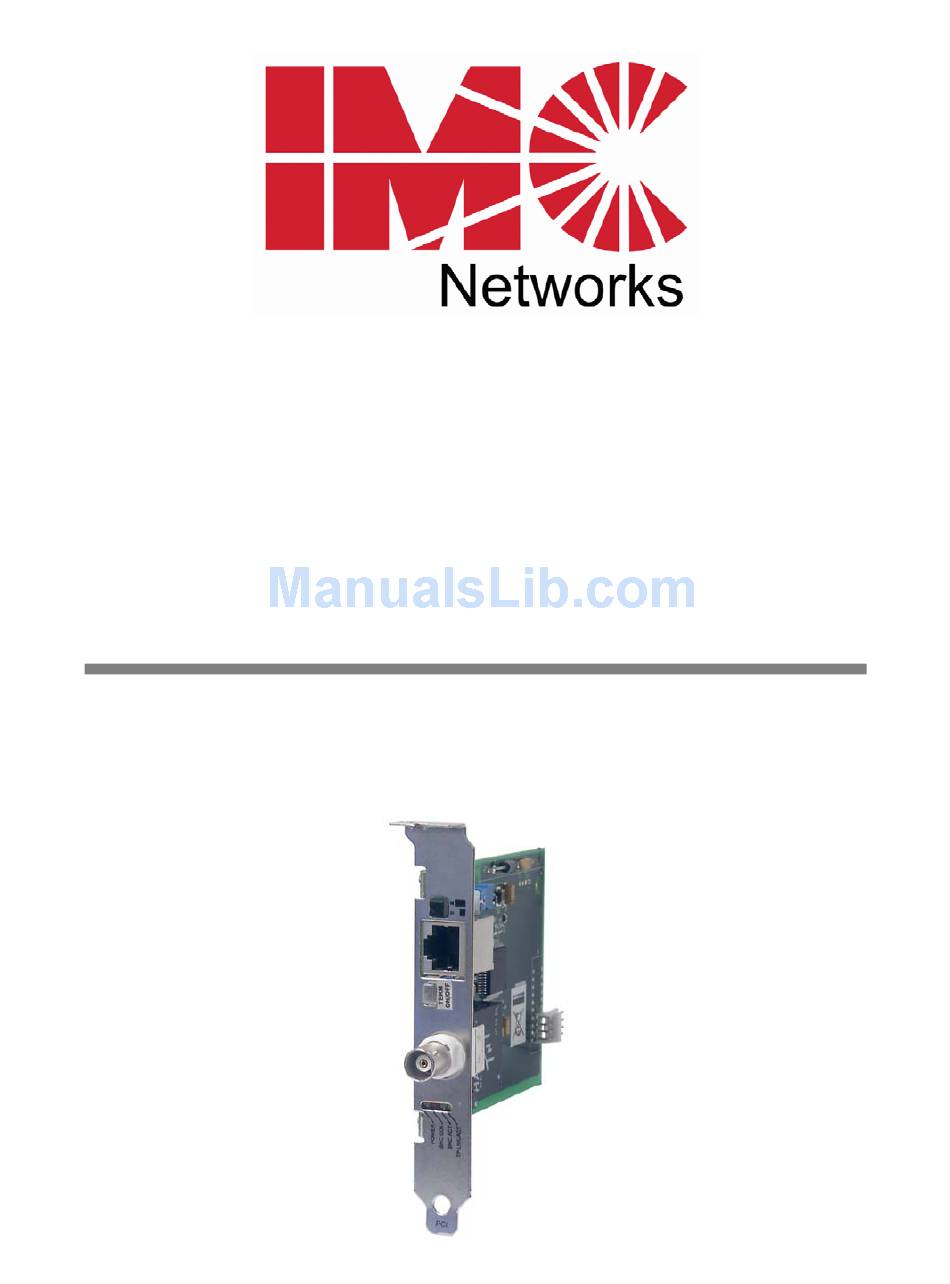

- Page 1 McPC TP/BNC Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ...ii Warranty...ii About the McPC TP/BNC ...4 Installation Instructions...4 Configuration ...5 Twisted Pair Crossover/Straight-Through Switch...5 BNC Port Termination...5 LED Indicators...6 IMC Networks Technical Support...6 Specifications ...6 Safety Certifications...7... -
Page 4: Installation Instructions
It is available with one RJ45 connector for the twisted pair port and one BNC connector for the coax port. The McPC TP/BNC can be mounted in any PC with a standard PCI slot. It includes diagnostic LEDs for each port and a 4-pin peripheral power supply connector. -
Page 5: Twisted Pair Crossover/Straight-Through Switch
LNK (link) LED glow. BNC Port Termination The McPC TP/BNC features a 2-position switch next to the BNC connector that allows a thin coaxial segment to be terminated at the port without an additional ‘T’... -
Page 6: Specifications
LED Indicators The McPC TP/BNC features four diagnostic LEDs. These LEDs include the following: • TP LNK - Blinks yellow when twisted pair port is receiving data. • BNC ACT - Glows green when a BNC port is receiving data. -
Page 7: Safety Certifications
Electrical Equipment Designed for use within Certain Voltage Limits (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 8 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. McPC TP/BNC is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
