8. PIVOT GUARD
The Pivot Guard protects the pneumatic cylinder which shifts the pivoting
linkage at the cylinder plate forcing the shaft and fork frame to turn at a
predetermined angle. The Pivot Guard has safety lock pinholes that extend
through the pivoting linkage plates and restrict wheel direction change until
the pin is removed. This pivot wheel action allows the GO-A8-PW to travel
with rolling capstans.
9. PIVOT LOCKING PIN
The Pivot Locking Pin is used to lock the wheels and the Height Adjustment
Forks in the straight or pivot position. The Pin, attached to the GO-A8-PW
by a coated lanyard, must be removed before actuating the Pivot Pull Switch.
The Pin should be reinserted into the correct pinhole on the Pivot Guard when
the wheels are in the desired position. A label located on the Pivot Guard, See
Figure 3, shows which pin hole is used to lock the GO-A8-PW's wheels in
the desired position.

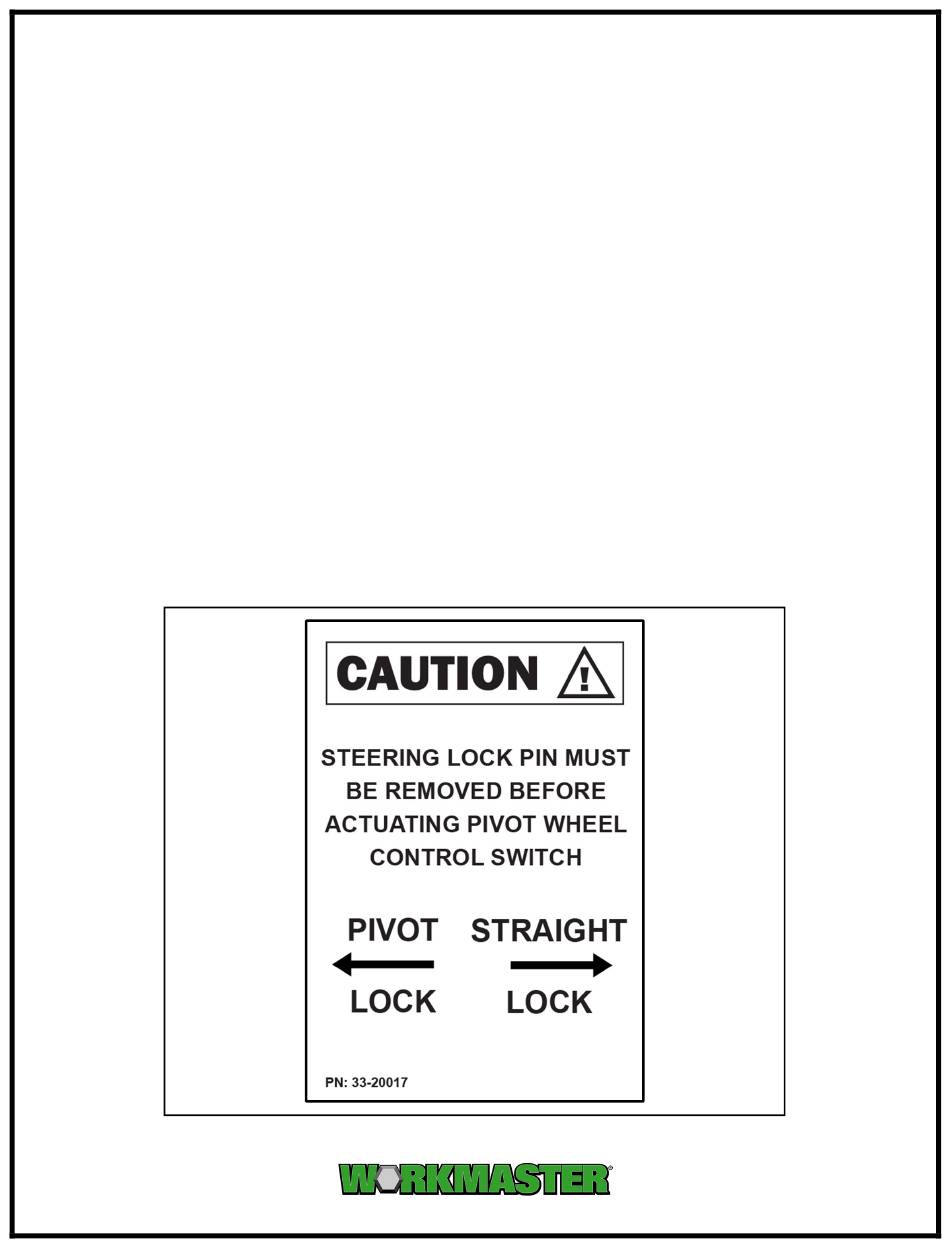

Figure 3: Locking Pin Label
