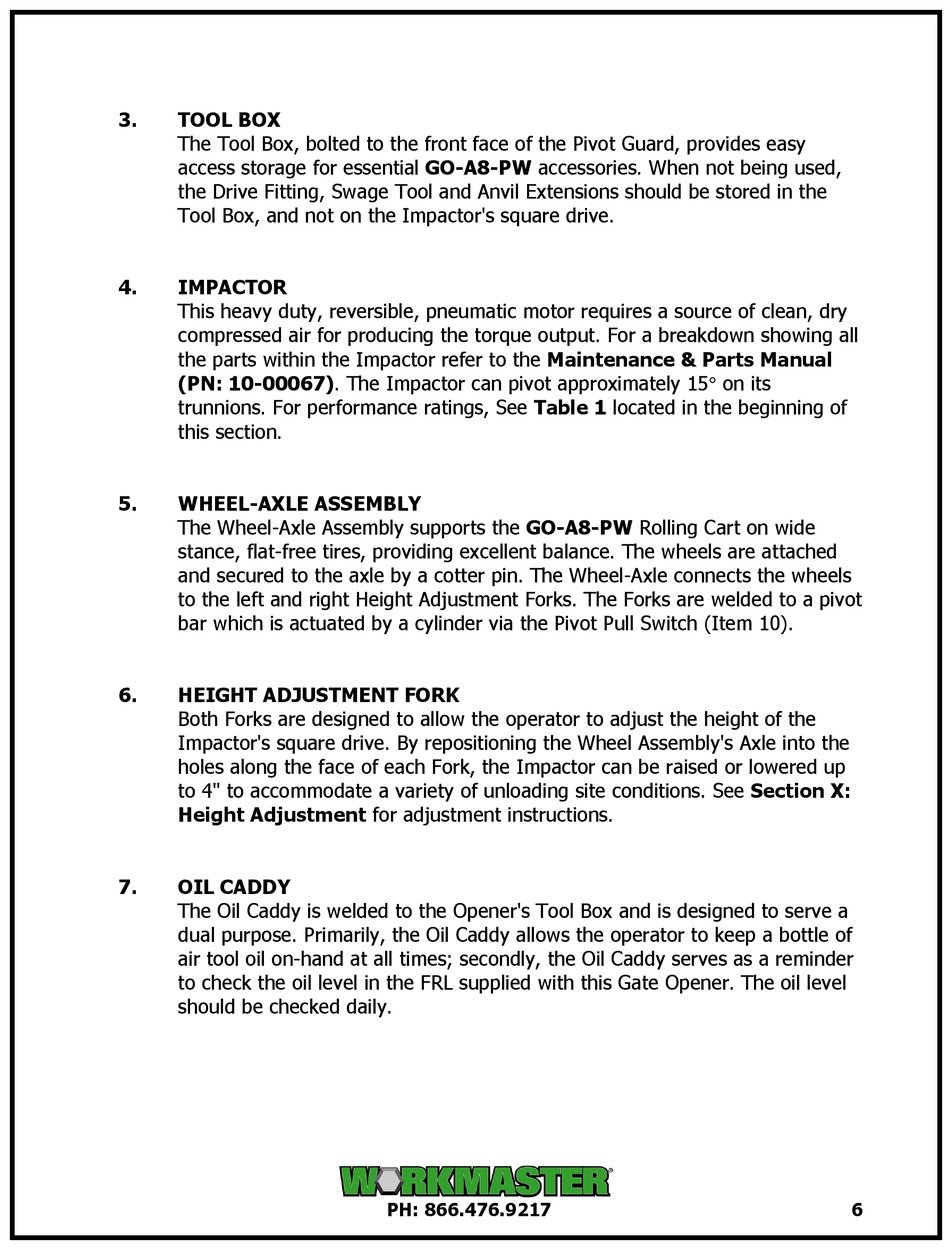

3. TOOL BOX
The Tool Box, bolted to the front face of the Pivot Guard, provides easy
access storage for essential GO-A8-PW accessories. When not being used,
the Drive Fitting, Swage Tool and Anvil Extensions should be stored in the
Tool Box, and not on the Impactor's square drive.
4. IMPACTOR
This heavy duty, reversible, pneumatic motor requires a source of clean, dry
compressed air for producing the torque output. For a breakdown showing all
the parts within the Impactor refer to the Maintenance & Parts Manual
(PN: 10-00067). The Impactor can pivot approximately 15 on its
trunnions. For performance ratings, See Table 1 located in the beginning of
this section.
5. WHEEL-AXLE ASSEMBLY
The Wheel-Axle Assembly supports the GO-A8-PW Rolling Cart on wide
stance, flat-free tires, providing excellent balance. The wheels are attached
and secured to the axle by a cotter pin. The Wheel-Axle connects the wheels
to the left and right Height Adjustment Forks. The Forks are welded to a pivot
bar which is actuated by a cylinder via the Pivot Pull Switch (Item 10).
6. HEIGHT ADJUSTMENT FORK
Both Forks are designed to allow the operator to adjust the height of the
Impactor's square drive. By repositioning the Wheel Assembly's Axle into the
holes along the face of each Fork, the Impactor can be raised or lowered up
to 4" to accommodate a variety of unloading site conditions. See Section X:
Height Adjustment for adjustment instructions.
7. OIL CADDY
The Oil Caddy is welded to the Opener's Tool Box and is designed to serve a
dual purpose. Primarily, the Oil Caddy allows the operator to keep a bottle of
air tool oil on-hand at all times; secondly, the Oil Caddy serves as a reminder
to check the oil level in the FRL supplied with this Gate Opener. The oil level
should be checked daily.
