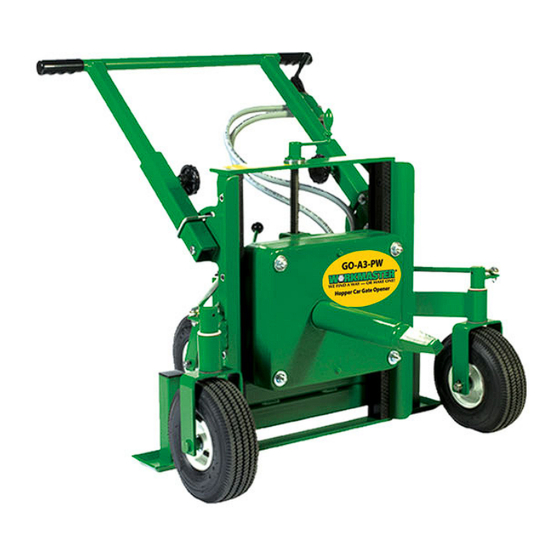

GO-A3-PW Gate Opener
OPERATOR'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GO-A3-PW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WORKMASTER GO-A3-PW

Summary of Contents for WORKMASTER GO-A3-PW

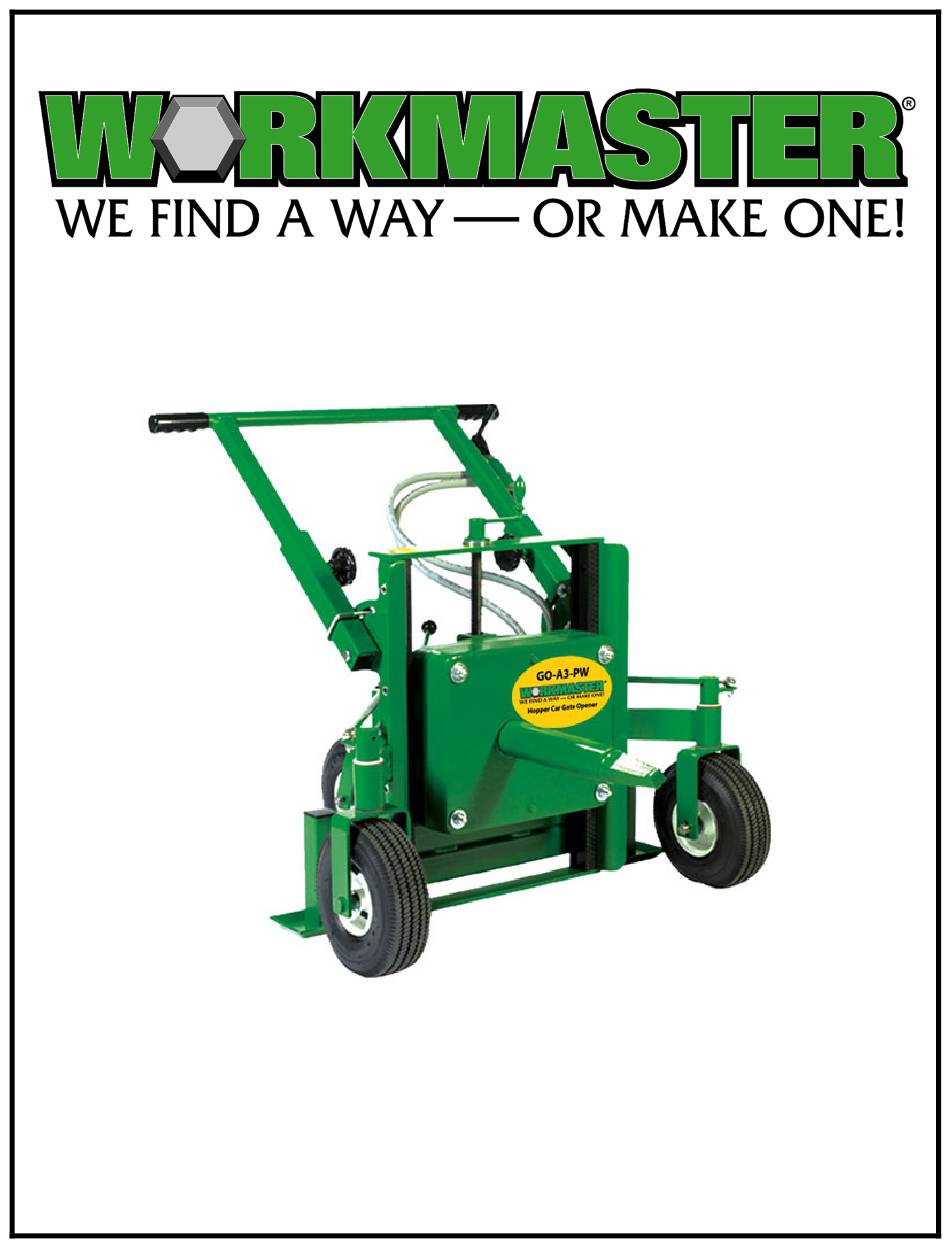

  • Page 1 GO-A3-PW Gate Opener OPERATOR'S GUIDE...
  • Page 2 The user of this product is responsible to install, maintain and operate the product and parts or components manufactured or supplied by WORKMASTER in such a manner as to comply with all federal, state and local rules, ordinances, regulations and laws, including the Williams-Steiger Occupational Safety Act, and the American National Standards Institute Safety Code.
  • Page 3 SYMBOLS The following symbols are found throughout this Operator's Guide to alert the reader to the relative danger that may result from non-observance. This indicates a situation in which a hazard is imminent and will result in a high probability of serious injury or death.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE Introduction Safety III. Required Materials Pre-Start Checklist Opening Car Gates Closing Car Gates VII. Height Adjustment VIII. Maintenance & Storage Troubleshooting APPENDIX A: Parts List APPENDIX B: Air Preparation Kit APPENDIX C: Specifications Dimensions APPENDIX D: Air Supply Piping PH: 267.350.2809...

  • Page 5: Introduction

    This Operator's Guide details the specifications, operation, maintenance, and safe use of the GO-A3-PW Pneumatic Hopper Car Gate Opener. Experience has shown that the GO-A3-PW Opener will open the most difficult car gates.

  • Page 6: Safety

    ANSI Standards before installation or maintenance. III. REQUIRED MATERIALS The following items are not supplied with your WORKMASTER Gate Opener but are necessary for its proper installation and operation. CLEAN and DRY compressed air. High-quality air hose: 1/2" ID, preferably fitted with a Universal (Chicago type) Coupling.

  • Page 7: Pre-Start Checklist

    IV. PRE-START CHECKLIST The GO-A3-PW comes shipped fully assembled. The handle assembly is adjustable to meet an operator's individual needs. To raise or lower the height of the handle assembly, loosen both handle set-screw knobs located opposite each other on the inside of the handle frame.
  • Page 8 When the handle assembly is in the desired position, re-tighten all six (6) bolts. Verify that the bolt which secures the Capstan Drive Fitting is tight. Fill the GO-A3-PW's Lubricator with recommended oil: WORKMASTER's TOOL-LUBE ™ Air Tool Oil PN: 36-21010.
  • Page 9 Secure hose couplings with safety pins, clips, cables or chains. Each day, before opening any railcar gate, operate the GO-A3-PW, for about 1-minute. This will allow oil to coat the Gear Motor's internal components. PH: 267.350.2809...

  • Page 10: Opening Car Gates

    V. OPENING CAR GATES Roll the GO-A3-PW Opener up to the hopper gate until you "rough spot" position the opener's output drive with the railcar gate's capstan socket. Using the Capstan Swaging Kit (optional accessory, PN: 33-11120), clean-out and square-up the capstan socket on the car gate so that the Capstan Drive Fitting on the Gear Motor's output drive can be aligned properly, and fully seated in the railcar gate's capstan socket.
  • Page 11 Outriggers must be extended before operating the Opener. The reaction force produced by the Gear Motor will cause the GO-A3-PW to roll over if Outriggers are not properly extended. Outriggers must be slid back into the retracted position when Opener is not in use, eg, travel or storage.
  • Page 12 Pivot the GO-A3-PW's wheels 90º by turning the pivot wheel lever to the right. To open the railcar gate, grip the Opener's handle with both hands. Move the Throttle Lever to the desired position. PH: 267.350.2809...
  • Page 13 Throttle Lever up towards the operator. counter-clockwise rotation (operator's perspective) push the Throttle Lever down, away from the operator. The GO-A3-PW produces torque for slowly and deliberately opening railcar gates. It is not designed for rapid direction change of gears.
  • Page 14 "help" the GO-A3-PW Slide Outriggers back into the frame assembly, put pivot wheels into the straight position, and roll the GO-A3-PW back from the railcar, thereby disengaging the Capstan Drive Fitting from the railcar's capstan socket.

  • Page 15: Closing Car Gates

    VI. CLOSING CAR GATES Roll the GO-A3-PW Opener up to the hopper gate until you "rough spot" position the Opener's output drive with the Railcar Gate's Capstan Socket. Disengage the Car Gate Locking Mechanism before attempting to open the gate.
  • Page 16 Outriggers must be extended before operating the Opener. The reaction force produced by the Gear Motor will cause the GO-A3-PW to roll over if Outriggers are not properly extended. Outriggers must be slid back into the retracted position when Opener is not in use, eg, travel or storage.
  • Page 17 Pivot the GO-A3-PW's wheels 90º by turning the pivot wheel lever to the right. To close railcar gate, grip the Opener's handle with both hands. Move the Throttle Lever to the desired position. PH: 267.350.2809...
  • Page 18 clockwise rotation (operator's perspective) , pull the Throttle Lever up towards the operator. counter-clockwise rotation (operator's perspective) push the Throttle Lever down, away from the operator. PH: 267.350.2809...
  • Page 19 "Help" the GO-A3-PW Opener. Slide Outriggers back into the frame assembly, tighten the set-screw knobs, and roll the GO-A3-PW back from the railcar, thereby disengaging the Capstan Drive Fitting from the railcar's capstan socket. PH: 267.350.2809...

  • Page 20: Height Adjustment

    VII. HEIGHT ADJUSTMENT The height of the GO-A3-PW Gate Opener's Drive Shaft can be adjusted to help align the Capstan Drive Fitting with the capstan socket. By rotating the handle, centered at the top of the GO-A3-PW frame, the Drive Shaft can be more precisely aligned with the capstan socket.

  • Page 21: Maintenance & Storage

    If excess moisture is allowed to collect within the CAUTION motor, rusting may occur, and this contamination will not allow the motor to function. When not in use, the GO-A3-PW should be stored in a clean, dry and sheltered area, safely out of the way. PH: 267.350.2809...
  • Page 22 The GO-A3-PW should be maintained before being stored. IMPORTANT If the GO-A3-PW is going to be stored for an extended period of time (e.g. 60+days), it must be prepared for storage To prep the unit: Disconnect both hoses feeding the air motor Pour 12-15 drops of high detergent 30W motor oil into each open port.
  • Page 23 Failure to drain oil will cause the air motor to stall. If you have stored the GO-A3-PW for an extended period of time and have not followed the previous steps you will need to lubricate the inside of the air motor prior to start-up.

  • Page 24: Troubleshooting

    IX. TROUBLESHOOTING Symptom Corrective Action GO-A3-PW will  Muffler on control valve is clogged. Replace. not operate.  Insufficient air pressure and/or cfm. Check main source. Check regulator setting. Throttle Valve does not rotate drive fitting.  Check all hoses & push fittings. The hoses...

  • Page 25: Appendix A: Parts List

    APPENDIX A: PARTS LIST This section provides names and corresponding part numbers for the GO-A3 Adjustable-Height Railcar Gate Opener and related equipment. Please reference part numbers when ordering parts: PH: 267.350.2809...
  • Page 26 Height Adjustment Label 33-30156 Nylon Slider Bar 10-00007 Operator's Manual 75-22506 SHCS 33-20053 WM Decal GO-A3-PW 33-30169 Air Motor w/ Pinion 33-30136 Air Motor Rebuild Kit Includes: (2) Brgs, (4) Vanes, (4) Spring Pins, (2) Shims, (1) End Gasket PH: 267.350.2809...
  • Page 27 Gear Case Breakdown 77,78  Item # Part # Description 33-30100 Shell Machined (motor side) 33-A3001 Pinion 33-A3003 Slotted Spring Pin 33-30162 Bronze Bushing f/ Gear A & B 33-30105 Gear Assembly "A" 33-30106 Bearing 33-30107 Gear/Shaft Weldment "B" 33-30108 Bronze Bushing f/ Gear C 33-30109 Gear &...

  • Page 28: Appendix B: Air Preparation Kit

    APPENDIX B: AIR PREPARATION KIT The GO-A3-PW Gate Opener is shipped with a compact 3/8” Filter, Regulator, Lubricator unit. An Air Pressure Gauge (liquid-filled, 0 – 160 PSI air) threads into the Regulator. The Lubricator, a fill-under-pressure, air mist type oiler, sits alongside the Air Pressure Gauge.
  • Page 29 IMPORTANT The Lubricator is designed to provide the required lubrication to the GO-A3-PW Opener. To perform this task, however, its 2.9 oz polycarbonate bowl must be kept filled with air motor oil, and the rate of oil flow must be controlled. The Lubricator has a transparent sight dome for 360°...
  • Page 30 (b) product or atmosphere contamination. Regularly check the Lubricator's oil level. Use only a recommended air motor oil high- (eg, WORKMASTER TOOL LUBE™ Air Motor Oil), or a grade air motor oil. The oil delivery rate increases linearly with...

  • Page 31: Appendix C: Specifications

    APPENDIX C: SPECIFICATIONS Model: GO-A3-PW Pivot Wheel Gate Opener Power: Pneumatic; Requires 18.5 CFM @ 90 PSI Working Torque: 2,700 ft lbs constant at 8.5 RPM 10.5" Dia. with 4.10 / 3.50 – 4", pneumatic, tubeless Wheel Assembly: tires, sawtooth treads Frame Dimensions: 42"...

  • Page 32: Dimensions

    APPENDIX C: DIMENSIONS PH: 267.350.2809...

  • Page 33: Appendix D: Air Supply Piping

    APPENDIX D: AIR SUPPLY PIPING Use the Table below as a guide for sizing the airlines routed to your Gate Opener. Recommended Pipe Size for Compressed Air Flow to 125 PSI Pipe Length – feet (') Volume Nominal Pipe Diameter – inches (") 100' 150' 200'...
  • Page 34 NOTES PH: 267.350.2809...
  • Page 35 NOTES PH: 267.350.2809...
  • Page 36 Capstan Barrel is a problem. When the Barrel’s female square is rounded-off, it resists any effort to get a grip with a Gate Opener Drive Fitting. WORKMASTER offers two solutions to the problem: • Capstan Renew Attachment (PN: 80-10728) •...
