Figure 4 Pivot Pull Switch Label - WORKMASTER GO-A8-PW Operator's Manual

10. PIVOT PULL SWITCH
The Pivot Pull Switch is a pneumatic actuated valve that controls the
movement of the GO-A8-PW's wheels and Height Adjustment Forks. When
the Switch is in the PIVOT position, the wheels will rotate so that they are
parallel to the railcar. When the Pull Switch is in the STRAIGHT position, the
wheels will move perpendicular to the railcar. A label located on the Pivot
Guard, See Figure 4, shows the Pivot Pull Switch position for the desired
wheel movement.

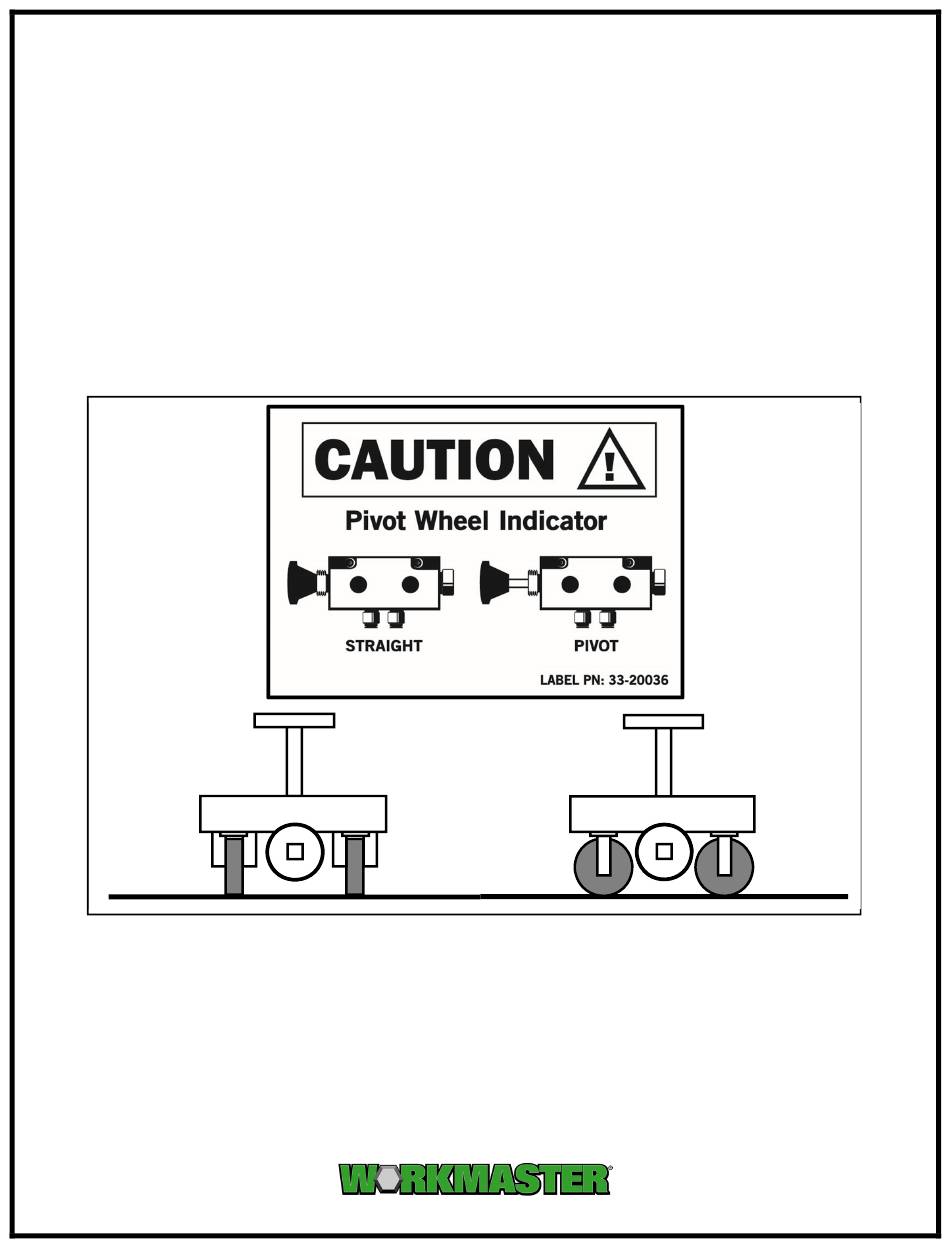

Figure 4: Pivot Pull Switch Label
11. THROTTLE VALVE
The Throttle Valve is a self-closing, lever-operated valve that is attached to
the right hand side of the frame on the Handle Assembly. The Throttle Valve
has a spring loaded lever, which shuts off air to the Impactor as soon as the
throttle is released. Only when the Throttle Lever is depressed will the
Impactor be activated.
