WORKMASTER GO-A8-PW Operator's Manual

Hide thumbs Also See for GO-A8-PW:
Table of Contents

Advertisement

Quick Links

Download this manual
GO-A8-PW Gate Opener
OPERATOR's GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GO-A8-PW and is the answer not in the manual?

Questions and answers

Related Manuals for WORKMASTER GO-A8-PW

Summary of Contents for WORKMASTER GO-A8-PW

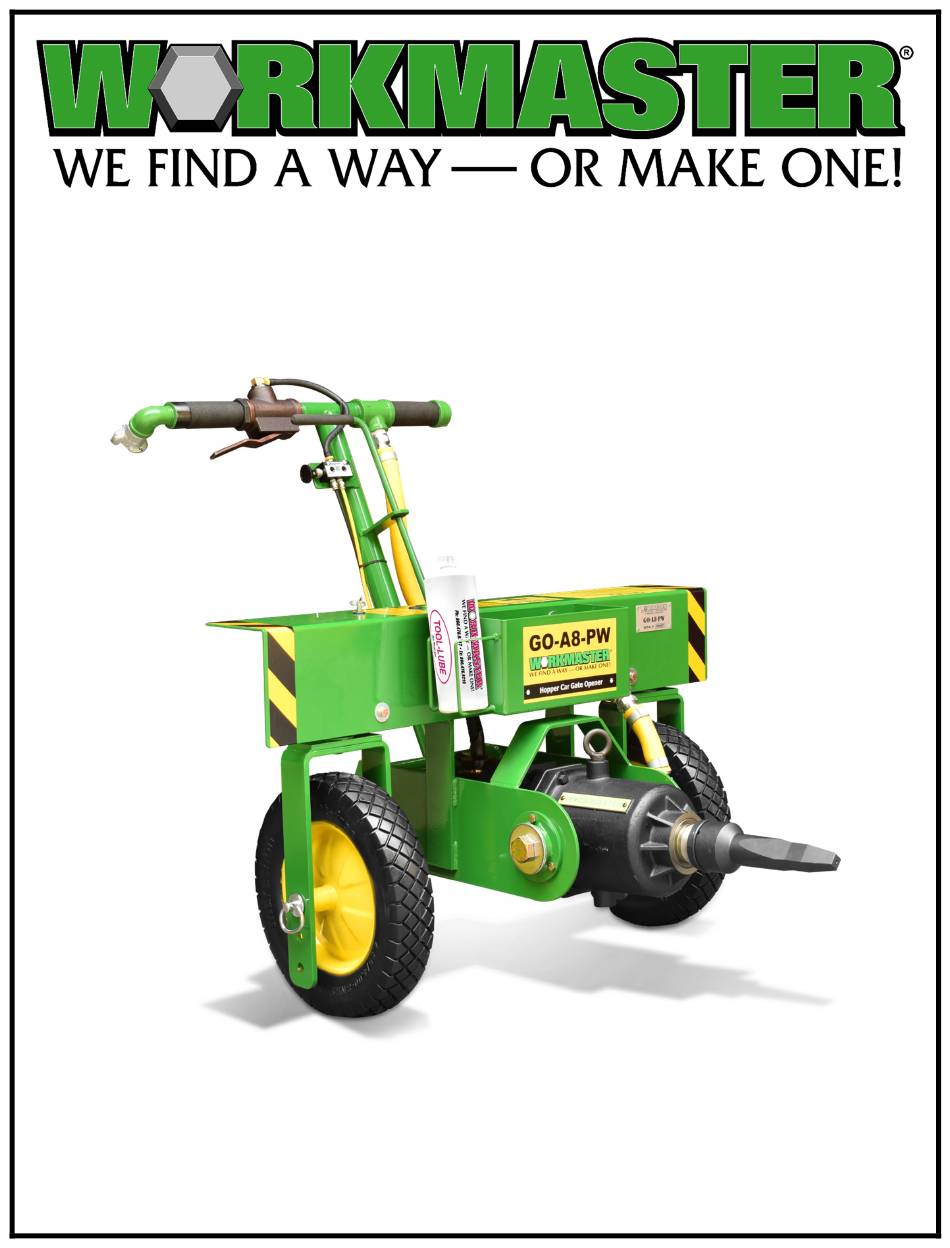

  • Page 1 GO-A8-PW Gate Opener OPERATOR's GUIDE...
  • Page 2 The user of this product is responsible to install, maintain and operate the product and parts or components manufactured or supplied by WORKMASTER in such a manner as to comply with all federal, state and local rules, ordinances, regulations and laws, including the Williams-Steiger Occupational Safety Act, and the American National Standards Institute Safety Code.
  • Page 3 SYMBOLS The following symbols are found throughout this Operator's Guide to alert the reader to the relative danger that may result from non-observance. This indicates a situation in which a hazard is imminent and will result in a high probability of serious injury or death.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE Introduction Safety III. Required Materials Specifications and Components Air Requirements Pre-Start Check List VII. Compressed Air Treatment VIII. Opening Car Gates Closing Car Gates Height Adjustment Storage XII. Accessories Appendix A Troubleshooting Appendix B Compressed Air System Appendix C Air Supply Piping PH: 866.476.9217...
  • Page 5 LIST OF FIGURES FIGURE PAGE Figure 1 Component Layout Figure 2 Forward/Reverse Label Figure 3 Locking Pin Label Figure 4 Pivot Pull Switch Label Figure 5 Filter / Regulator / Lubricator (FRL) Air Control Figure 6 Venturi Section of Lubricator Figure 7 Height Adjustment Label LIST OF TABLES TABLE...

  • Page 6: Introduction

    This Operation Manual details the specifications, operation, maintenance and safe use of the GO-A8-PW Pneumatic Hopper Car Gate Opener. Experience has shown that the GO-A8-PW Opener will open the most difficult car gates. However, the same experience demonstrates that total satisfaction in use depends on attention to detail in operating and maintaining the unit.

  • Page 7: Safety

    Standards before installation or maintenance. III. REQUIRED MATERIALS The following items are not supplied with your WORKMASTER Gate Opener but are necessary for its proper installation and operation. CLEAN and DRY compressed air capable of supplying 114 CFM @ 85 PSI High-quality air hose: 1"...

  • Page 8: Specifications And Components

    IV. SPECIFICATIONS AND COMPONENTS To operate the GO-A8-PW effectively the user should be familiar with each of the Gate Opener's components. See Figure 1 for a Component layout, and the separate WORKMASTER GO-A8-PW Gate Opener Maintenance & Parts Manual (PN: 10-00067).

  • Page 9: Figure 1 Component Layout

    Figure 1: Component Layout (See pg 5 - 8 for details) PH: 866.476.9217...

  • Page 10: Figure 2 Forward/Reverse Label

    The air inlet is a 1" NPT opening with a full-port, Universal (Chicago type) Coupling. The Coupling supplied is the recommended fitting for the GO-A8-PW. Replacing the Coupling with a quick-connect type plug will restrict air flow to the Impactor.
  • Page 11 TOOL BOX The Tool Box, bolted to the front face of the Pivot Guard, provides easy access storage for essential GO-A8-PW accessories. When not being used, the Drive Fitting, Swage Tool and Anvil Extensions should be stored in the Tool Box, and not on the Impactor's square drive.

  • Page 12: Figure 3 Locking Pin Label

    The Pin should be reinserted into the correct pinhole on the Pivot Guard when the wheels are in the desired position. A label located on the Pivot Guard, See Figure 3, shows which pin hole is used to lock the GO-A8-PW's wheels in the desired position.

  • Page 13: Figure 4 Pivot Pull Switch Label

    PIVOT PULL SWITCH The Pivot Pull Switch is a pneumatic actuated valve that controls the movement of the GO-A8-PW's wheels and Height Adjustment Forks. When the Switch is in the PIVOT position, the wheels will rotate so that they are parallel to the railcar.

  • Page 14: Air Requirements

    GO-A8-PW Opener. Low or inadequate air pressure at the opener is costly and wasteful. An insufficient air volume will not allow the GO-A8-PW Opener to operate effectively. IMPORTANT Air Pressure of 85 to 90 PSI is recommended for maximum performance. This...

  • Page 15: Pre-Start Check List

    Secure hose couplings with safety pins, clips, cables or chains. Each day, before opening any car gates, operate the GO-A8-PW, free- speed, for about 5-minutes. This will allow oil to coat the Impactor's internal components.

  • Page 16: Compressed Air Treatment

    VII. COMPRESSED AIR TREATMENT The GO-A8-PW Hopper Car Gate Opener is designed to operate with a clean, dry air supply at the required pressure (85 to 90-PSI) and air volume (114 CFM). Dirty and wet air will result in sluggish operation, more frequent repair and replacement of parts due to sticking, jamming and rusting of wearing parts.
  • Page 17 FILTER: Designed to operate at 250 PSI max pressure and in a temperature range of 40°F to 200°F. Filtering out of dirt and foreign particles, and the separation of moisture is automatic with air flow. There are no moving parts and no adjustments are necessary.
  • Page 18 IMPORTANT For cold weather operation, such as winter conditions (below 40° F), when the GO-A8-PW is used outdoors or in an un-heated service area, the Lubricator should be filled with a Winter Grade Air Tool Oil (PN: 40007).

  • Page 19: Figure 6 Venturi Section Of Lubricator

    4. Reattach Bowl using Ring Nut, be sure O-ring Seal is correctly set in Lubricator headgroove. Tighten Bowl Ring Nut by hand. (Reassemble carefully to avoid stripping and cross threading.) For Food Service applications you must use a high-quality Food Grade Air Tool Oil. Contact your WORKMASTER Distributor for product recommendation. IMPORTANT PH: 866.476.9217...

  • Page 20: Opening Car Gates

    VIII. OPENING CAR GATES Roll the GO-A8-PW Opener up to the hopper gate until you "rough spot" position the Opener's output drive with the Railcar Gate's Capstan Socket. Using the CAPSTAN SWAGE TOOL (optional accessory, PN: 33-11120), clean-out and square-up the Capstan Socket on the Car Gate so that the CAPSTAN DRIVE FITTING on the Impactor's Output Drive can be aligned properly, and fully seated in the Railcar Gate's Capstan Socket.
  • Page 21 CAUTION If the Car Gate will not move, STOP using the GO-A8-PW Opener and notify your supervisor, continued impacting will destroy the Gate. Do not use other opening devices (pry bars, multipliers, etc.) in an attempt to "Help"...
  • Page 22 Tires to rotate perpendicular to the Railcar. Secure the Pivot Locking Pin in the Straight lock pin hole. Roll the GO-A8-PW Opener away from the Railcar disengaging the CAPSTAN DRIVE FITTING from the Railcar's Capstan Socket. PH: 866.476.9217...

  • Page 23: Closing Car Gates

    IX. CLOSING CAR GATES Roll the GO-A8-PW Opener up to the hopper gate until you "rough spot" position the Opener's output drive with the Railcar Gate's Capstan Socket. Re-examine the Capstan Socket. Look for rounded edges, spalling or mushrooming. If needed, re-use the Swage Tool to square-up the Socket.
  • Page 24 If the Car Gate will not move, STOP using the GO-A8-PW Opener and notify your supervisor. Do not use other opening devices (pry bars, multipliers, etc.) in an attempt to "Help" the GO-A8-PW Opener. Once the car gate is fully closed pull the Pivot Locking Pin from the Pivot Lock Pin hole and push/pull the Pivot Pull Switch to the Straight position.

  • Page 25: Height Adjustment

    X. HEIGHT ADJUSTMENT The height of the Gate Opener’s Drive Shaft can be adjusted to help align the Drive Fitting with the Capstan. By repositioning the wheel axle pins, the Impactor can be raised or lowered up to 4”. To Adjust the height: Pivot the wheels to the Straight position (parallel with Impactor).

  • Page 26: Storage

    XI. STORAGE When not in use the GO-A8-PW should be stored in a clean, dry & sheltered area, safely out of the way. If a sheltered area is not available and/or not practical, WORKMASTER's water-proof, puncture and tear resistant Protective Cover will provide excellent protection from both the elements and unloading site debris.

  • Page 27: Accessories

    XII. ACCESSORIES This Section describes the accessories available from WORKMASTER. The attachments and lubrication products are those that we recommend the Customer purchase based upon our specialized knowledge of and experience with the Opener and the parts required or in similar applications. Maintaining an inventory of the recommended lubricant, attachments, and accessories will significantly improve job site safety, increase the Opener’s productivity, and reduce maintenance costs and down...
  • Page 28 If your unloading site sees a variety of railcars and RET-RING CONNECTOR you‘re constantly changing the accessories on your Gate Opener, you'll need WORKMASTER's Pin & Ring Connectors to help keep the job moving. The Pin is hardened steel, the Ring is nick-resistant rubber, and together they make changing from your 12"...
  • Page 29 PART#: 32-50001 Stop water and dirt from entering your Gate Opener FILTER / DRYER with WORKMASTER’s Filter/Dryer Assembly. This unique accessory incorporates patented inverse flow technology and is engineered specifically to remove condensed liquids and dirt from the airlines feeding your Gate Opener or Pocket Vibrator.
  • Page 30 Special emulsifiers allow this unique oil to absorb 10% of its weight in water preventing the formation of rust, gum and sludge. With regular use of WORKMASTER's TOOL-LUBE you can expect your pneumatic Gate Opener to operate with greater consistency, reduced noise levels, and at its highest performance level.

  • Page 31: Appendix A Troubleshooting

    1. Check for excess grease by rotating Square Drive by hand. It should turn freely. Excess grease is usually expelled automatically. 2. Disassembly is required for greasing. (See GO-A8-PW MAINTENANCE & PARTS MANUAL: Disassembly Instructions). Gate Opener will not shut-off.

  • Page 32: Appendix B Compressed Air System

    (1) sluggish operation; (2) oil laden exhaust air which causes: (a) back- pressure due to clogged mufflers; (b) product or atmosphere contamination. Regularly check Lubricator's oil level. Use only a WORKMASTER recommended oil (eg, high-grade WORKMASTER's TOOL-LUBE Air Tool Oil PN: 36-21010), or a motor oil.

  • Page 33: Appendix C Air Supply Piping

    APPENDIX C: AIR SUPPLY PIPING Use the Table below as a guide for sizing the airlines routed to your Gate Opener. Recommended Pipe Size for Compressed Air Flow to 125 PSI Pipe Length – feet (') Volume Nominal Pipe Diameter – inches (") 100' 150' 200'...
  • Page 34 NOTES PH: 866.476.9217...
  • Page 35 NOTES PH: 866.476.9217...
  • Page 36 Pocket Vibrator Opening a hopper car gate presents one set of problems, getting material to flow from the car presents an entirely different problem. But it is no problem with the WORKMASTER air Rail-Shaker driven wedge-mount pocket vibrator. The assembly's wedge-...
