Figure 2 Forward/Reverse Label - WORKMASTER GO-A8-PW Operator's Manual

COMPONENT LAYOUT DESCRIPTIONS
1. AIR INLET
The air inlet is a 1" NPT opening with a full-port, Universal (Chicago type)
Coupling. The Coupling supplied is the recommended fitting for the
GO-A8-PW. Replacing the Coupling with a quick-connect type plug will
restrict air flow to the Impactor.
2. FORWARD/REVERSE LEVER (F/R Lever)
The F/R Lever is a steel rod attached to a swivel joint providing a universal
type pivoting action. The rod, painted with enamel, has a rubber, slip-on grip
for control comfort. The F/R Lever controls the direction of rotation of the
Impactor's square drive anvil. A decal located on the Pivot Guard (Item 9)
shows the position for clockwise anvil rotation (3 O'clock position), and for
counterclockwise anvil rotation (11 O'clock position). A label attached to the
Pivot Guard, See Figure 2, shows these handle positions.

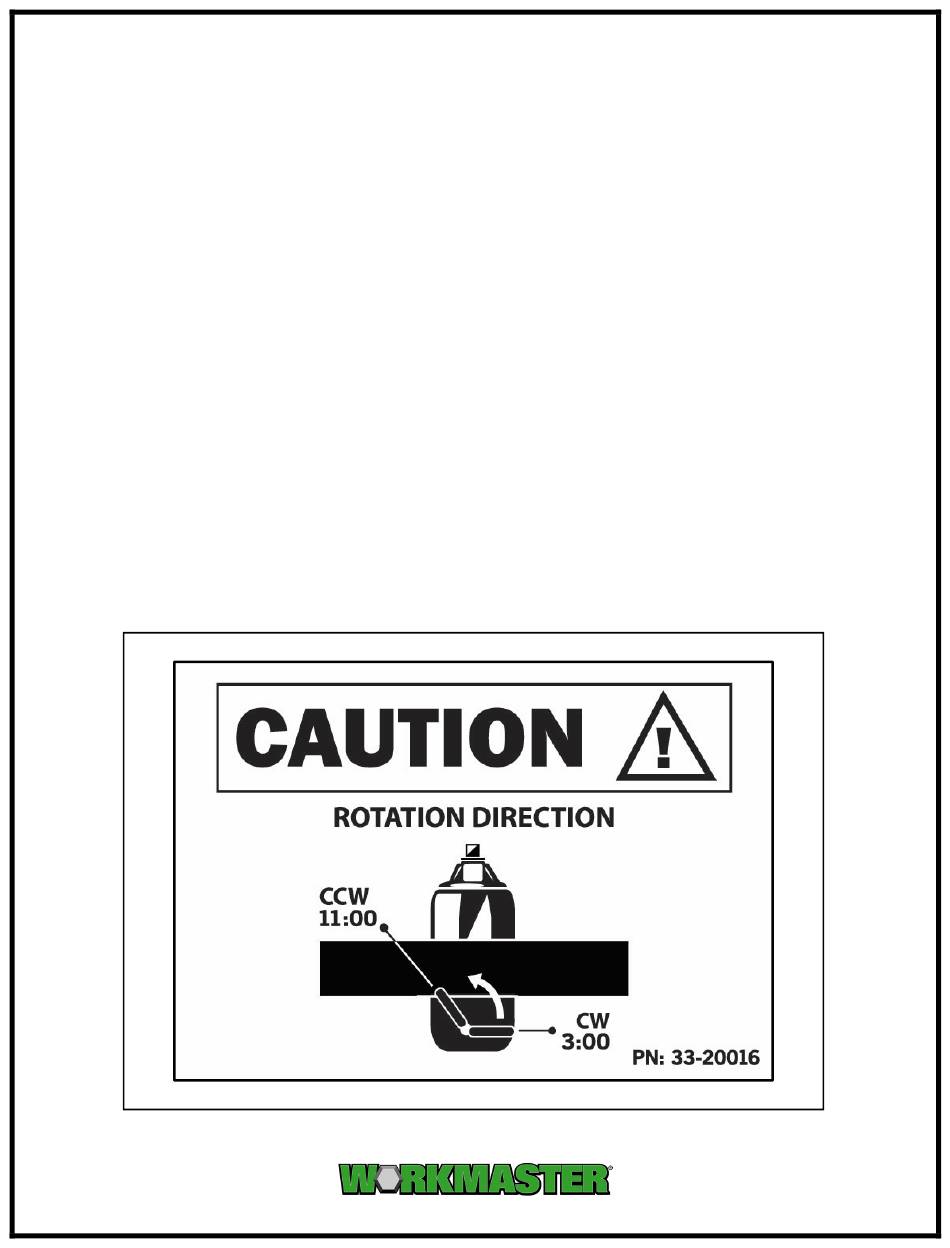

Figure 2: Forward/Reverse Label
(See Figure 1, pg 4)
