X. HEIGHT ADJUSTMENT
The height of the Gate Opener's Drive Shaft can be adjusted to help align the Drive
Fitting with the Capstan. By repositioning the wheel axle pins, the Impactor can be
raised or lowered up to 4".
To Adjust the height:
1. Pivot the wheels to the Straight position (parallel with Impactor).
2. Disconnect the air supply line to the Gate Opener.
3. Tilt the Opener back onto the Foot Bar.
4. Remove the Locking Clips from both Wheel Axle Pins.
5. Remove Axle pins and move Wheels to the desired height. See Figure 7, for
Height Adjustment Specifications.

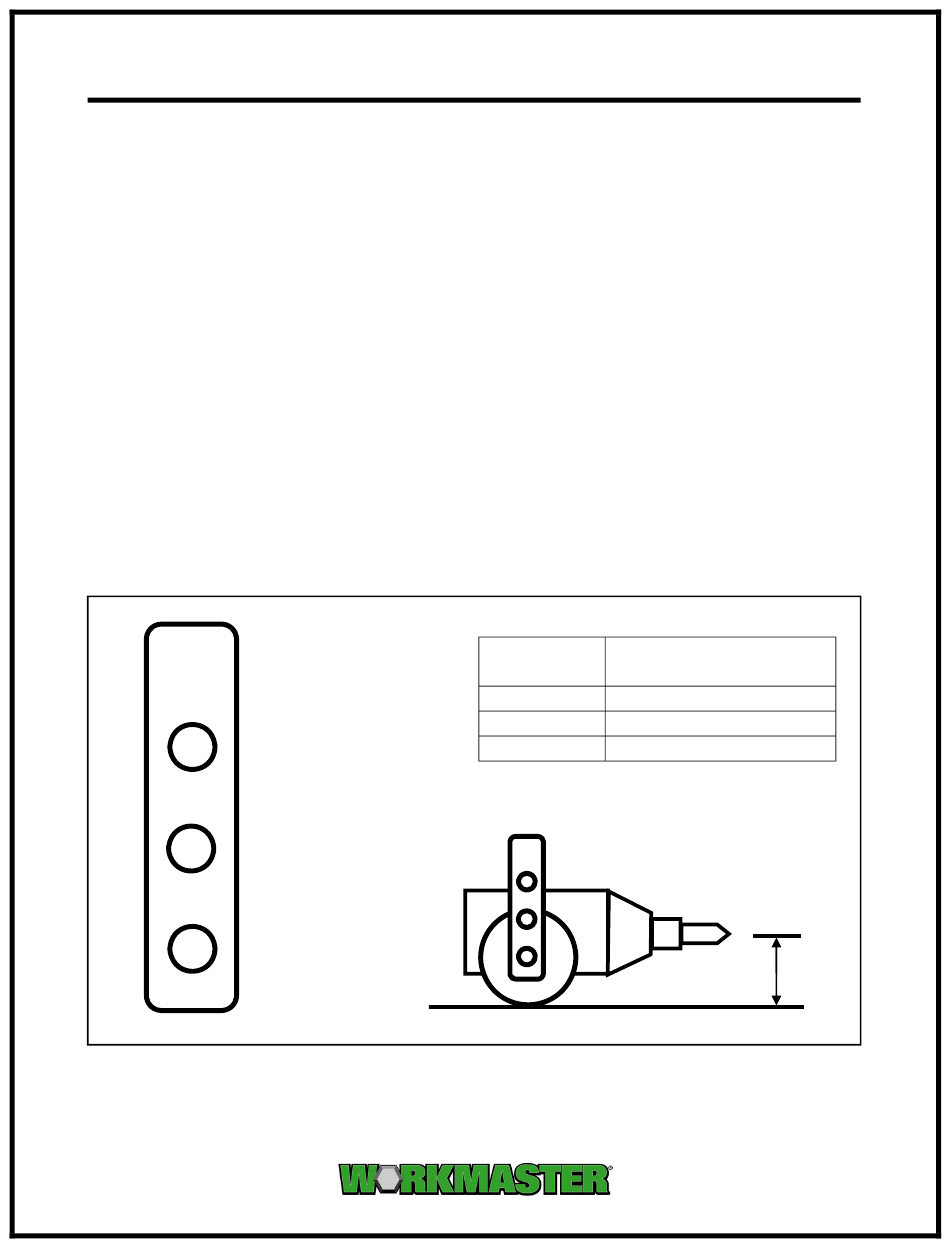

Figure 7: Height Adjustment Specifications
A
B
C
6. Replace Axle Pins and Locking Clips.
AXLE
HOLE
A
B
C
*GO-A8 is shipped from the factory in the A (low) position.
PH: 866.476.9217
DISTANCE TO
GROUND (X)
10.5"
12.5"
14.5"
X
