I Mounting the transceiver

The universal mounting bracket supplied with your transceiver
allows overhead or dashboard mounting. Please read the fol-
lowing instructions carefully.
• Mount the transceiver securely with the 2 supplied screws
(M5 × 20) to a surface which is more than 10 mm thick and
can support more than 5 kg.
• Mount the transceiver so that the face of the transceiver is at
90° to your line of sight when operating it.
CAUTION:
KEEP the transceiver and microphone at
least 1 meter away from your vessel's magnetic naviga-
tion compass.
NOTE: Check the installation angle; the function display
may not be easy to read at some angles.
CONNECTIONS AND MAINTENANCE

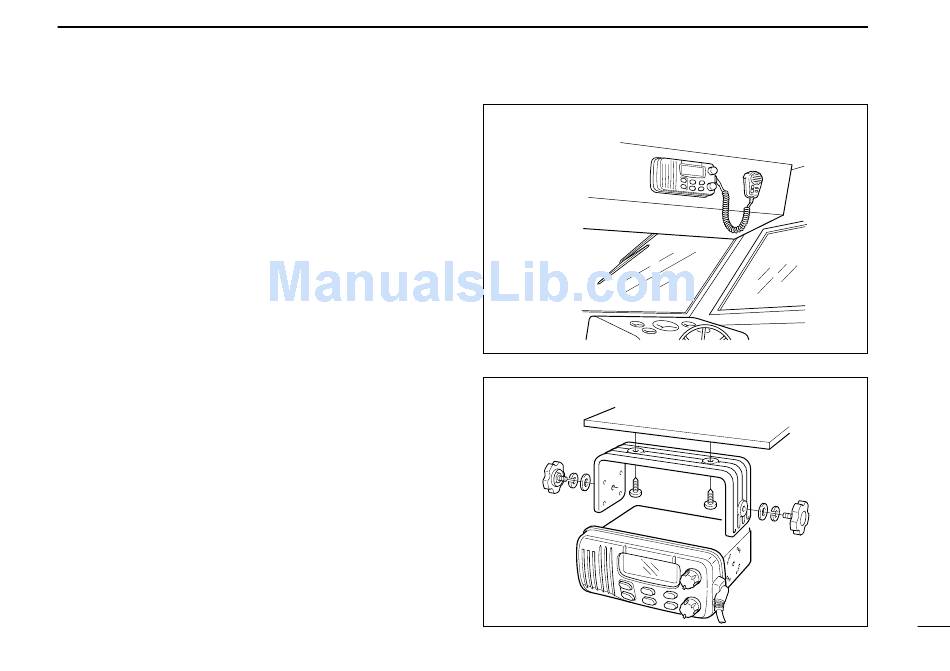

DASHBOARD MOUNTING (with optional MB-69)
