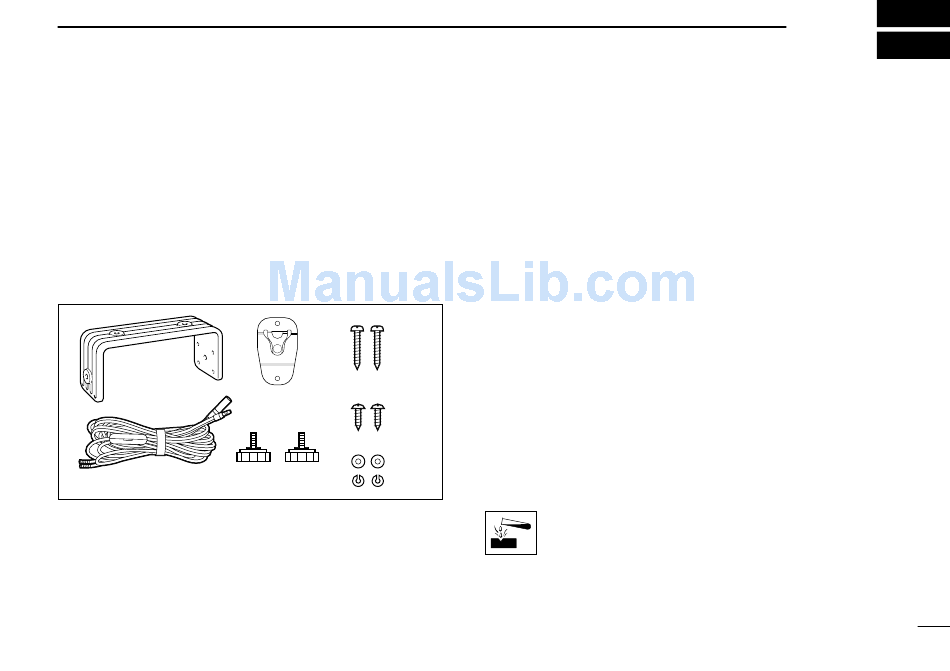

I Unpacking

➀
Mounting bracket ............................................................ 1
➁
DC power cable (OPC-891) ............................................ 1
➂
Microphone hanger ......................................................... 1
➃
Mounting bracket knobs .................................................. 2
➄
Mounting screws (5 × 20) ................................................ 2
➅
Mic hanger screws (3 × 16) ............................................. 2
➆
Flat washers (M5) ........................................................... 2
➇
Spring washers (M5) ....................................................... 2
➀
➁

CONNECTIONS AND MAINTENANCE

➄
➂
➅
➆
➃ ➇

I Antenna

A key element in the performance of any communication sys-
tem is an antenna. Ask your Dealer about antennas and the
best places to mount them.

I Fuse replacement

Two fuses are installed in the supplied DC power cable. If a
fuse blows or the transceiver stops functioning, track down
the source of the problem, if possible, and replace the dam-
aged fuse with a new, rated one.
☛ Fuse rating: 10 A

I Cleaning

If the transceiver becomes dusty or dirty, wipe it clean with a
dry, soft cloth.
AVOID the use of solvents such as benzene or al-
cohol, as they may damage transceiver surfaces.
