3
BASIC OPERATION

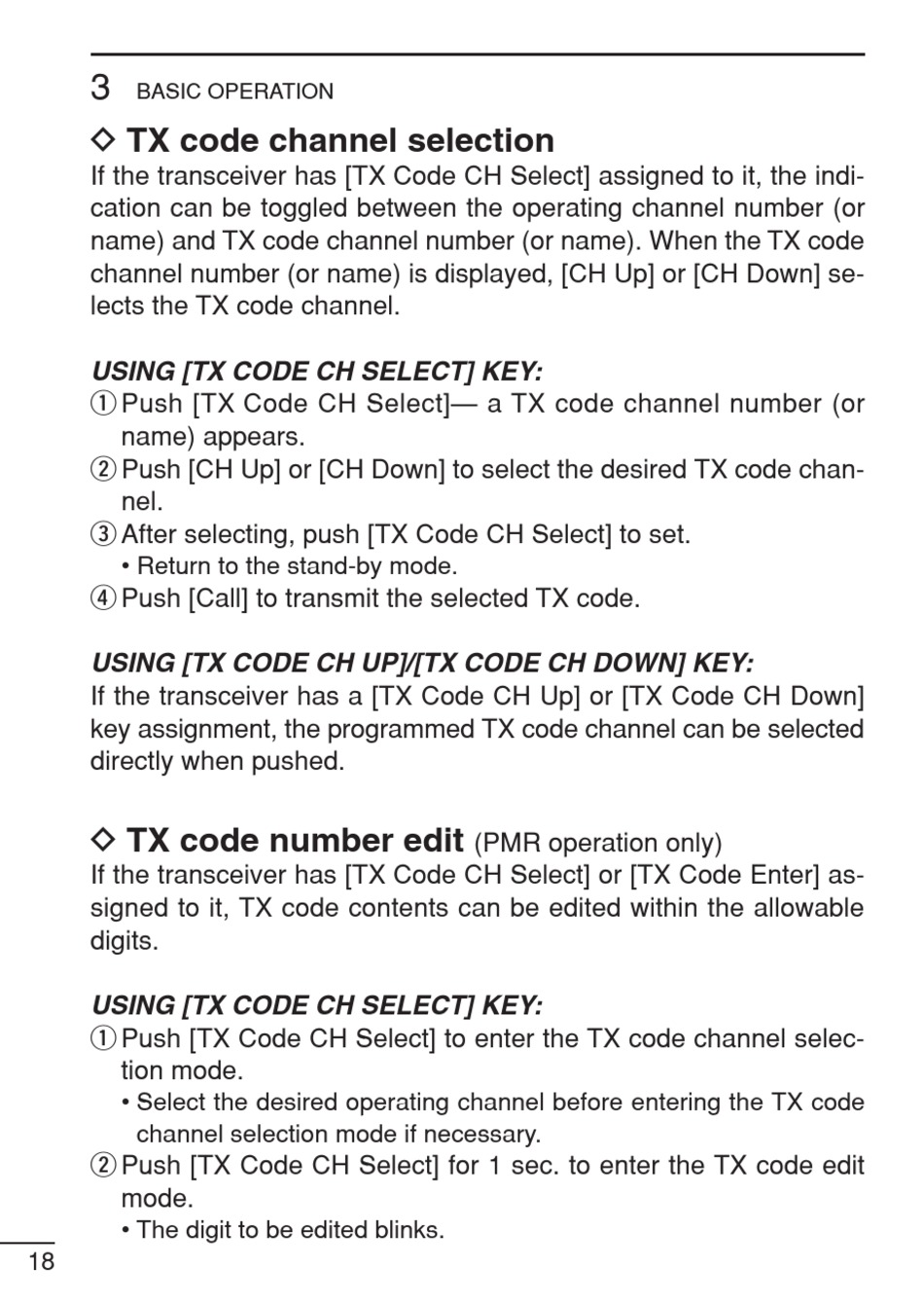

D TX code channel selection

If the transceiver has [TX Code CH Select] assigned to it, the indi-
cation can be toggled between the operating channel number (or
name) and TX code channel number (or name). When the TX code
channel number (or name) is displayed, [CH Up] or [CH Down] se-
lects the TX code channel.
USING [TX CODE CH SELECT] KEY:
q Push [TX Code CH Select]— a TX code channel number (or
name) appears.
w Push [CH Up] or [CH Down] to select the desired TX code chan-
nel.
e After selecting, push [TX Code CH Select] to set.
• Return to the stand-by mode.
r Push [Call] to transmit the selected TX code.
USING [TX CODE CH UP]/[TX CODE CH DOWN] KEY:
If the transceiver has a [TX Code CH Up] or [TX Code CH Down]
key assignment, the programmed TX code channel can be selected
directly when pushed.
D TX code number edit
If the transceiver has [TX Code CH Select] or [TX Code Enter] as-
signed to it, TX code contents can be edited within the allowable
digits.
USING [TX CODE CH SELECT] KEY:
q Push [TX Code CH Select] to enter the TX code channel selec-
tion mode.
• Select the desired operating channel before entering the TX code
channel selection mode if necessary.
w Push [TX Code CH Select] for 1 sec. to enter the TX code edit
mode.
• The digit to be edited blinks.
18
(PMR operation only)
