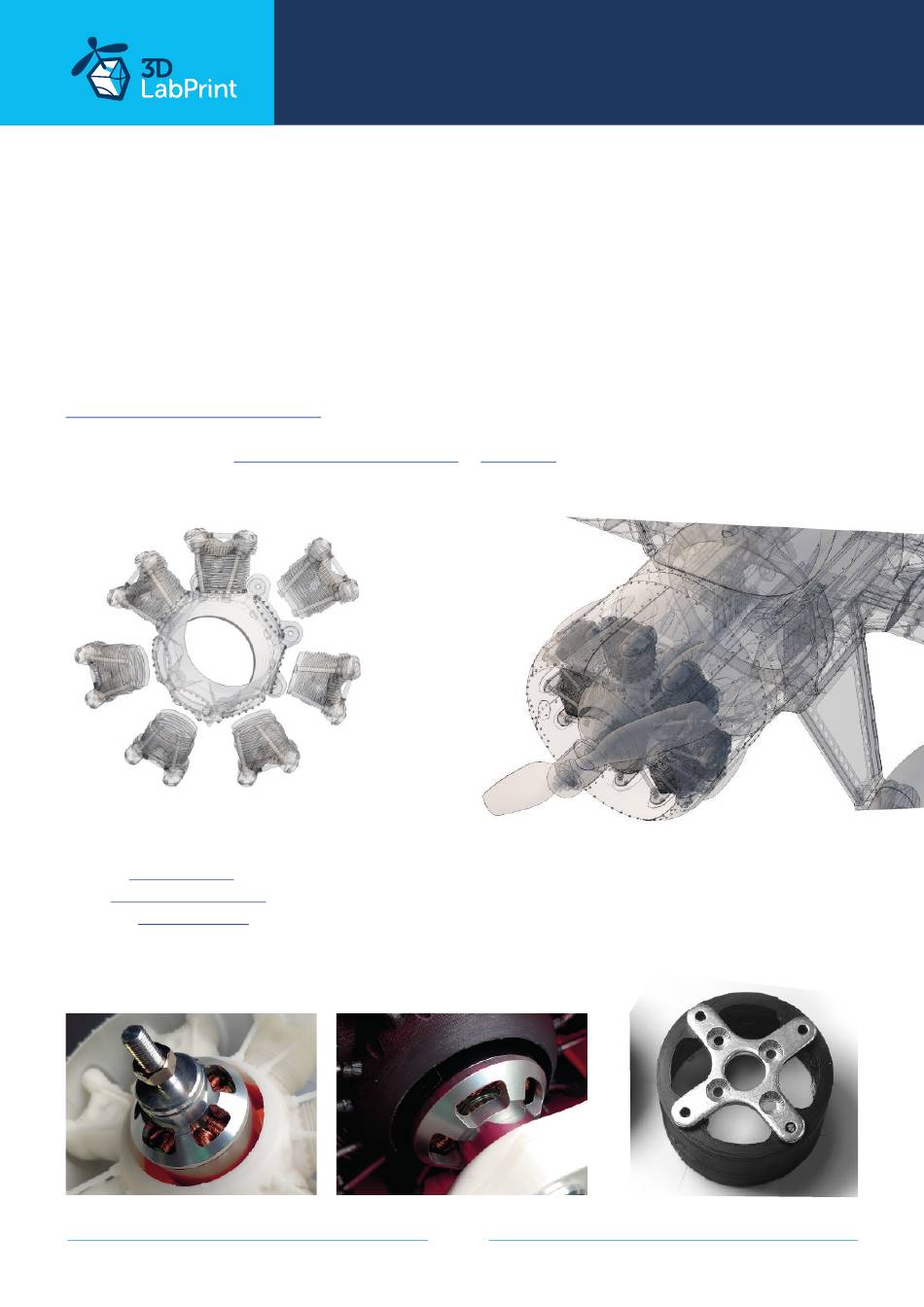

7.2 Fuselage - motor mount & ESC & battery holder
The scale engine replica must be mounted in a certain position marked with TOP mark.
Assemble the printed motor mount (16 x 19 mm) with motor, propeller. Mount the motor
using 4x M3 screws and nuts to the printed universal motor holder. For long motors you can
flip the holder to the front (as at picture). The whole set push to the fuselage, check the gap
between fuselage cowl and propeller. Simply glue it from back side. Glue universal motor
mount with motor into the fuselage in right position. Fix the battery (400g+ pack needed) by
velcro tape and mount it in the front of the fuselage, find the perfect balance and CG position
by moving it.
See video guide Motor Mount
you will need: CA Glue medium viscosity
4x M3 screws and nuts
7x self tapping screws 3.5/15mm
WACO setup - (1000W)
Motor: 5055 430KV , or any 5055 430 - 380grams motor (for 6s setup)
ESC: 80A 6s with UBEC
Battery: 3300mAh 6S
Propeller: wooden 15"x8", 14"x8"
printed PLA or PETG mount 16 x 19 mm
or any 6s 60-100A + conector suitable for battery.
or any 6s (500-600g)
... print your plane | www.3DLabPrint.com
+ activator
20
page
motor mount
25g/0.88oz
PLA or PETG
