3D LabPrint WACO YMF-5 User Manual page 14

5. Assembly of printed parts

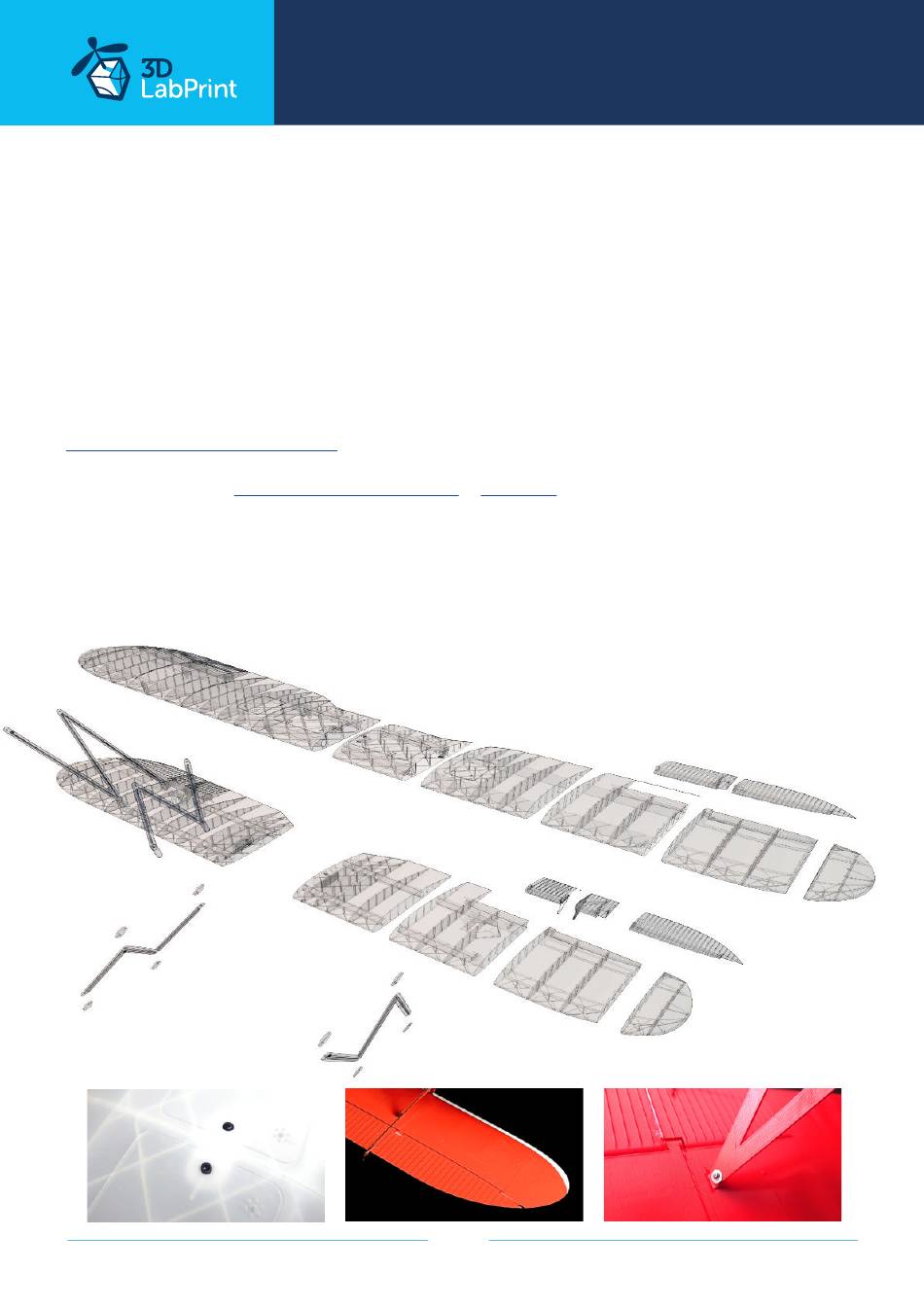

5.1 Wing assembly WACO YMF-5
Glue wing parts L1-L5 perfectly together. The new 3DLabPrint joint system will help you.
Repeat for the right side. Repeat it for bottom wing the same. Use the thin CA glue, and use
activator to speed up the glue curing. On a flat surface glue the ailerons L1-L3 and repeat for
the right side. Use a suitable 1,2 mm - 1,5 mm carbon rod or wire as a hinge for the ailerons.
Wings are fitted on 10 mm diameter carbon fibre tubes, top wing 2x 780 mm, bottom wing
2x 610 mm. Press M3 nuts into the top wing safety pin and fit them to the wings in a right
position. Glue the pins after you check the proper alignment.
See video guide Wing Assembly
you will need:
R wing
completed
wing bottom 1
fuselage strut R
11g/0.37oz
wing pins
3g/0.11oz
CA Glue medium viscosity
1,2 - 1,5 mm carbon, fiberglass or steel wire for aileron hinge
2pcs of 10 mm carbon tube 780 mm (upper wing)
2pcs of 10 mm carbon tube 610 mm (bottom wing)
3x M3 nut, 3x M3x20 screw + 2mm self screw
Snap knife, Some cloth for wiping CA glue...
wing upper L1
56g/1.98oz
72g/2.54oz
wing bottom L2
52g/1.83oz
fuselage strut L
11g/0.37oz
... print your plane | www.3DLabPrint.com
+ activator
wing upper L2
69g/2.43oz
wing upper L3
48g/1.69oz
aileron bottom L1
7g/0.25oz
aileron bottom L2
7g/0.25oz
wing bottom L3
42g/1.48oz
wing bottom L4
14
page
aileron upper L1
13g/0.46oz
aileron upper L2
wing upper L4
0,5g/0.01oz LW
wing upper L5
13g/0.46oz
aileron bottom L3
15g/0.53oz
13g/0.46oz
15g/0.53oz
