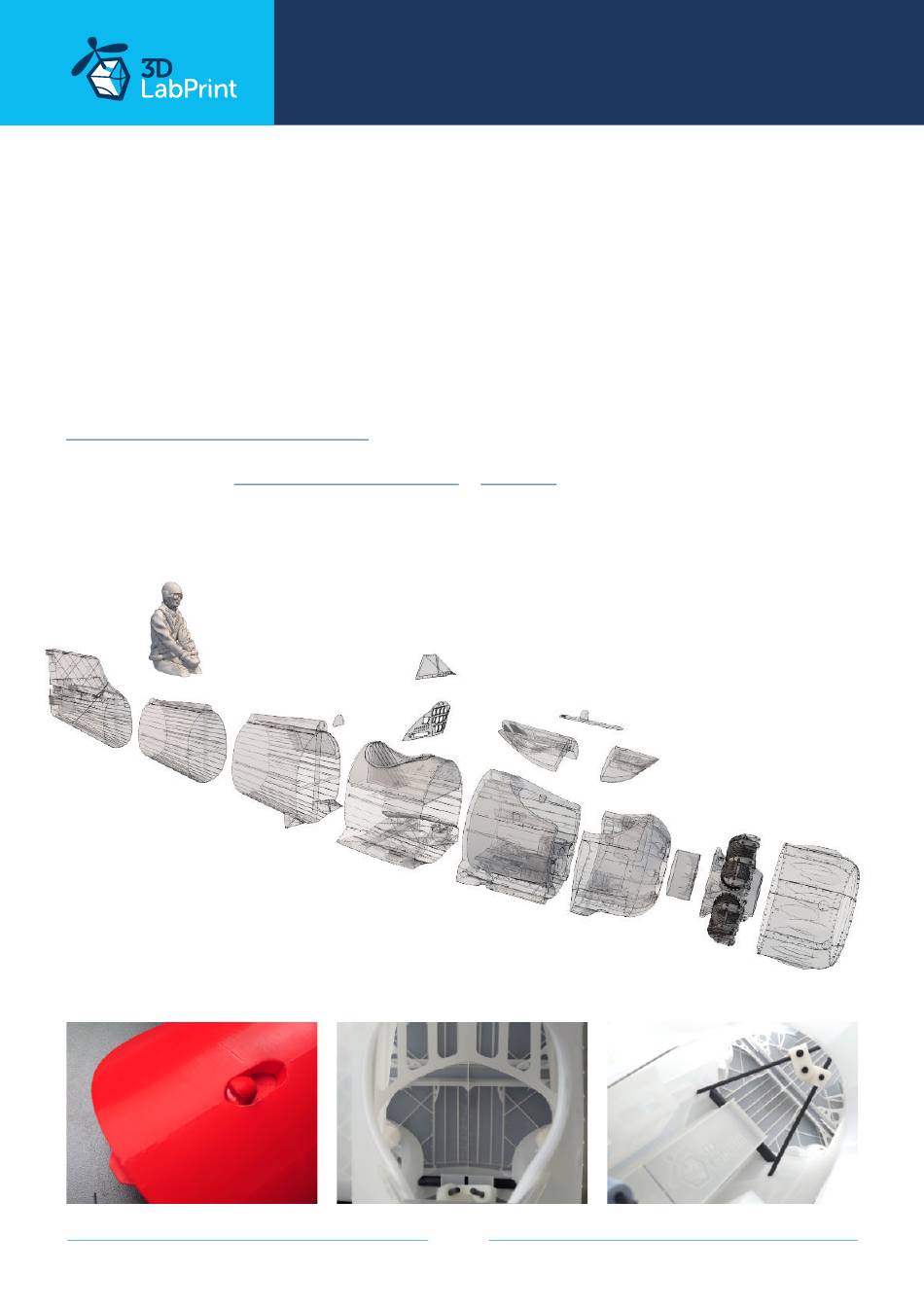

5.2.1 Fuselage assembly WACO YMF-5
You can use snap knife for cleaning the surface of printed parts, but mostly it is not necessary.
Glue fuselage parts F1-F6 with thin CA glue together. The new 3DLabPrint joint system will
help you. Check the perpendicularity of part F6 to the wing mounting carbon tube in the
parts F2 and F3 before gluing.
For fuselage cover lock use a ball pen spring. Put it to the part 2 and glue with part 1 together.
Assemble the scale engine replica. Slide a cowling onto cylinders and glue the assembly. The
scale engine replica is fitted with M4x20 bolts and nuts. Fit the optional scale accessories,
such as seat, headrest, instrument panel, windshield, pilot, ...
See video guide Fuselage Assembly
you will need:
pilot
9g/0.35oz LW
F6
73g/2.57oz
F5
55g/1.94oz
fuselage cover with installed lock
CA Glue medium viscosity
Snap knife or Sandpaper
1x ball pen spring
wind shield
4g/0.14oz
headrest
3g/0.10oz LW
F4
78g/2.75oz
F3
119g/4.2oz
... print your plane | www.3DLabPrint.com
+ activator
fuselage cover lock
instrument panel
4g/0.14oz
fuselage cover 2
22g/0.78oz
F2
138g/4.87oz
F1
124g/4.37oz
15
page
4g/0,14oz
fuselage cover 1
13g/0.46oz
fuselage engine
motor mount
25g/0.88oz
engine case
75g/2.65oz
engine valves
80g/2.82oz
cowl
55g/1.94oz
